Brand : Generic (Imported)

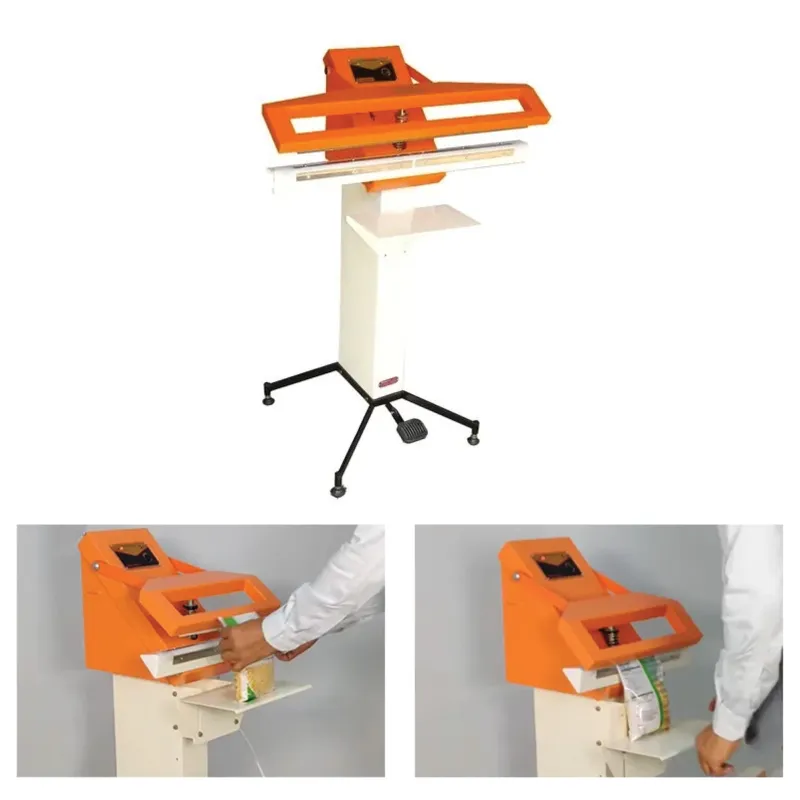

20" inch Hot Bar Type Foot Sealer - 600W with 1 Year warranty
SKU : SJ-TT-20211582
MRP : ₹29000
₹21710
25% OFF!
Get Extra ₹326 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Show Similar
Notify Me
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Hot Bar Type Pedal or Foot Sealing Machine 600W
Sealing Length 500 mm (20")
1 year manufacturer warranty
For all thermoplastic pouches in the food, pharmaceutical & manufacturing sectors.

Country of origin: India
Specification
  • Brand: Generic (Imported)
  • Weight (Approx.) : 25 kg
  • Model : 500 PH
  • Sealing Length : 20 Inch (500 mm)
  • Sealing Width : 12 x 5 mm
  • Power : 600 Watt
  • Voltage : 230 V
  • Heater : Tubular Heater
  • Automation Grade : Manual
  • Weight : 25 kg (Approx.)

Warranty :
  • 1 year manufacturer warranty.

Note :
  • This warranty does not cover damages due to accident, mishandling/negligence.
  • Heating element, fiber fabric/tape, chipping/peeling of paint/enamel, denting of body part are also not come under warranty.

Toolsvilla deals in various types of Packaging Machinery. A wide range of Foot/Pedal Sealing Machines are heat sealing machine used to seal all different types of packaging, from polyethylene and polypropylene bags to thermoplastic packaging.
Description
This 20” inch Hot Bar Type Foot Sealer is a specialized sealing machine designed for packaging applications that require the sealing of plastic bags or films. This type of sealer operates using a hot bar mechanism, which applies heat to create a seal along the length of the bag. The “20-inch” designation refers to the length of the sealing bar, indicating that it can effectively seal bags up to 20 inches wide.

Features

 :
  • Self-standing type
  • Easy to operate
  • Adjustable pouch stand
  • Various sealing width
  • Ergonomic design

Usage

 :
  • Setup : Place the foot sealer on a stable, flat surface and ensure it is plugged into a power source.
  • Adjust Temperature : Set the desired sealing temperature using the temperature control knob. Allow the machine to heat up for a few minutes until the indicator light shows that it is ready.
  • Prepare Bags : Take the bags you wish to seal and ensure they are clean and free from any debris at the sealing edge.
  • Positioning : Open the sealing bar and place the open end of the bag between the sealing bars, ensuring it is aligned properly.
  • Seal Process : Press down on the foot pedal to activate the heating element. Hold for a few seconds (usually around 2-5 seconds) depending on the thickness of the material being sealed.
  • Release and Check Seal : Release the foot pedal after sealing time is complete, allowing the bar to lift back up. Check if the seal is secure by gently pulling on both sides of the sealed area.
  • Cooling Time : Allow a brief cooling period before handling or moving sealed bags to ensure integrity of seal.

Maintenance :
  • Unplug the Sealer : Always unplug the sealer from the power source when performing maintenance to ensure safety.
  • Regular Cleaning : Periodically wipe down the unit to remove any excess bag material or food debris that may accumulate after sealing.

Applications

 :
  • Food Packaging : It is widely used in the food industry to seal pouches containing snacks, frozen foods, and other perishable items to ensure freshness and prevent contamination.
  • Pharmaceutical Packaging : The sealer is utilized to package pharmaceutical products securely, maintaining hygiene and extending shelf life.
  • Manufacturing Sector : It is employed for sealing various industrial products that require airtight packaging to protect against moisture and dust.
