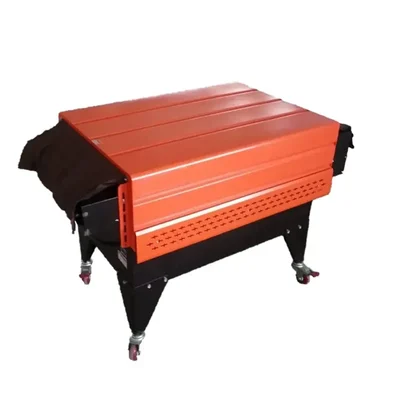

18 x 10 inch Thermal Shrink Packaging Machine 6.5KW
SKU : AK-AP-20211597
MRP : ₹71260
₹50900
29% OFF!
-
1
+
Delivery By: Jun 20 - Jun 22
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
18 x 10 inch (45.72x25.4cm) Thermal Shrink Packaging Machine , 6.5KW
Country of origin: China
Specification
- Brand: Generic (Imported)
- Weight (Approx.) : 73.8 kg
- Model No : BS 4525A
- Voltage : AC 220/ 380 V
- Frequency : 50 Hz
- Phase : Single or Three Phase
- Power (kw) : 6.5 kw
- Conveyor Speed (m/min) : 0-10m/min
- Conveyor Loading : 10 kg
- Tunnel Size : 450 x 250 mm (18” x 10”)
- Machine Dimensions (L x W x H) : 1200 x 650 x 1240 mm
- Weight : 73.8 Kg (Approx.)
Description
This Thermal Shrink Packaging Machine is a device used in packaging processes to apply heat to shrinkable films, which tightly wrap products for protection and presentation. The specific model defined here has dimensions of 18 x 10 inches, indicating the tunnel size in which the items can accommodate during the shrink-wrapping process.
Features
:- Both the height of tunnel and shutters on two sides are adjustable.
- Shrink wrapping machine BS-4525A adopts single hot wind tunnel.
- Shrink wrapping machines are designed with lengthened double hot wind tunnel for higher and better shrinking effect.
- Features like adjustable conveyor speed and temperature settings, these machines enhance operational efficiency by ensuring consistent results while minimizing waste.
Usage
:1. Setup the Machine :
- Place the thermal shrink packaging machine on a stable, flat surface.
- Ensure that the machine is connected to a power source.
2. Prepare the Product :
- Place the product you want to package into a suitable shrink film bag.
- Make sure the bag is large enough to accommodate the product with some extra space for sealing.
3. Adjust Settings :
- Turn on the machine and adjust the temperature settings according to the type of shrink film being used.
4. Load Products :
- Place the prepared product with the shrink film bag onto the machine’s conveyor for sealing.
- Ensure that products are spaced adequately to allow for proper sealing and shrinking.
5. Start Operation :
- Activate the machine by pressing the start button.
- Once sealed, products will move through the heating chamber where hot air will cause the film to shrink tightly around each item.
6. Collect Finished Products :
- Once packaged, collect your finished products from the output area of the machine.
Maintenance :
- Inspect the machine daily for any signs of wear or damage.
- Monitor the shrink tunnel temperature to avoid overheating, which can cause burn holes in the film.
Applications
:- Beverage Packaging : This machine can effectively wrap beverage containers, providing stability during transport and storage.
- Consumer Goods : It is suitable for packaging various consumer products, including electronics, cosmetics, and household items, enhancing their shelf appeal.
- Food Packaging : It is commonly used to package food items, ensuring freshness and protection from contaminants.
- Pharmaceuticals : The machine is utilized in the pharmaceutical industry to package medicines securely, maintaining hygiene standards.
