Brand : Generic (Imported)

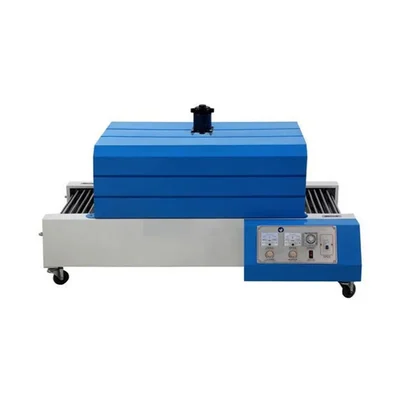

Thermal Shrink Packaging Machine 16x8 Inch, 7.5KW
SKU : DAR-SH-07
MRP : ₹61000
₹50000
18% OFF!
-
1
+
Get Extra ₹750 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

Thermal Shrink Packaging Machine

Power source 220V, 1PH, 50-60Hz

It is suitable for shrink films such as POV, PVC, PP, POF, etc.

Country of origin: China
Specification
  • Brand: Generic (Imported)
  • Weight (Approx.) : 150 kg
  • Model No. : BSB 400
  • Power source : 220V, 1 HP
  • Frequency : 50-60 Hz
  • Power : 7.5KW
  • Conveyor speed : 0-10 m/min
  • Tunnel size (L x W x H) : 830 x 400 x 200mm
  • Shrink Film : POF,PVC,PP.POP
  • Conveyor Loading : 5kg
  • Dimensions (L x W x H) : 1250 x 740 x 670mm
  • Heater Type : Quartz Heater
  • Heater Size : 770 mm x 8
  • Weight : 150 Kg ( Approx.)

Note : Colour May Vary.
Description
The temperature of the shrink room and the speed of the conveyer are adjustable. Furthermore, the height of shrink tunnel is able to be adjusted according to the size of packing goods. Teflon conveyor has advantage of keeping heat. It is ideal to shrink small and light box with this shrink machine.

Features

 :
  • Compact construction, high efficiency
  • Accurate temperature control of shrink tunnel
  • Strong air-flow ensures excellent heat distribution for an even shrinking
  • This machine is relatively easy to operate with straightforward controls that allow quick adjustments without extensive training.

Usage

 :
1. Setup the Machine :
  • Place the thermal shrink packaging machine on a stable, flat surface.
  • Ensure that the machine is connected to a power source.
2. Prepare the Product :
  • Place the product you want to package into a suitable shrink film bag.
  • Make sure the bag is large enough to accommodate the product with some extra space for sealing.
3. Adjust Settings :
  • Turn on the machine and adjust the temperature settings according to the type of shrink film being used.
4. Load Products :
  • Place the prepared product with the shrink film bag onto the machine’s conveyor for sealing.
  • Ensure that products are spaced adequately to allow for proper sealing and shrinking.
5. Start Operation :
  • Activate the machine by pressing the start button.
  • Once sealed, products will move through the heating chamber where hot air will cause the film to shrink tightly around each item.
6. Collect Finished Products :
  • Once packaged, collect your finished products from the output area of the machine.

Maintenance :
  • Inspect the machine daily for any signs of wear or damage.
  • Monitor the shrink tunnel temperature to avoid overheating, which can cause burn holes in the film.

Applications

 :
  • Tamper Evidence : The shrink wrap serves as a tamper-evident seal, giving consumers confidence that the product has not been opened or altered.
  • Food Packaging : They are commonly used in the food industry to package perishable items like bread, fruits, and vegetables, providing moisture protection and extending shelf life.
  • Product Protection : They provide a protective barrier against dirt, moisture, and tampering, ensuring that products remain clean and intact during storage and transportation.
  • Industrial Applications : Thermal shrink packaging is also utilized for packaging industrial products such as tools and hardware to ensure they remain secure during shipping.
