Brand: Toshweld

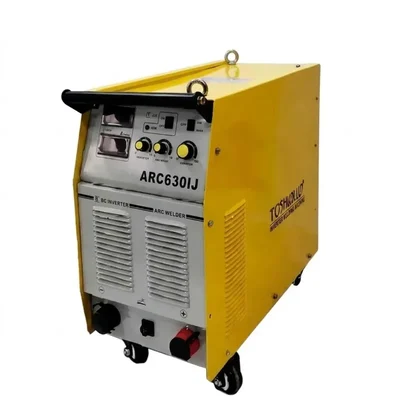

Toshweld 3-Phase IGBT Inverter Welding Machine, Heavy Duty 630A Industrial Arc Welder, ARC-630 IJ
SKU: TI-TA-72136
Estimated Delivery By: May 28 - May 30
MRP : ₹131753 ₹109794
17% OFF!
Estimated Delivery By: May 28 - May 30 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹109794 (Including GST)
MRP : ₹131753
17% OFF!
Get Extra ₹1,647 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
A robust IGBT module configuration with a hefty industrial-grade 630A three-phase inverter arc welding machine. It welds plate thicknesses up to 60mm with exceptional arc stability and is designed to handle extra-heavy steel structures.
Country of origin: China
Specifications
- Brand: Toshweld
- Weight (Approx.) : 44 kg
- Output Current Range : 630 amp
- Technology : IGBT
- Model: ARC-630 IJ
- Product Type: Inverter Arc Welding Machine (MMA/Stick)
- Phase: Three Phase
- Output Current Range: 50 – 630 Amp
- No-Load Open Voltage: 85 V
- Insulation Grade: F
- Electrode Diameter Compatibility: 2.0 mm – 6.3 mm
- Welding Plate Thickness: 2.0 mm – 60.0 mm
Description
The Toshweld ARC-630 IJ is a high-end, heavy-duty industrial inverter arc welding equipment that has been painstakingly designed for shipbuilding, infrastructure construction, and continuous, high-capacity manufacturing. This workhorse ensures steady arc supply under extreme heat stress thanks to an excellent, integrated multi-card IGBT-MODULE system. It produces a huge variable current range from 50 to 630 Amps and runs on a sturdy three-phase power supply with a dynamic open-circuit voltage of 85V. This arrangement enables perfect, deep-penetration welds on large metal panels with thicknesses ranging from 2 mm to an astounding 60 mm. Despite having a large power capacity, the unit's efficient engineering reduces it to a 44 kg frame that can be easily moved around the shop floor thanks to a heavy-duty wheel caster assembly.
Features
:- Industrial IGBT-MODULE Technology: High-capacity integrated module architecture offers greater resilience to line voltage drops, little splatter, and exceptional arc stability.
- Massive Plate Penetration: Capable of handling massive commercial fabrication jobs, cleanly fusing metal plates up to 60mm in thickness.
- Dual Digital Panel Layout: Offers transparent real-time voltage and current monitoring meters to adjust sensitive parameters.
- Class F Safety Insulation: During continuous, high-amperage cycles, circuits are protected by sophisticated insulation parameters and internal heat sensors.
- Heavy-Duty Wheel Casters: Designed to make transferring a 44 kg industrial station safe and simple, these casters have top crane hoisting eyes and structural steel wheels.
- Broad Electrode Versatility: Extra-thick gauge consumable electrode rods with diameters ranging from 2 mm to an industrial 6.3 mm are easily operated.
Applications
:- High-rise building skeletons, railroad frames, bridge assemblies, and infrastructure beams are examples of heavy structural engineering.
- Deep-penetration root passes on thick hull platings and marine low-alloy steel components are used in shipbuilding and marine fabrication.
- Repairing large buckets on excavators, crushers, mining machinery, and concrete mixers is known as heavy plant machinery repair.
- Pressure Vessel Construction: Oil or gas transport pipes and thick-walled industrial storage tanks require specialized continuous welding.
Usage
:- Before hooking up the main power cable terminal block, make sure your shop grid can deliver a steady, balanced three-phase power supply.
- Turn the high-current quick-connect dial plugs clockwise, attaching the earth clamp to the negative (-) socket and the holder to the positive (+) lead.
- Depending on the thickness of your workpiece and the type of rod you choose, you can fine-tune your target amperage and arc force by adjusting the separate dials on the control board.
- Securely fasten the copper grounding clamp to a raw portion of the steel plate that is devoid of any oxidation coatings, priming, or slag.
- When welding, avoid covering the high-velocity ventilation louvers. If the thermal warning signal trips, let the device idle smoothly for a few minutes.
