Brand: Toshweld

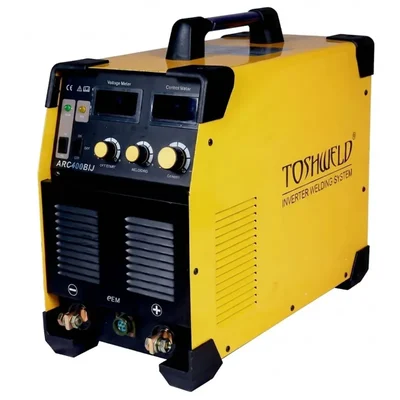

Toshweld 400 Amp 3 Phase IGBT Welding Machine With 1 Year Warranty (ARC 400 BIJ)
SKU: TI-T4-51484
Delivery By: Dec 9 - Dec 11
MRP : ₹37698 ₹28999
23% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹28999 (Including GST)
MRP : ₹37698
23% OFF!
Get Extra ₹435 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Input Voltage AC 415V ± 15% (3 Phase)
Output Current Range 30 - 400 Amps
Technology IGBT Module
1 Year Warranty
Country of origin: China
Specifications
- Brand: Toshweld
- Weight (Approx.) : 18 kg
- Output Current Range : 400 amp
- Technology : IGBT
- Model : ARC 400 BIJ
- Technology : IGBT Module
- Input Voltage : AC 415V ± 15% (3 Phase)
- Plate Thickness Capacity : 2.0 mm - 25.0 mm
- Compatible Electrode Size : 2.0 mm - 5.0 mm
- No-Load Voltage : 68 V
- Input Power Capacity : 18.2 KVA
- Rated Input Current : 17 A
- Power Factor : 0.93
- Dimensions : 19.5" x 9.5" x 17.5"
- Warranty : 1 Year
Description
The Toshweld ARC 400 BIJ is the ultimate industrial workhorse. Powered by robust IGBT Modules, this 3-Phase welder delivers 400 Amps to fuse massive 25mm steel plates. Weighing 18kg, it supports continuous 5.0mm electrode welding, making it perfect for shipyards, heavy structural fabrication, and mining projects. Includes 1-year warranty for maximum reliability.
Features
:- Maximum Industrial Power Delivers the highest output in its class capable of welding extra thick steel plates up to 25mm with deep penetration
- Continuous 5mm Rod Support Specifically designed to run heavy 5.0mm electrodes continuously without overheating or duty cycle interruptions
- Premium IGBT Modules Built with advanced heavy duty IGBT modules that offer superior thermal management and lifespan compared to standard inverters
- Robust 18kg Construction Features a reinforced chassis and heavy duty components weighing 18kg to withstand the toughest industrial conditions
- High Efficiency Performance Maintains a stable arc and low power consumption with a 0.93 power factor even during maximum amperage usage
Applications
:- Heavy Shipyard Construction and Repair
- Mining and Earthmoving Machinery Fabrication
- Industrial Pressure Vessels and Boilers
- Large Scale Bridge and Infrastructure Projects
- Structural Steel Plants
Note : 1 Year Warranty From Toshweld Brand.
Usage
:Usage Guidance (How to use) :
- Industrial Power Connection Connect to a dedicated 415V 3-Phase industrial power line with high amperage circuit breakers
- Heavy Electrode Setup Use welding rods sized 4.0mm or 5.0mm for best results on thick plates and ensure the electrode holder is rated for 400A
- Current Optimization Set the amperage dial to the upper range to maintain a stable arc when fusing plates thicker than 20mm
- Safety Requirements Mandatory use of heavy duty leather protective gear and industrial welding helmets due to extreme heat and UV output
Maintenance Guidance :
- Cooling Maintenance Blow dry compressed air through the machine vents weekly to keep the heavy duty heat sinks free of industrial dust
- Connection Tightening regularly inspect and tighten the heavy input and output terminals as high current vibration can loosen them over time
- Moisture Protection Store the unit in a dry and covered industrial environment to protect the electronic modules from humidity and corrosion
