Brand: Toshweld

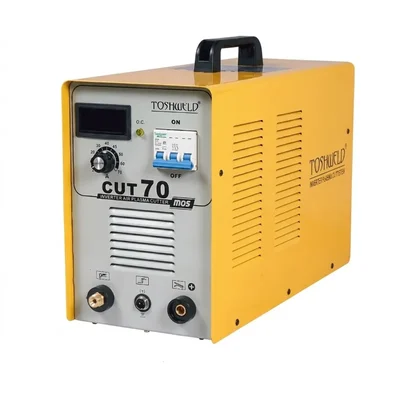

Toshweld 7.8kVA Three Phase MOSFET Plasma Cutting Machine, Portable 70A Heavy Duty Metal Air Cutter, CUT 70
SKU: TI-TC-72140
Estimated Delivery By: May 23 - May 25
MRP : ₹47912 ₹39927
17% OFF!
Estimated Delivery By: May 23 - May 25 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹39927 (Including GST)
MRP : ₹47912
17% OFF!
Get Extra ₹599 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
An industrial 70A three-phase inverter air plasma cutter engineered with multi-card MOSFET technology and a 7.8kVA capacity. It cleanly slices through conductive metal sheets and plates up to 12mm thick.
Country of origin: China
Specifications
- Brand: Toshweld
- Weight (Approx.) : 19 kg
- Output Current Range : 70 amp
- Technology : MOSFET
- Model: CUT 70
- Machine Type: Inverter Air Plasma Cutting Machine
- Technology: MOSFET Inverter System
- Phase: Three Phase (3 Phase)
- Input Power Capacity: 7.8 kVA
- Input Voltage (V): AC415V±15%
- Output Current Range: 20 – 70 A
- Rated Input Current: 12 A
- No-Load Voltage: 240 V
- Required Working Air Pressure: 4 – 5 kg
- Power Factor: 0.93
- Cutting Thickness Range: 0.3 mm – 12.0 mm
- Dimensions: 20 x 8 x 15 Inches
Description
Designed for demanding industrial environments and high-performance fabrication workplaces, the Toshweld CUT 70 MOSFET is a professional heavy-duty inverter air plasma cutting machine. This machine creates an incredibly steady cutting arc that can cut conductive metals with no slag and minimal thermal distortion because to an advanced, field-proven multi-card MOSFET inverter architecture. It has an infinitely variable output range of 20 to 70 Amps and runs on an industrial three-phase 415V AC power grid with an optimized 7.8kVA input capacity. This 19 kilogram device, which has a high open-circuit no-load voltage of 240V, cuts through stainless steel, carbon steel, copper, and aluminum plates that range in thickness from 0.3mm to an amazing 12.0mm.
Features
:- Industrial MOSFET Core: The traditional multi-board design ensures quick pilot striking, excellent arc response, and easy, inexpensive maintenance.
- High-Thickness Clean Cutting: With extremely consistent, thin kerf lines, it effortlessly tears through durable metal plate profiles up to 12 mm thick.
- Stable Three-Phase Logic: Prevents phase dropouts and arc stuttering under load by precisely balancing power use across industrial grids.
- Heavy Duty MCB Control: For optimal power management and overcurrent safety, a sturdy front-panel circuit breaker is used in place of a simple rocker switch.
- Optimized Power Factor: Boasts a remarkable 0.93 power factor rating to reduce operational overhead and increase utility efficiency.
- Digital Ammeter Panel: Accurate cutting current readings are displayed for precise execution on an integrated clear digital screen.
Applications
:- Slicing unique profiles, gussets, flanges, and structural plates from thick sheet stock is known as heavy sheet and plate fabrication.
- Shipyard and machinery refurbishing includes changing low-alloy steel fixtures, removing worn parts, and parting frozen structural assemblies.
- Thick channel frames are sectioned, heavy-duty hitch components are installed, and raw metal sheets are trimmed for automotive and commercial trailer builds.
- Scrap yard metal downsizing involves quickly disassembling large industrial girders, storage enclosures, and unnecessary iron boilers.
Usage
:- Attach a stable compressor line that is adjusted to provide 4–5 kg of dry, clean air pressure to the rear input air terminal.
- Connect the main power lead and multi-pin torch trigger interface to the appropriate front-panel dinse connectors, latching them clockwise.
- On the target metal plate, clip the heavy return earthing clamp onto a place that has been thoroughly ground free of primer layers, rust, and mill scale.
- Turn the current slider to find the right amps that match your plate depth after switching the front MCB breaker up to the "ON" position.
- To extend the life of consumables and reduce slag, pull the torch nozzle smoothly down the cutting path while maintaining a constant standoff distance.
