Brand: Toshweld

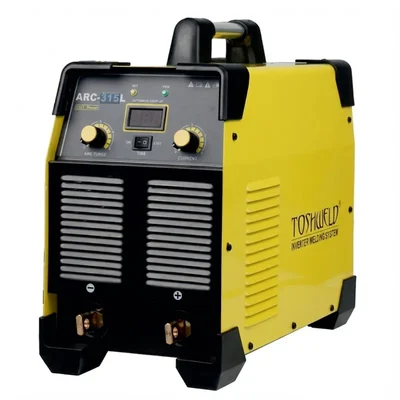

Toshweld 315 Amp 3 Phase IGBT ARC Welding Machine With 1 Year Warranty (ARC 315 L)
SKU: TI-T3-51415
Delivery By: Dec 9 - Dec 11
MRP : ₹21708 ₹16699
23% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹16699 (Including GST)
MRP : ₹21708
23% OFF!
Get Extra ₹250 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Input Voltage AC 230V / 415V ±15% (1/2/3 Phase)
Output Current Range 30 - 315 Amps
Technology IGBT Inverter
1 Year Warranty
Country of origin: China
Specifications
- Brand: Toshweld
- Weight (Approx.) : 9 kg
- Output Current Range : 315 amp
- Technology : IGBT
- Model : ARC 315 L
- Technology : IGBT Inverter
- Input Voltage : AC 230V / 415V ±15% (1/2/3 Phase)
- Plate Thickness Capacity : 2.0 mm - 12.0 mm
- Compatible Electrode Size : 2.0 mm - 4.0 mm
- No-Load Voltage : 66 V
- Input Power Capacity : 10.5 KVA
- Rated Input Current : 55.8 A (230V) / 18.1 A (415V)
- Power Factor : 0.73 / 0.93
- Dimensions : 16.5" x 8" x 15.5"
Description
Master any job with the Toshweld ARC 315 L. This versatile IGBT inverter welder runs on both single-phase 230V and three-phase 415V power. Delivering a powerful 315 Amp output, it welds 12mm thick plates with ease. Compact and lightweight at 9kg, it is the perfect solution for workshops and industrial sites. Includes 1-year warranty.
Features
:- Multi Phase Compatibility Operates seamlessly on both Single Phase 230V and Three Phase 415V power supplies making it adaptable to any location
- Advanced IGBT Technology Delivers superior energy efficiency and a stable welding arc while reducing power consumption
- High Output Power Provides a robust 315 Amp current capable of welding heavy plates up to 12mm thickness
- Portable and Lightweight Designed with a compact 9kg body for easy transportation between home workshops and industrial sites
- Wide Electrode Support Compatible with welding rods from 2.0mm to 4.0mm for versatile fabrication tasks
Accessories
:- 1.5 Meter Welding Cable With Holder
- 1.5 Meter Welding Cable With Earthing Clamp
Applications
:- Small Workshops and Home Fabrication
- Heavy Industrial Construction Sites
- Field Maintenance and Repair Work
- Gate and Grill Manufacturing
- Structural Steel and Pipeline Welding
Usage
:Usage Guidance (How to use) :
- Voltage Selection Verify your power source is either 230V or 415V and ensure the correct plug connection is used
- Rod Selection Choose an electrode between 2.0mm and 4.0mm depending on the thickness of the steel you are welding
- Amperage Setting Adjust the current knob based on your rod size and power input to ensure a smooth arc
- Safety Gear Wear a proper welding helmet and insulated gloves to protect against bright UV light and heat
Maintenance Guidance :
- Air Cleaning Blow dry compressed air through the machine vents once a month to remove dust build up
- Cable Inspection Check the input power cord and electrode holder cables regularly for cuts or loose connections
- Dry Storage Keep the machine stored in a dry environment free from moisture to protect the internal inverter board
