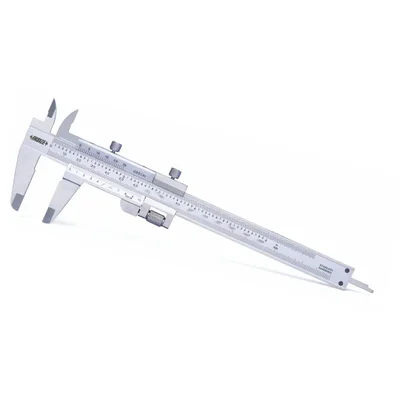

Insize 180 mm Vernier Caliper 1233-180 Model, Stainless Steel Body

• Model No : 1233-180
• Measurement Range : 0-180 mm
• Resolution : 0.02 mm
• Lower Jaw Length : 50 mm
• Upper Jaw Length : 19 mm
• Material : Stainless Steel
• Overall Length : 295 mm
• Accuracy : ±0.03 mm

Features

• Fine Adjustment Mechanism: The secondary sliding block allows for micro-movements of the main jaws, enabling much higher accuracy during manual measurement
• Material: Entirely crafted from hardened Stainless Steel for high rigidity and resistance to rust and industrial wear.
• Satin Chrome Finish: The reading scales are satin chrome-plated. This reduces glare and reflections, making the laser-engraved lines significantly easier to read

Applications

• High-Precision Machining: The fine adjustment wheel is perfect for measuring workpieces where reaching an exact 0.02 mm graduation requires controlled thumb pressure.
• Tool & Die Making: Ideal for checking dimensions of molds, jigs, and fixtures where standard manual calipers lack the necessary "dial-in" feel.
• Quality Control (QC): Used in industrial inspection for verifying part tolerances with a high degree of manual repeatability.
• Research & Development: Excellent for laboratory environments where researchers require a rugged, battery-free tool that offers higher precision than basic 0.05 mm models.
