Brand : Ralli Wolf

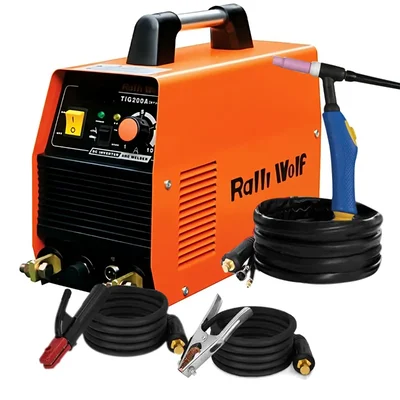

Ralli Wolf TIG 200A Single Phase Mosfet Series MMA Welding Machine 200 Amp. (RT20)
SKU : AB-RW-20233279
MRP : ₹38000
₹27490
28% OFF!
-
1
+
3257 people have viewed this recently
Get Extra ₹412 OFF on Prepaid Orders
Delivery By: Aug 5 - Aug 7
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
TIG 200 A Mosfet Series Welding Machine
Single Phase MMA Welding Machine
10 - 200 Amp Output Current

Country of origin: India
Specification
  • Brand: Ralli Wolf
  • Weight (Approx.) : 8 kg
  • Output Current Range : 200 amp
  • Technology : MOSFET
  • Model No. : RT 20
  • Input Voltage (V) : AC 220 ± 15%
  • Rated Input : 28.2 / 43.6 A
  • Power (KVA) : 9.59
  • No-load Voltage (V) : 56
  • Output Current : 10 - 200
  • Rated Output : 28
  • Duty Cycle (%) : 60
  • No-load Loss (W) : 40
  • Efficiency (%) : 80
  • Power Factor : 0.73
  • Post-flow (Sec.) : 2.5
  • Arcing Way : High Frequency
  • MMA Facility : Available
  • Inverter Technology : MOSFET

Description

  • Ralli Wolf RT Series inverter-based dual application both ARGON (TIG) / MANUAL, DC welding power source with built in HF unit. The machine delivers radiographic quality welding output to meet the demand of Infrastructure / Steel Plants / Railways / Oil & Gas / Power & Energy /Repair & Maintenance / Process Industries / Automobile etc. The power source ensures high reliability with outstanding welding characteristics.

                                Features

                                 :
                                • Excellent TIG welding in MS, CS, SS, Cu, Alloys, Al
                                • High efficiency & Power factor results in low electricity bill
                                • Gas pre flow / Post flow function
                                • Truly vertical welding characteristics with dynamic feedback mechanism ensures high quality pure DC output
                                • MMA function is available in all the models with a selector switch option
                                • AC TIG for Aluminium welding is possible with models RT20A & RT31A
                                • Pulse TIG welding facility with independent settings of the parameters from front panel in the models RT20P & RT31A. Optional remote control facility for welding current variation
                                • Economies is achieved in the use of tungsten
                                • Constant current characteristics irrespective of variation in arc length

                                Accessories

                                 :
                                • 1 x Welding Torch
                                • 1 x Earth Clamp
                                • 1 x Electrode Holder
                                Note :
                                • Do not use the welder for work other than welding.
                                • Do not touch the live part.
                                • Do not solder in places where skimming, cleaning and spraying are required.
                                • When using, please wear a protective cover or protective clothing.
