Brand : Ralli Wolf

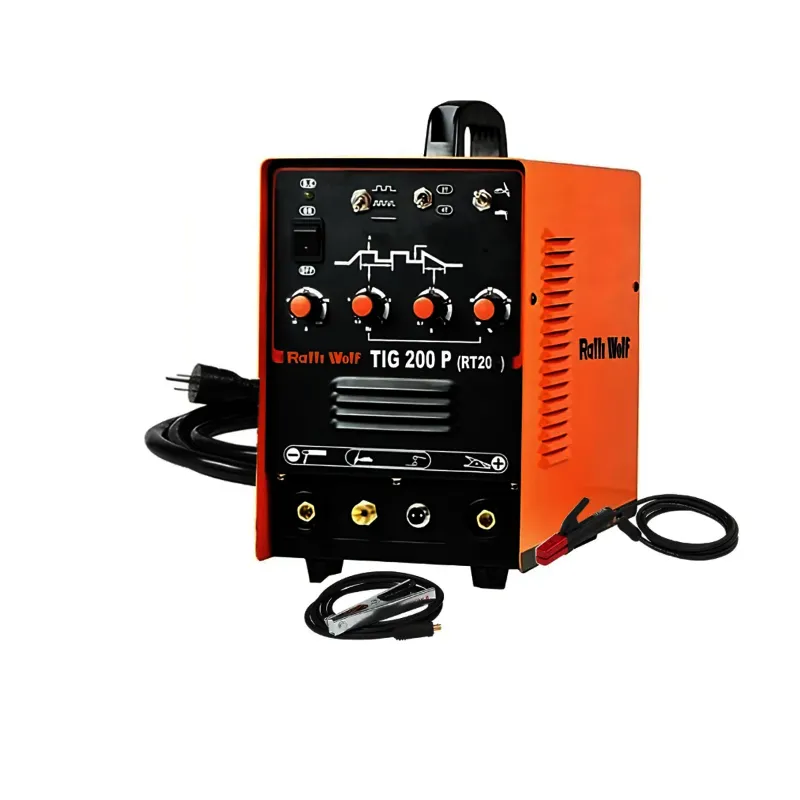

Ralli Wolf TIG 200 P Single Phase Mosfet Series MMA Welding Machine 200 Amp. (RT20P)
SKU : AB-RW-20233281
MRP : ₹83986
₹61500
27% OFF!
-
1
+
597 people have viewed this recently
Get Extra ₹923 OFF on Prepaid Orders
Delivery By: Aug 12 - Aug 14
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Ralli Wolf TIG 200 Mosfet Welding Machine
Single Phase MMA Welding Machine
5 - 200 Amp Output Current
Country of origin: India
Specification
  • Brand: Ralli Wolf
  • Weight (Approx.) : 13 kg
  • Output Current Range : 200 amp
  • Technology : MOSFET
  • Model No. : RT 20P
  • Input Voltage (V) : AC 220 ± 15%
  • Rated Input (A) : 28.2 / 43.6
  • Power (KVA) : 9.59
  • No-load Voltage (V) : 56
  • Output Current (A) : 5 - 200
  • Rated Output (V) : 28
  • Duty Cycle (%) : 60
  • No-load Loss (W) : 40
  • Efficiency (%) : 80
  • Power Factor : 0.73
  • Pre-flow (sec.) : 2
  • Post-flow (Sec.) : 0-25
  • Arcing Way : High Frequency
  • MMA Facility : Available
  • Inverter Technology : MOSFET
Description
Ralliwolf RT Series inverter-based dual application both ARGON (TIG) / MANUAL, DC welding power source with built-in HF unit. The machine delivers radiographic quality welding output to meet the demand of Infrastructure / Steel Plants / Railways / Oil & Gas / Power & Energy /Repair & Maintenance / Process Industries / Automobile etc. The power source ensures high reliability with outstanding welding characteristics.

                                  Features

                                   :
                                  • Excellent TIG welding in MS, CS, SS, Cu, Alloys, Al
                                  • High efficiency & Power factor results in low electricity bill
                                  • Gas pre flow / Post flow function
                                  • Truly vertical welding characteristics with dynamic feedback mechanism ensures high quality pure DC output
                                  • MMA function is available in all the models with a selector switch option
                                  • AC TIG for Aluminium welding is possible with models RT20A & RT31A
                                  • Pulse TIG welding facility with independent settings of the parameters from front panel in the models RT20P & RT31A. Optional remote control facility for welding current variation
                                  • Economies is achieved in the use of tungsten
                                  • Constant current characteristics irrespective of variation in arc length

                                  Accessories

                                   :
                                  • 1 x Earthing Clamp
                                  • 1 x Electrode Holder
                                  Note :
                                  • Do not use the welder for work other than welding.
                                  • Do not touch the live part.
                                  • Do not solder in places where skimming, cleaning and spraying are required.
                                  • When using, please wear a protective cover or protective clothing.
