IGBT Based Welding Machine
10 - 400 Amp Output Current
Brand : Ralli Wolf

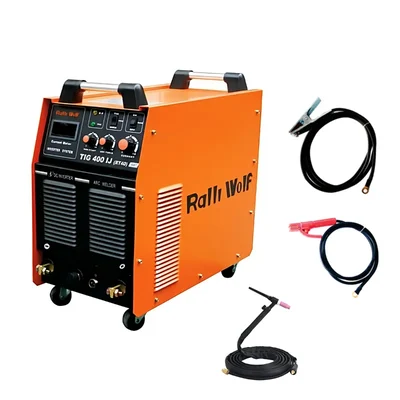

Ralli Wolf TIG 400 IJ Three Phase IGBT Series Inverter Based MMA Welding Machine, 400 Amp. (RT40)
SKU : AB-RW-20233310
MRP : ₹199900
₹129950
35% OFF!
-
1
+
545 people have viewed this recently
Delivery By: Aug 5 - Aug 7
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Ralli Wolf TIG 400 IJ MMA Welding Machine
Country of origin: India
Specification
- Brand: Ralli Wolf
- Weight (Approx.) : 29.5 kg
- Output Current Range : 400 amp
- Technology : IGBT
- Model No. : RT 40
- Input Voltage (V) : AC 415 ± 15%
- Rated Input (A) : 18.2 / 25.3
- Power (KVA) : 18.2
- No-load Voltage (V) : 70
- Output Current (A) : 10 - 400
- Rated Output (A) : 36
- Duty Cycle (%) : 60
- No-load Loss (W) : 80
- Efficiency (%) : 85
- Power Factor : 0.93
- Pre-flow (s) : 2.5
- Post-flow (Sec.) : 0-5
- Arcing Way: High Frequency
- MMA Facility: Available
- Inverter Technology: IGBT
Description
Ralliwolf RT Series inverter-based dual application both ARGON (TIG) / MANUAL, DC welding power source with built-in HF unit. The machine delivers radiographic quality welding output to meet the demand of Infrastructure / Steel Plants / Railways / Oil & Gas / Power & Energy /Repair & Maintenance / Process Industries / Automobile etc. The power source ensures high reliability with outstanding welding characteristics.
Features
:- Excellent TIG welding in MS, CS, SS, Cu, Alloys, Al
- High efficiency & Power factor result in low electricity bill
- Gas pre-flow / Post flow function
- Truly vertical welding characteristics with dynamic feedback mechanisms ensures high-quality pure DC output
- MMA function is available in all the models with a selector switch option
- AC TIG for Aluminium welding is possible with models RT20A & RT31A
- Pulse TIG welding facility with independent settings of the parameters from the front panel in the models RT20P & RT31A. Optional remote control facility for welding current variation
- Economies is achieved in the use of tungsten
- Constant current characteristics irrespective of variation in arc length
Accessories
:- 1 x Earthing Clamp
- 1 x Electrode Holder
- 1 x Welding Torch
Note :
- Do not use the welder for work other than welding.
- Do not touch the live part.
- Do not solder in places where skimming, cleaning and spraying are required.
- When using, please wear a protective cover or protective clothing.
