Brand: AWO

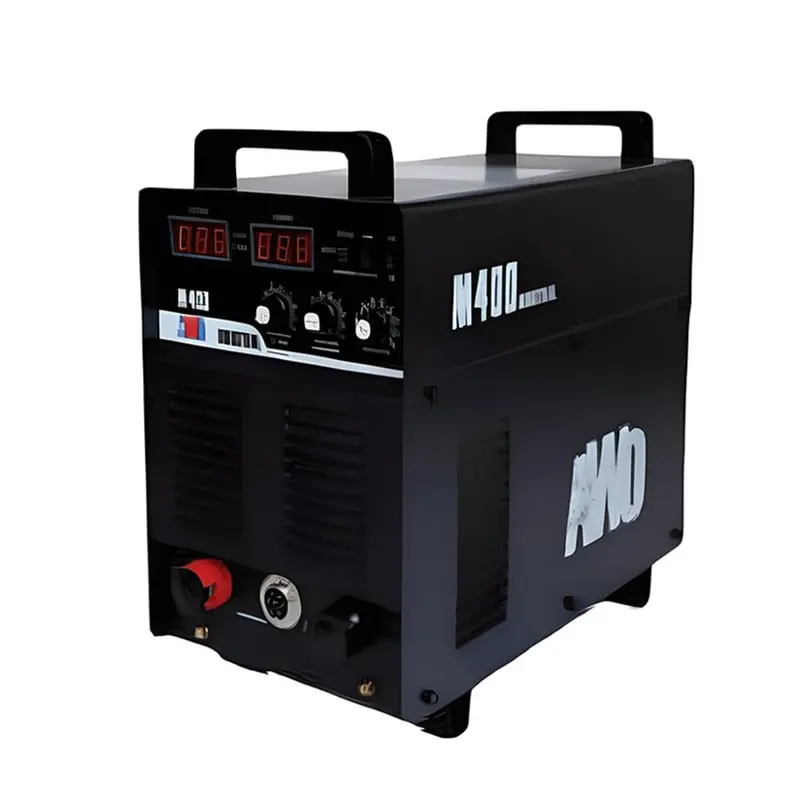

AWO M400 Industrial - Three Phase Mig Welding Machine With 6 Months Warranty
SKU: NI-KO-2007
Delivery By: Dec 9 - Dec 11
MRP : ₹96450 ₹63680
34% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹63680 (Including GST)
MRP : ₹96450
34% OFF!
Get Extra ₹955 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Three Phase Mig Welding Machine for Dia 0.8-1.2 mm Rod
6 Months warranty On PCB Only
IGBT Technology
415 Voltage Power
IP21S Protection Degree
Country of origin: China
Specifications
- Brand: AWO
- Weight (Approx.) : 30 kg
- Output Current Range : 400 amp
- Technology : IGBT
- Model No. : M400 Industrial
- Product Type : Welding machine
- Brand : AWO
- Voltage : 3-415±10%
- Frequency : 50-60Hz
- Rated Input Capacitor (KVA) : 17
- Rated Input Current (A) : 27
- Rated Duty Cycle (%) : 60
- Rated Output Current (A) : 350
- Rated Output Voltage (V) : 31.5
- Rated No-load Voltage (V) : 68
- Efficiency (%) : 87
- Power Factor (COS) : 0.73
- Output Current Range (A) : 40-350
- Output Voltage Range (V) : 14-39
- Adjustment of Wire Fedding Speed : 1-24
- Arc-ending Current (A) : 40-350
- Arc-ending Voltage (V) : 16-31.5
- Wire Diameter (mm) : Ø0.8,Ø1.0,Ø1.2
- Cooling Way : Air Cooling
- Insulation Class : F
- Protection Degree : IP21S
- Welding Mode : C02/MAG
- Dimension (LxWxH) : 514*278*450 mm
- Gross Weight : 30 Kg (Approx)
Note :
- Do not use the welder for work other than welding.
- Do not touch the live part.
- Do not solder in places where skimming, cleaning and spraying are required.
- When using, please wear a protective cover or protective clothing.
Description
The AWO M400 Industrial Three Phase MIG Welding Machine is designed for robust industrial use, operating on 415V and supporting wire diameters of 0.8–1.2 mm. It delivers efficient performance with a 17 KVA input, adjustable wire feed speed, and a rated output current up to 350A. Comes with a 6-month warranty for assured reliability.
