Brand : Ralli Wolf

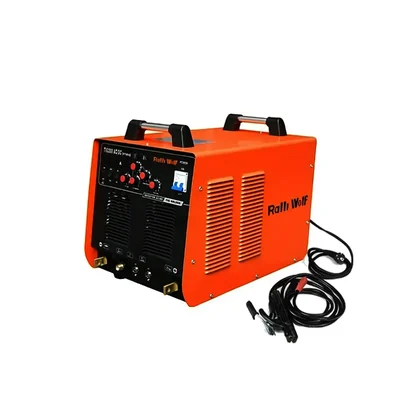

Ralli Wolf TIG 200 AC/DC Mosfet Series Inverter Base MMA Welding Machine 200 Amp. (RT 20A)
SKU : AB-RW-20233303
MRP : ₹37000
₹28290
24% OFF!
-
1
+
2884 people have viewed this recently
Get Extra ₹424 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Ralli Wolf TIG Series MMA Welding Machine
Single Phase Inverter Welding machine
10 - 200 Amp Output Current
Country of origin: India
Specification
Description
Ralli Wolf TIG 200 AC/DC Mosfet Series Inverter Base MMA Welding Machine 200 Amp. (RT 20A)

Description :
  • Ralliwolf RT Series inverter-based dual application both ARGON (TIG) / MANUAL, DC welding power source with built in HF unit. The machine delivers radiographic quality welding output to meet the demand of Infrastructure / Steel Plants / Railways / Oil & Gas / Power & Energy /Repair & Maintenance / Process Industries / Automobile etc. The power source ensures high reliability with outstanding welding characteristics.

Features :
  • Excellent TIG welding in MS, CS, SS, Cu, Alloys, Al
  • High efficiency & Power factor results in low electricity bill
  • Gas pre flow / Post flow function
  • Truly vertical welding characteristics with dynamic feedback mechanism ensures high quality pure DC output
  • MMA function is available in all the models with a selector switch option
  • AC TIG for Aluminium welding is possible with models RT20A & RT31A
  • Pulse TIG welding facility with independent settings of the parameters from front panel in the models RT20P & RT31A. Optional remote control facility for welding current variation
  • Economies is achieved in the use of tungsten
  • Constant current characteristics irrespective of variation in arc length

Specifications :
  • Model No. : RT 20A
  • Input Voltage (V) : AC 220 ± 15%
  • Rated Input Current (A) : 28.2/43.6
  • Power (KVA) : 9.59
  • No-load Voltage (V) : 54
  • Output Current Range (A) : 10 - 200
  • Rated Output Voltage (V) : 18
  • Duty Cycle (%) : 60
  • No-load Loss (W) : 80
  • Efficiency (%) : 80
  • Power Factor : 0.73
  • Pre-flow (Sec.) : 2
  • Post-flow (Sec.) : 0 - 2.5
  • Arcing Way : High Frequency
  • MMA Facility : Available
  • Inverter Technology : MOSFET

Standard Accessories :
  • 1 x Earthing Clamp
  • 1 x Electrode Holder
Note :
  • Do not use the welder for work other than welding.
  • Do not touch the live part.
  • Do not solder in places where skimming, cleaning and spraying are required.
  • When using, please wear a protective cover or protective clothing.
