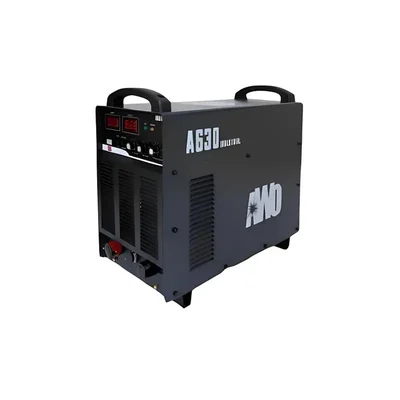

AWO Three Phase A630 Industrial Welding Machine for Rod Dia 2.5-6 mm

Easy Returns

Quality Assurance

Trusted Delivery

After Sales Assistance

Short Description

Three Phase A630 Industrial Welding Machine

IP21S Protection Degree

F Class Insulation

Description

AWO Three Phase A630 Industrial Welding Machine for Rod Dia 2.5-6 mm

Specification:

• Model No : A630 Industrial
• Product Type : Welding machine
• Brand : AWO
• Voltage (v) : 3-415±10%
• Frequency : 50-60 Hz

• Rated Input Capacitor : 38 KVA

• Rated Input Current : 54 A

• Rated Output Voltage : 34 V

• Power Factory : 0.93

• Output no-load voltage : 84

• Rated Duty Cycle : 60

• Output Current Range (A) : 40-630

• Wire Diameter (mm) : ≤Ø8

• Efficiency : 88

• Insulation Class : F

• Protection Degree : IP21S

• Cooling : Air Cooling

• Dimension : 660x320x600 mm

• Gross Weight : 45.5 Kg (Approx)


Note :

• Do not use the welder for work other than welding.
• Do not touch the live part.
• Do not solder in places where skimming, cleaning and spraying are required.
• When using, please wear a protective cover or protective clothing.
