Brand: Generic (Imported)

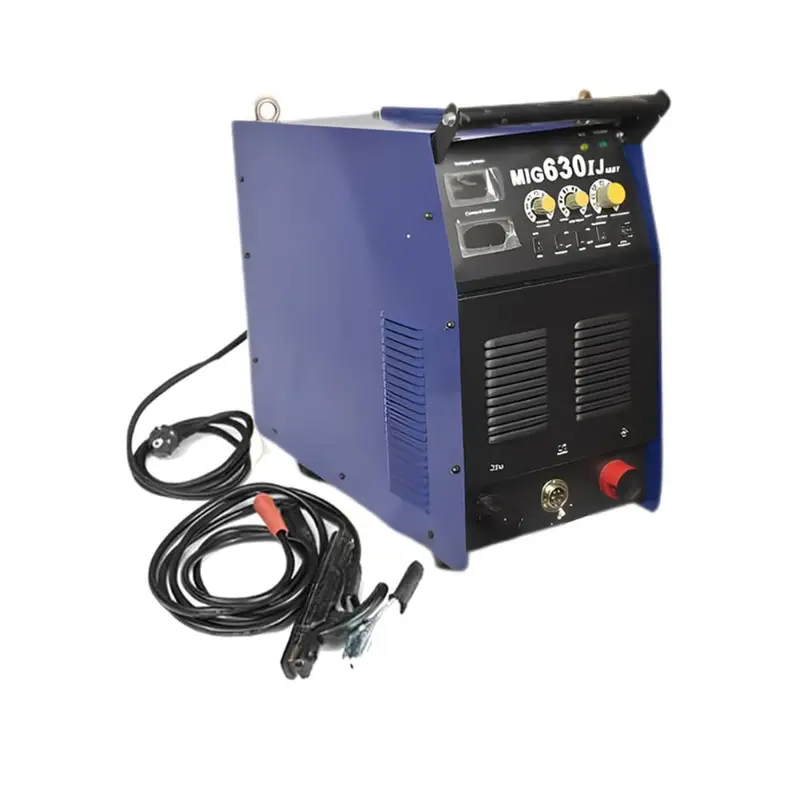

Heavy Duty MIG 630IJ Three Phase Welding Machine With Module IGBT Technology
SKU: ST-TWM-132
Delivery By: Dec 19 - Dec 21
MRP : ā¹120000 ā¹113500
5% OFF!
Delivery By: Dec 19 - Dec 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
ā¹113500 (Including GST)
MRP : ā¹120000
5% OFF!
Get Extra ā¹1,703 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
630 Amp Three Phase MIG Welding Machine
26 A Input Current and 28 kVA Input Power
IGBT-Based Welding Machine
50-630A Current Adjust Range
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 48 kg
- Output Current Range : 630 amp
- Technology : IGBT
- Model No. : MIG 630 IJ
- Product Type : Welding Machine
- Brand : Generic
- Base Material : Carbon steel Stainless steel Low- alloy steel, Austenitic Stainless Steel, Aluminium
- Power Voltage : 3Ph AC415VĀ±15%
- Frequency : 50 Hz
- Rated Input Current : 26 A
- Rated Input Power Capacity : 28 kVA
- No-Load Voltage : 60 V
- Current Adjust Range : 50-630 A
- Duty Cycle : 60 %
- Efficiency : 85 %
- Type of Wire feeder : Separate
- Wire feeding Speed : 1.5-22 m/min
- Power Factor : 0.93
- Insulation Class : H
- Protection Grade : IP23
- Wire Diameter : 0.8/1.0/1.2/1.6/2.4 mm
- Switching Device : MODULE IGBT
- Overall Dimension : (610 x 390 x 590) mm
- Machine Cooling Mode : Air Cooled
- Weight : 48 kg
Caution :
- Do not use the welder for work other than welding.
- Do not touch the live part.
- Do not solder in places where skimming, cleaning and spraying are required.
- When using, please wear a protective cover or protective clothing.
Note :
- Photo may slightly different from actual Item
Description
The Heavy Duty MIG 630IJ Three Phase Welding Machine features advanced Module IGBT Technology, offering a wide current range of 50ā630A and high efficiency up to 85%. Designed for demanding industrial applications, it ensures stable arc control, reduced spatter, and reliable performance for welding thick metals. Includes separate wire feeder and robust protection features for continuous heavy-duty use
Features
:- Digital Inverter design control MIG/GMAW and FCAW welding outfit which offers stable, low spatter arc performance
- Lightweight and compact MIG/MAG/FCAW welding outfit
- Two track & four-track option for continuous welding purposes
- Continuous adjustment of welding voltage and current
- Adjustable MIG arc force strictly executes the arc features for fine-tuning arc characteristics in MIG and Stick modes
- Greater efficiency and higher power factor results in greater power saving
- Printed circuit wire feeder motor for advanced resolution and reliability
- Automatic compensation for mains voltage fluctuations
- Uniform wire feeding through a dual-gear driven drive
- Higher accuracy due to power SMD technology
- Digital Display licence accurate and repeatable setting of welding limits
- International Standard IEC 60974-1& ISO 9001:2015 Certified
