Recommended areas of use : Industrial fabrication, Pipeline industry, Maintenance and repair, Heavy structure work, Steel construction industries, Railway, shipping & aviation, Automobile industry, Structural fabrication, Fabrication of sheet metal products, Building & construction
Description

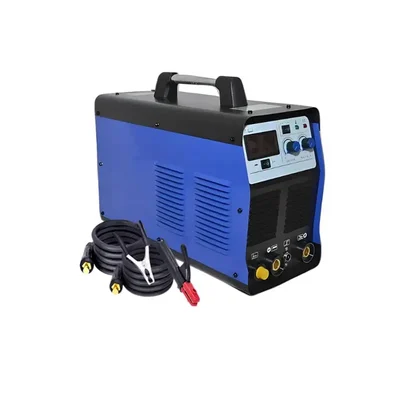

Heavy Duty MIG 300A Three Phase Welding Machine With IGBT Technology
Features :
Digital Inverter design control MIG/GMAW and FCAW welding outfit which offers stable, low spatter arc performance
Lightweight and compact MIG/MAG/FCAW welding outfit
Two track & four-track option for continuous welding purposes
Continuous adjustment of welding voltage and current
Adjustable MIG arc force strictly executes the arc features for fine-tuning arc characteristics in MIG and Stick modes
Greater efficiency and higher power factor results in greater power saving
Printed circuit wire feeder motor for advanced resolution and reliability
Automatic compensation for mains voltage fluctuations
Uniform wire feeding through a dual-gear driven drive
Higher accuracy due to power SMD technology
Digital Display licence accurate and repeatable setting of welding limits
International Standard EC 60974-1& iSO 9001:2015 Certified
Specifications :
Model No. : MIG 300
Product Type : Welding Machine
Brand : Imported
Base Material : Carbon steel,Stainless steel Low alloy steel, Austenitic Stainless Steel, Aluminium
Switching Device : MODULE IGBT
Power Voltage : 3Ph AC415V±15%
Frequency : 50 Hz
Rated Input Current : 15.6 A
Rated Input Power Capacity : 10.3 kVA
No-Load Voltage : 60 V
Current Adjust Range : 50-300 A
Duty Cycle : 60 %
Efficiency : 85 %
Type of Wire feeder : Inbuilt
Wire feeding Speed : 1.5-18 m/min
Power Factor : 0.93
Insulation Class : H
Protection Grade : IP23
Machine Cooling Mode : Air Cooled
Wire Dia : 0.8/1 mm
Overall Dimension : (510 x 273 x 440) mm
Weight : 28 kg
Caution :
Do not use the welder for work other than welding.
Do not touch the live part.
Do not solder in places where skimming, cleaning and spraying are required.
When using, please wear a protective cover or protective clothing.
