Brand: Imported

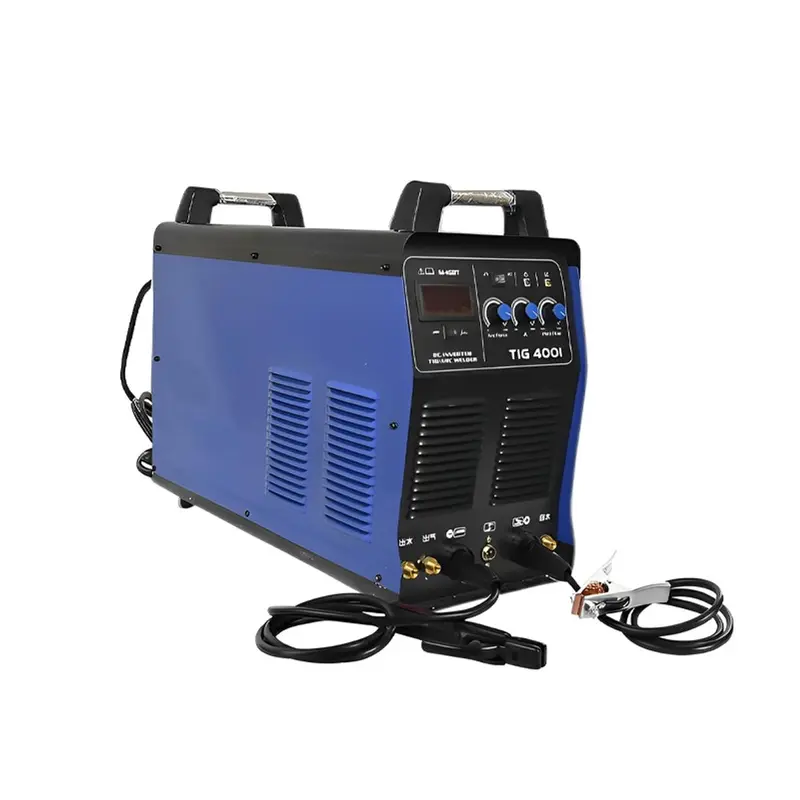

Heavy Duty TIG 400IJ Three Phase Welding Machine With Advance lnverter Technology
SKU: ST-TTWM-152
Regular Price : ₹55000
Offer Price : ₹53950 (Including GST)
Get extra ₹1,619 Discount (On Checkout)
Qty:
Easy Returns
Quality Assurance
Trusted Delivery
After Sales Assistance
Short Description
400 Amp Three Phase TIG Welding Machine
Air Cooled Machine
Module IGBT Welding Machine
13 kVA Input Power Capacity
Advance lnverter Technology
Description
Heavy Duty TIG 400IJ Three Phase Welding Machine With Advance lnverter Technology
Specifications :
- Model No. : TIG 400IJ
- Product Type : Welding Machine
- Brand : Imported
- Power Voltage : 3Ph AC380-415V
- Frequency : 50/60 Hz
- Rated Input Current : 18 A
- Rated Input Power Capacity : 13 kVA
- No-Load Voltage : 68 V
- Current Adjust Range : 20-400 A
- Duty Cycle : 60 %
- Efficiency : 85 %
- Power Factor : 0.93
- Insulation Class : H
- Protection Grade : IP23
- Base Material : Carbon steel, Stainless steel Low- alloy steel, Austenitic Stainless Steel, Aluminium
- Switching Device : MODULE IGBT
- Overall Dimension : (495 x 275 x 445) mm
- Machine Cooling Mode : Air Cooled
- Tungsten Rod Diameter : 1.6 - 4 mm
- Weight : 28 kg
Recommended Areas Of Use :
- General Fabrication
- Structural Fabrication
- Field and repair jobs
- Gates and grills work
- Building and construction
- Office and school supplies
- Electrical and mechanical repair
- Light engineering works
- Automotive and aircraft industry
- Shipbuilding industry
Caution :
- Do not use the welder for work other than welding.
- Do not touch the live part.
- Do not solder in places where skimming, cleaning and spraying are required.
- When using, please wear a protective cover or protective clothing.
Accessories :
- Welding Cable
- Earthing Clamp
- Operator's Manual
