Veto (CV-S170) HTP 170 Power Sprayer Pump with 125-170 LPM and 10-40 kgf/cm²Working Pressure for Agricultural Spraying

Brand: Generic (Imported)

Veto (CV-S170) HTP 170 Power Sprayer Pump with 125-170 LPM and 10-40 kgf/cm²Working Pressure for Agricultural Spraying

Name: Veto (CV-S170) HTP 170 Power Sprayer Pump with 125-170 LPM and 10-40 kgf/cm²Working Pressure for Agricultural Spraying
Brand: Generic (Imported)
SKU: TI-HH-51846
Price: 27850 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-HH-51846

MRP : ₹30000 ₹27850

7% OFF!

1247 people have viewed this recently

Get Extra ₹418 OFF on Prepaid Orders

Estimated Delivery By: Jul 25 - Jul 27

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹27850 (Including GST)

MRP : ₹30000

7% OFF!

Get Extra ₹418 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

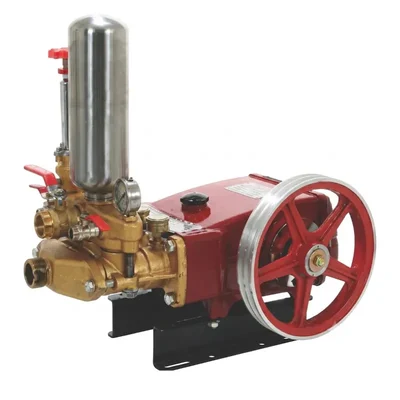

Veto (CV-S170) HTP 170 Power Sprayer Pump

With 125-170 LPM and 10-40 kgf/cm²Working Pressure

For Agricultural Spraying

Country of origin: China

Brand: Generic (Imported)
Weight (Approx.) : 43 kg

Model Number : CV - S170
HTP : 170
Required Motor Power : 9.5 - 16 HP
Piston Configuration 3 Plungers / Triplex Pistons
Piston Geometry (Diameter x Stroke) : 45 mm x 45 mm
Operational Speed Range : 600 - 800 RPM
Suction Flow Discharge (LPM) : 125 - 170 Liters Per Minute
Working Pressure Capacity : 10 - 40 kgf/cm²
Drive Pulley Diameter : 4 Inches
Physical Dimensions : 63 x 41 x 52 cm

The Veto CV-S170 (HTP 170) represents the absolute pinnacle of commercial-grade Horizontal Triplex Plunger (HTP) power sprayer pumps, engineered specifically to handle extreme fluid-displacement workloads. Driven by an integrated 4-inch belt drive pulley, this high-efficiency triplex unit runs exceptionally well within a steady 600 to 800 RPM matrix, guaranteeing minimal power drop under full loads. Encased inside a heavy-duty, protective 63 x 41 x 52 cm cast alloy chassis is a balanced 3-piston drive configuration constructed with an ultra-tough 45mm diameter and a matching 45mm stroke length. This robust internal configuration allows the pump to comfortably manage an incredible suction displacement range of 125 to 170 Liters Per Minute (LPM) while maintaining a highly flexible, adjustable working pressure between 10 and 40 kgf/cm². Purpose-built for flawless mechanical longevity, the Veto CV-S170 is the primary choice for extensive broadacre agricultural fields, large orchard spray networks, heavy-duty municipal cleaning, and industrial multi-bay car washing stations.

Features

Oversized Triplex Plunger Core: Equipped with three precision-ground 45x45mm pistons that dramatically minimize flow pulsing to yield a steady, high-pressure output stream.
High Torque 4 Inch Drive Pulley: Outfitted with a heavy-duty cast iron pulley tailored for seamless V-belt connection to heavy industrial diesel engines or high-horsepower electric motors.
Massive Fluid Displacement Values: Achieves an exceptional 170 LPM maximum suction rate, effortlessly fueling massive field spray arrays or multiple high-velocity wash guns simultaneously.
Forged Pressure Control Valve: Includes a manual pressure regulation bypass lever to swiftly adapt, adjust, and lock operations anywhere between 10 and 40 kgf/cm².
Anti-Corrosive Structural Framework: Built into a rugged, weatherproof protective outer frame measuring 63 x 41 x 52 cm to preserve internal mechanical components out in harsh fields.
