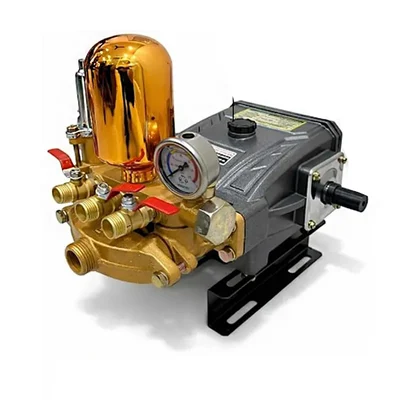

Latson HTP - 95, 3 Piston Tractor Mounted HTP Sprayer Pump With 40-60 LPM and 300-400 PSI 25 Ft Spray
SKU: TI-HH-51833
1805 people have viewed this recently
Estimated Delivery By: Oct 23 - Oct 25
MRP : ₹13900 ₹9900
29% OFF!
1805 people have viewed this recently Estimated Delivery By: Oct 23 - Oct 25 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹9900 (Including GST)
MRP : ₹13900
29% OFF!
Get Extra ₹149 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Latson HTP - 95 3 Piston Tractor Mounted HTP Sprayer Pump With 40-60 LPM and 300-400 PSI 25 Ft Spray
Country of origin: China
Specifications
- Brand: Latson
- Weight (Approx.) : 4 kg
- Speed : 1200 rpm
- Power : 5 hp
- Power : 3-5 HP
- Suction : 30-56 L/Min
- Number of Pistons : 3
- Operating Speed : 800 – 1,200 RPM
- Delivery Output : 40 – 60 Liters Per Minute
- Normal Working Pressure : 300 - 400 PSI
- Maximum Vertical Spray Range : 15 to 25 Feet
- Pump Body Material : Heavy-duty Aluminum Die-Cast
- Pump Head Material : Brass-Coated Cast Iron
- Piston Plungers : Hardened Stainless Steel
- Pulley Size : 7-Inch (17.7 cm)
Description
The Latson HTP - 95 Tractor Mounted HTP Sprayer Pump is a heavy duty agricultural spraying system engineered for commercial crop protection, orchard maintenance, and large-acreage farm management. Built around a precision-engineered 3-piston horizontal triplex system, this high-pressure pump ensures smooth, continuous fluid delivery while minimizing mechanical vibration and internal wear. Designed to operate at input speeds of 800 to 1,200 RPM, the HTP - 95 generates an impressive flow rate of 40 to 60 Liters Per Minute (LPM). With a normal working pressure operating between 300 and 400 PSI, it converts spray solution into a fine mist capable of penetrating dense foliage. The high-discharge pressure propels liquid to vertical spray heights of 15 to 25 feet, making it an ideal choice for spraying tall fruit orchards and dense field crops. Engineered for seamless tractor mounting and power take-off (PTO) drive connection, the Latson HTP - 95 provides farmers and agricultural contractors with maximum coverage efficiency, reduced chemical waste, and robust performance across demanding farming conditions.
Features
:- Triplex Piston Mechanism: 3-piston setup distributes mechanical load evenly to maintain consistent output pressure.
- High-Capacity Flow Rate: 40 to 60 LPM discharge capability allows fast coverage of large agricultural areas.
- High-Pressure Atomization: 300–400 PSI operating range delivers micro-droplets for optimal chemical adherence.
- Extended Vertical Spray Distance: Reaches heights up to 25 feet for effective tree canopy and tall-crop spraying.
- Tractor PTO Integration: Easily mounts onto tractor skids or 3-point linkage setups powered by standard PTO shafts.
Accessories
:- Suction Hose Pipe
- Overflow Hose Pipe
- Pulley
- Filter
- Tool Kit & Washer
- User Manual
Applications
:- Large Scale Crop Field Spraying: Ideal for broadcasting liquid fertilizers, pesticides, and fungicides across extensive fields of paddy, wheat, cotton, and sugarcane.
- Tall Orchard Canopy Care: Provides vertical spray height up to 25 feet to reach tall fruit trees like mango, coconut, papaya, and citrus groves.
- Pest & Fungal Infection Control: High working pressure (300–400 PSI) forces spray deep into dense crop foliage for thorough pest management.
- Agricultural Washdown & Sanitization: Serves as a high-pressure washing pump for cleaning farm tractors, implements, dairy sheds, and poultry housing.
- Municipal & Plantation Spraying: Suitable for large-area municipal pest control, public sanitization drives, and roadside forestry maintenance.
