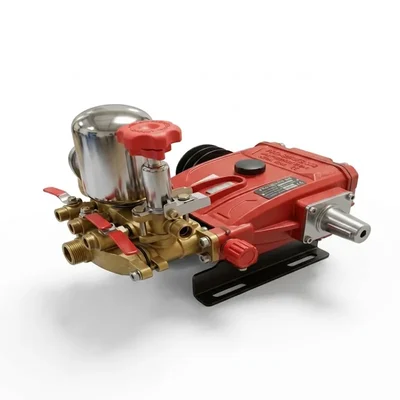

Veto HTP 75 (CV-S75GF) High Pressure 3-Piston Pump, 15-35 kgf/cm² Agricultural Sprayer Pump & Industrial Car Wash Pump

Brand: Generic (Imported)

Veto HTP 75 (CV-S75GF) High Pressure 3-Piston Pump, 15-35 kgf/cm² Agricultural Sprayer Pump & Industrial Car Wash Pump

Name: Veto HTP 75 (CV-S75GF) High Pressure 3-Piston Pump, 15-35 kgf/cm² Agricultural Sprayer Pump & Industrial Car Wash Pump
Brand: Generic (Imported)
SKU: TI-HH-51881
Price: 10500 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-HH-51881

MRP : ₹14700 ₹10500

29% OFF!

1062 people have viewed this recently

Get Extra ₹158 OFF on Prepaid Orders

Estimated Delivery By: Aug 21 - Aug 23

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹10500 (Including GST)

MRP : ₹14700

29% OFF!

Get Extra ₹158 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Veto HTP 75 (CV-S75GF) High Pressure 3-Piston Pump

15-35 kgf/cm² Agricultural Sprayer Pump & Industrial Car Wash Pump

Country of origin: China

Brand: Generic (Imported)
Weight (Approx.) : 15 kg

Piston Diameter : 30 mm
Piston Stroke : 20 mm
Speed Range : 800 - 1000 RPM
Suction Flow : 45 - 55 LPM
Max Pressure : 35 kgf /cm²
Power Required : 3 - 5 HP
Pulley Size : 4 Inch
Dry Weight : 13 kg
Product Dimensions : 39 x 30 x 34 cm

The Veto HTP 75 CV-S75GF is a powerhouse of industrial pumping technology, engineered for applications requiring high-volume suction and extreme discharge pressure. This robust unit features a precision-machined 3-piston configuration (30mm diameter x 20mm stroke), optimizing fluid dynamic efficiency to deliver an impressive suction flow rate of up to 55 LPM. Designed for belt-driven operation via the integrated 4-inch pulley, the pump operates smoothly between 800 and 1000 RPM. This makes it an ideal prime mover for professional high-pressure vehicle wash systems, industrial pipe cleaning, and large-scale agricultural spraying rigs.

Features

Continuous Duty Rating: Engineered for high-load, non-stop industrial and agricultural cycles.
Corrosion Resistant: Materials selected for durability when handling water and common agricultural chemicals.
Precision Drive System: Optimized 800-1000 RPM range for efficiency and longevity.
Universal Mounting: Sized to fit standard industrial pump skids and mobile spraying platforms.
High Power Transfer: Integrated 4-inch pulley efficiently converts 3-5 HP from the prime mover.

Accessories

Suction Hose Pipe
Overflow Hose Pipe
Pulley
Filter
Tool Kit & Washer
User Manual

Applications

Professional Vehicle Wash Systems: High-volume, high-pressure output for car, truck, and bus wash bays.
Industrial Pressure Washing: Powering heavy-duty cleaning equipment for construction sites, factories, and marine applications.
Agricultural Crop Spraying: Generating uniform, forceful spray patterns for large-scale fertilizer and pesticide application.
Hydrostatic Pipe Testing: Providing consistent pressure to test pipeline integrity in plumbing and industrial installations.
Fire Suppression Systems: Delivering water for mobile fire pumps and stationary industrial protection systems.
