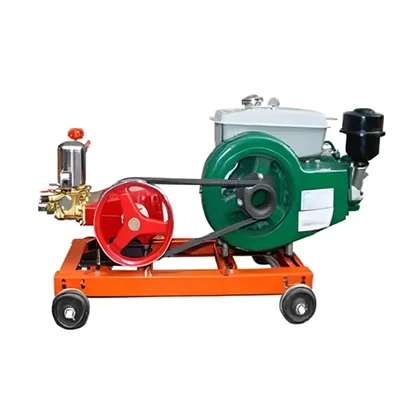

Premium Quality Triple Piston HTP-30 4-Stroke Diesel High-Pressure Sprayer Pump

Easy Returns

Quality Assurance

Trusted Delivery

After Sales Assistance

Short Description

Triple Piston 4-Stroke

Diesel High-Pressure Sprayer Pump 30

Fuel Tank Capacity 4.5 litre

Liquid Output 2400 litre / hour (approx)

Description

Premium Quality Triple Piston HTP-30 4-Stroke Diesel High-Pressure Sprayer Pump

Description :

• Power Sprayer Pump Set (Diesel), PSD-30 4 Stroke, air cooled Engine. Use in a garden, agriculture, horticulture and others crops for spraying pesticides, washing and cleaning using water.

Specification :

• Power : 4.1 HP

• Displacement : 163 cc
• Weight : 60 Kg (Approx)

Engine Specification :

• Product Type : Horizontal Diesel Engine

• Brand : Imported
• HP : 4.1 hp
• Displacement : 269 cc
• Engine Type : 4 Stroke, Air cooled
• RPM : 2600 (Engine RPM)
• Fuel Used : Diesel
• Fuel Tank Capacity : 4.5 litre
• Oil (Mixing) For Engine : 1100 ml (20 w 40 Grade)
• Fuel Consumption : 500 ml/hour (Engine)
• Liquid Output (approx) : 2400 litre / hour

HTP Sprayer Specification :

• Engine Power required in HP : 3 – 6.5(hp)
• Pump RPM: 800 - 1200
• Output Pressure : 10 – 40 (Kg/cm²)
• Suction Vol.: 30 – 40 (L/min)
• Liquid Output (approx): 1800 - 2400 Litre/hour
• Pump Oil (Mixing) (20 W 40 Grade) : 900 ml
• Hose Pipe length: Up to 250 m

In Box Accessories :

• Heavy Duty Stand
• 2 Pulley belt
• Tool-kit
• 7 feet Suction pipe
• 3 feet overflow pipe ( approx )

Usage :

• Portable and suitable for large spraying operations in orchards like mango, coffee, rubber, plantation, apple, vineyards, ground, crops and particularly for tall trees like coconut, rubber, areca nut. It is also used for car washing.
