Brand: Latson

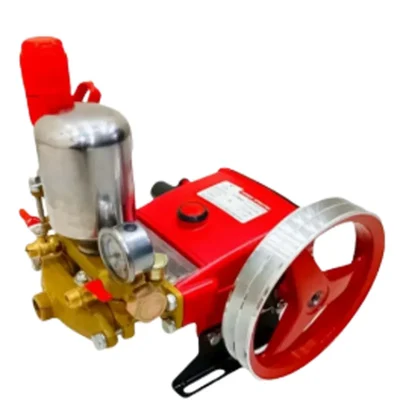

Latson HTP- 30 Triple Pistons Pump With 2 Outlet For Cleaning & Agricultural Spray
SKU: TI-LH-35488
1069 people have viewed this recently
Delivery By: Dec 9 - Dec 11
MRP : ₹5000 ₹3890
22% OFF!
1069 people have viewed this recently Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹3890 (Including GST)
MRP : ₹5000
22% OFF!
Get Extra ₹58 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
HTP- 30 Triple Pistons Pump With 2 Outlet
Country of origin: China
Specifications
- Brand: Latson
- Weight (Approx.) : 10 kg
- Fuel Used : Petrol
- No of Piston :3
- Required Motor : 2 HP to 3 HP
- Required Engine : 6.5 to 7 HP
- Speed : 800 - 1200 RPM
- Delivery Output : 25-30 LPM
- Normal Working Pressure (PSI) : 300-400
- Body Material : Aluminum Die Cast
- Pump Material : Brass Coated Cast Iron
- Pulley Size : 7 Inch (17.7 cm)
- No. of Cock (Output Connections) : 2
- Pump Oil Capacity : 750 ml (20W40)
- Max Hose Pipe Can Be Connect : 100 meter
- Suitable Hose Pipe Diameter : 8.5 MM & 10 MM
Note : Colour of the Product may vary
Description
An HTP pump, or High-Pressure Triplex pump, is a type of pump commonly used in sprayers, particularly in agriculture and industrial applications, to deliver a high-pressure spray of liquid. HTP pumps are known for their ability to create a steady and powerful flow of liquid, making them suitable for uniform spraying over large areas.
Features
:- Two people can spray at the same time.
- Useful for high pressure spraying
- Ideal for orchards and high terrains
- Light weight and compact construction
- Sturdy and rugged construction
- Heavy duty & stainless steel piston
- Also compatible with engine or motor
Applications
:Recommended usage :
- Vehicles (Cars, bikes etc.) Washing.
- Agriculture spray in big farmland.
- Pressure cleaning
Usage
:- Mount the motor with suitable engine or electric motor
- Attach the inlet pipe, overflow pipe, and hose pipe.
- Connect with electricity if mounted with motor or pour the fuel in fuel tank and the engine oil in engine oil chamber accordingly and start the engine if mounted with an engine
- Be sure about safety precautions.
- Do your work as per your needs.
Always refer to the manufacturer's instructions and safety guidelines when operating an HTP pump without a motor.
