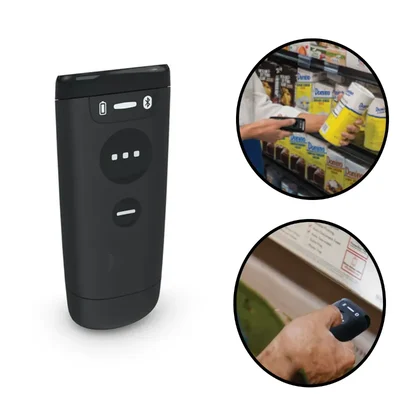

CS60 Series 1D/2D Companion Scanner |Portable Scanner| with Contactless Charging Feature

Features

• Convertible Design: The CS60 can easily switch between corded and cordless modes. This flexibility allows users to adapt the scanner to different workflows without needing multiple devices. Whether you need a portable scanner for stock taking or a stationary one for checkout counters, the CS60 meets these needs seamlessly.
• Contactless Charging: One of the standout features of the CS60 is its contactless charging capability through Qi inductive technology. This feature not only simplifies the charging process but also enhances durability by reducing wear on connectors.
• Battery Life: The scanner boasts an impressive battery life of up to 18 hours on a full charge, which is sufficient for extended shifts without needing frequent recharges5. The battery can be easily replaced without special tools, ensuring minimal downtime during operations.
• Bluetooth Connectivity: Equipped with Bluetooth 5.0 technology, the CS60 allows users to connect wirelessly to host devices from distances up to 330 feet (100 meters). This range provides significant flexibility in operational environments.
• Durability and Design: The CS60 is designed to withstand multiple drops from heights of up to 6 feet (1.8 meters) onto concrete surfaces, making it suitable for demanding work environments. Its seamless construction also makes it easy to clean, which is essential in maintaining hygiene standards in various settings.
• User-Friendly Features: The scanner includes multiple feedback options such as haptic feedback, LED indicators, and audible tones that confirm successful scans10. Additionally, it supports Multi-Code Data Formatting (MDF), allowing users to scan multiple barcodes simultaneously and transmit only the necessary data

Specification

• Operating current at nominal voltage :  400 mA (typical)
• Standby current (idle) at nominal voltage :  90 mA (typical)
• Motion Tolerance : Up to 20 inch ( 51 cm) per second for 13 mil UPC in optimized mode
• Imager Field of View : 45° H x 34° V nominal
• Image Sensor : 1280 x 960 pixels
• Minimum Print Contrast : 20% Minimum Reflective Distance
• Skew Tolerance : +/- 60°
• Pitch Tolerance : +/- 60°
• Minimum Element Resolution : Code 39 - 5.0 mil

Applications
