Brand: TURTLE

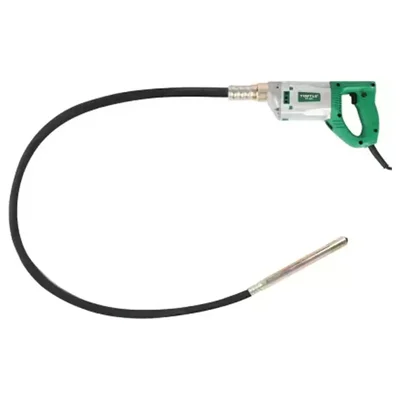

Turtle Gold 2000 W 50 mm Electric Concrete Vibrator with 3.5 m Vibrating Needle, 4800 RPM Speed (ST-955S)
SKU: TI-T2-23033
6 people have bought this recently
Delivery By: Dec 28 - Dec 30
MRP : ₹8500 ₹7263
15% OFF!
6 people have bought this recently Delivery By: Dec 28 - Dec 30 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹7263 (Including GST)
MRP : ₹8500
15% OFF!
Get Extra ₹109 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Turtle 2000W Concrete Vibrator
Strong Power Copper Motor
Self Locking Switch With 3.5m Vibrating Needle
Country of origin: China
Specifications
- Brand: TURTLE
- Weight (Approx.) : 12 kg
- Net Quantity : 1 pc
- Rod Diameter : 50 mm
- Model : ST-955S
- Rated Input Power : 2000W
- No-Load Speed : 4800 RPM
- Frequency : 50 Hz
- Voltage : 220 V
- Needle Size : 3.5 m x 50 mm
Description
Turtle Gold 2000W 50 mm Electric Concrete Vibrator (ST-955S) is designed for high-capacity concrete consolidation. With its powerful 2000W motor and 3.5 m vibrating needle, this tool expertly consolidates concrete up to 3.5 m depth, ensuring uniform density and strength in construction and infrastructure projects.
Features
:- Good Quality Aluminium Housing
- Compact design for easy maneuverability
- Effective in removing air pockets and excess water from concrete
- Ensures uniform consolidation and increased strength
- Suitable for various concrete applications (foundations, slabs, columns, etc.)
- Air Housing Design
- Fast Heat Dissipation
- Self-Locking Switch for Long Hours Work
Applications
:Turtle's 2000W 50 mm Electric Concrete Vibrator (ST-955S) is perfect for:
- High-rise buildings
- Bridge construction
- Highway projects
- Industrial plants
- Dams and water treatment plants
- Foundation and slab construction
Usage
:User Instructions :
- Preparation : Ensure the vibrator is connected to a stable 220V power source. Check that the needle and shaft are securely fastened to the motor unit.
- Insertion : Insert the vibrating needle vertically into the fresh concrete. The tip of the needle should penetrate the layer below the current pour (if applicable) for better bonding.
- Vibration : Allow the vibrator to remain in the concrete for 5 to 15 seconds until air bubbles stop rising to the surface and the concrete develops a glossy sheen.
- Withdrawal : Slowly and steadily withdraw the needle, keeping it immersed until just before it leaves the concrete. This prevents creating a hole or void where the needle was.
- Spacing : Space your insertions systematically, typically at intervals of 450mm to 750mm, ensuring the area of influence overlaps with the previous insertion.
- Avoidance : Do not strike the rebar or formwork with the vibrating head, as this can damage the equipment and the form.
Maintenance :
- Cleaning : Immediately after use, thoroughly clean the vibrating needle and shaft to remove all traces of concrete before it cures. Use water and a soft brush/cloth.
- Inspection : Regularly inspect the flexible shaft for cracks or kinks and the needle head for wear or damage. Check the motor housing and cable for signs of damage.
- Lubrication : Periodically check and, if required, re-lubricate the flexible shaft/couplings according to the manufacturer's manual to ensure smooth operation and prevent overheating.
- Storage : Store the vibrator in a dry, dust-free place. Never hang the motor unit by the flexible shaft. Coil the shaft loosely for storage.
- Electrical Check : Ensure the power cable and plug remain in excellent condition. Replace them immediately if any cuts or fraying are noticed.
