Brand: Nutronics

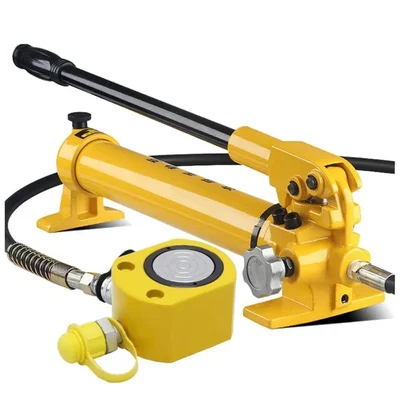

Nutronics 30T 14mm Ultra-Thin Short Stroke Low-Profile Lifting Hydraulic Cylinder Jack Ram with CP-700 Hand Pump
SKU: TI-N3-77027
Estimated Delivery By: Jul 17 - Jul 19
MRP : ₹25200 ₹18599
26% OFF!
Estimated Delivery By: Jul 17 - Jul 19 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹18599 (Including GST)
MRP : ₹25200
26% OFF!
Get Extra ₹279 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
An industrial-grade, 30-ton ultra-thin hydraulic cylinder jack with a 14mm short stroke and CP-700 manual hand pump, designed for heavy lifting in tight, confined spaces.
Country of origin: China
Specifications
- Brand: Nutronics
- Weight (Approx.) : 16.9 kg
- Load Capacity : 30 ton
- Lifting Capacity : 30 ton
- Lifting Range : 62 - 76 mm
- Type: Ultra-thin Hydraulic Cylinder Jack / Ram
- Lifting Capacity: 30 Tons (30T)
- Stroke: 14 mm
- Minimum Height: 62 mm
- Pump Included: CP-700 manual hydraulic hand pump
- High Pressure: 700 kg
- Low Pressure: 20 kg
- Oil Storage Capacity: 900 cc
- Vehicle Service Type: Sport Utility Vehicle, Automotive
- Automotive Fit Type: Universal Fit
Description
The Nutronics is a specialized, ultra-low-profile hydraulic cylinder jack built to provide immense lifting power in the most confined spaces. With a massive 30-ton capacity and an extremely short 14mm stroke, it excels at applications where conventional jacks simply cannot fit. This hydraulic ram operates on a single-acting principle with a spring-loaded return. Pressure from the included CP-700 manual hydraulic hand pump extends the piston, while a powerful internal spring retracts it automatically once the pressure is relieved. This design ensures quick, reliable, and safe operation. It must be used with the included hydraulic pump to maintain the oil pressure necessary to withstand heavy-duty industrial use.
Features
:- Ultra-Low Profile: Engineered specifically for tight, highly restricted spaces where standard jacks cannot fit.
- Massive Lifting Capacity: Safely and efficiently handles heavy-duty industrial loads up to 30 tons.
- Single-Acting Spring Return: Piston extends smoothly under hydraulic fluid pressure and retracts automatically via a powerful internal spring when pressure is released.
- Complete System Setup: Arrives with a high-capacity manual hand pump, ready for immediate operational deployment.
- Universal Automotive Design: Fully compatible with SUVs and a wide range of general automotive vehicle servicing needs.
Applications
:- Bridge Construction & Maintenance: Perfect for leveling, lifting, and shifting heavy structural bridge segments.
- Building & Construction: Used for lifting foundations, structural steel adjustments, and heavy beam placement.
- Machinery Industries: Ideal for the installation, leveling, and maintenance of heavy industrial machinery and manufacturing equipment.
- Automotive & SUV Service: Great for specialized low-clearance vehicle lifting and heavy-duty frame alignment.
Usage
:- Ensure the hydraulic cylinder jack is placed on a flat, stable, and completely rigid surface capable of supporting the full weight of the load.
- Firmly connect the high-pressure hose running from the CP-700 manual hand pump to the inlet valve on the hydraulic cylinder ram.
- Completely close the pressure release valve on the manual hand pump by turning it tightly clockwise.
- Operate the hand pump lever smoothly and steadily to pump hydraulic oil into the cylinder, extending the piston to lift your load.
- Once the lifting operation is complete, slowly turn the pump's release valve counter-clockwise to allow the internal spring to automatically retract the piston.
