Brand: Insize

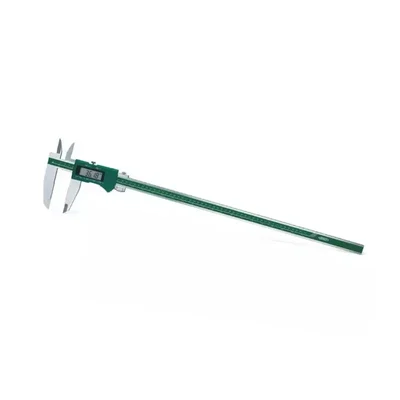

Insize 1016 mm Digital Caliper 1136-1002 Model, 60mm Upper Jaw Length
SKU: TB-IN-64935
Estimated Delivery By: Mar 6 - Mar 8
MRP : ₹59999 ₹56999
5% OFF!
Estimated Delivery By: Mar 6 - Mar 8 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹56999 (Including GST)
MRP : ₹59999
5% OFF!
Get Extra ₹855 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Insize 1016 mm Digital Caliper 1136-1002 Model
60mm Upper Jaw Length
60mm Upper Jaw Length
Country of origin: India
Specifications
- Brand: Insize
- Model No : 1136-1002
- Measurement Range : 0 - 1016 mm
- Resolution : 0.01 mm
- Measurement Range : 0-40 Inch
- Resolution : 0.0005 Inch
- Material : Stainless Steel
- Power Supply : Battery CR2032
- Overall Length : 1220 mm
- Display : LCD
- Accuracy : ±0.08 mm
- Lower Jaw Length : 150 mm
- Upper Jaw Length : 60 mm
Description
The Insize 1136-1002 Digital Caliper is a heavy-duty, long-range industrial instrument with a measuring capacity of 609.6 mm (24 inches). This model is specifically made for precision measurements of large-scale workpieces, featuring 150 mm lower jaws and 60mm upper Jaw Lengththat give the deep reach required to bridge thick components, oversized flanges and large-diameter piping
Features
:- Extended Measuring Reach: The 150 mm lower jaw depth allows for measurements that standard calipers cannot handle, reaching deep into or over workpieces to capture thicknesses at the center.
- Material: Constructed from Hardened Stainless Steel, ensuring the beam remains rigid and does not "flex" or "bow" even when fully extended to 24 inches.
- Button function: on/off, zero, mm/inch, ABS, data preset.
Applications
:- Industrial Pipe & Flange Inspection: Measuring the outside diameter (OD) and wall thickness of large-scale industrial piping.
- Heavy Machinery Maintenance: Checking the dimensions of large shafts, bearings, and hydraulic cylinders.
- Automotive & Aerospace: Measuring large engine blocks, airframe structural brackets, and wide tire treads.
- Foundry Work: Ideal for large castings where the deep reach is needed to measure across irregular, bulky surfaces.
