Brand: UTL

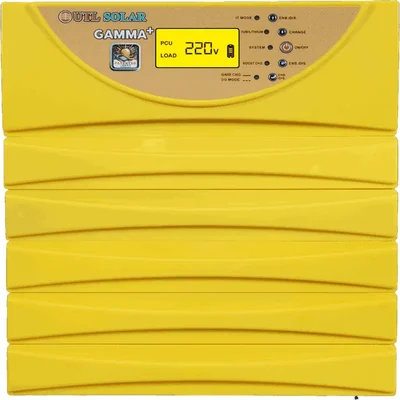

UTL GPP 3400 - Gamma+ Solar Inverter 3000VA 24V Solar Inverter For Home, Office & Shops
SKU: TI-UG-73426
Estimated Delivery By: Jun 14 - Jun 16
MRP : ₹30500 ₹24300
20% OFF!
Estimated Delivery By: Jun 14 - Jun 16 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹24300 (Including GST)
MRP : ₹30500
20% OFF!
Get Extra ₹365 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
UTL GPP 3400 - Gamma+ Solar Inverter
3000VA 24V Solar Inverter For Home, Office & Shops
Country of origin: India
Specifications
- Brand: UTL
- Weight (Approx.) : 25 kg
- Model Name : GPP 3400
- Technology : rMPPT
- Max. output current : 9A
- Solar Power Maximum : 3000W
- Max. Battery Capacity : 200AH
- Switching Element : MOSFET
- Charger Topology : Boost Mosfet
- Operating Mode : Smart mode (Default)
- Optional DG Mode : Disable (Default)
- Operating DC Voltage : 24 volt
- Harmonic Voltage : <3% (Linear Load)
- Typical efficiency : >82%
- Output Waveform : Pure sine wave
- Input Voltage Range (Min – Max) Voc : 60V-106V
Parameters (Grid)
- Nominal Grid Voltage : 230V
- Nominal frequency : 50Hz
- Frequency Range : 47-53Hz
- Battery Charging Method 3 Stages : Bulk/Absorption/Float
- Default charging mode (TUB / LITHIUM) : Tubular
- Grid - Battery Charging Voltage (TUB) : Boost : 13.5-15V
- Grid - Battery Charging Voltage (TUB) : Float: 13-14.2V
- Grid - Battery Charging Voltage (LITHIUM) : Boost / Float: 13.5V-14.2V
- Grid Charging Current (Normal/Boost) : 1A-20A
- Optional Grid Charging (Enable/Disable) : Enable
- Grid Reconnect @ Battery Voltage (TUB) : 11-12V
- Grid Reconnect @ Battery Voltage (LITHIUM) : 12-13V
- Grid Low Cut Voltage (IT Mode Enable) : 170V ± 10V
- Grid Low Cut Recovery (IT Mode Enable) : 180V ± 10V
- Grid High Cut Voltage (IT Mode Enable) : 265V ± 10V
- Grid High Cut Recovery (IT Mode Enable) : 255V ± 10V
- Grid Low Cut Voltage (IT Mode Disable) : 100V ± 10V
- Grid Low Cut Recovery (IT Mode Disable) : 110V ± 10V
- Grid High Cut Voltage (IT Mode Disable) : 290V ± 10V
- Grid High Cut Recovery (IT Mode Disable) : 280V ± 10V
- Change Over (Battery to Mains) (IT Mode Enable/Disable) : < 8ms
- Change Over (Mains to Battery) : IT Mode Enable: < 12ms
- Change Over (Mains to Battery) : IT Mode Disable: < 30ms
Parameters (Inverter)
- Output Phase : 1Φ
- Nominal Output Voltage : 230V
- Output voltage range : 230V ± 10%
- Nominal Frequency : 50Hz/60Hz
- Max. Output Current : 9.0A
- Battery Low Buzzer (TUB) : Battery Low Cut - 0.3V
- Battery Low Cut (TUB) : 10-11.5V
- Battery Low Buzzer (LITHIUM) : Battery Low Cut - 0.3V
- Battery Low Cut (LITHIUM) : 11-12V
- Battery High Cut (TUB) : 16.5-17.5V
- Battery High Cut (LITHIUM) : 14.5-15V
- Output Waveform : Sinewave
- Typical Efficiency : >82 %
- Voltage Harmonic : < 3% (Linear Load)
- Over Load Capacity (IT Mode Disable) : > 100% After 30 sec delay (with alarm) 3 Time Auto Reset, 4th Time Shut Down
- Over Load Capacity (IT Mode Enable) : > 100% After 30 sec delay (with alarm) 1st Time Shut Down, > 150% Output Goes Down
- Protection : Overload, Battery Low, Battery High, Output Short Ckt, Battery Reverse (Fuse Blown), Over Heat @90°C ± 10°C, Over/Under frequency, I/P High, I/P Low, SPV High, SPV Low
- LED Indication : System ON, (IT mode, TUB/LITHIUM, Boost Chg, DG mode, Grid Chg.) Enable/Disable
- Switches (Micro) : System ON/OFF, UP, Down, Back, Enter (For LCD Calibration)
- Display (Multi Color) : Battery Voltage, Charging Current, Grid Voltage, Grid Frequency, Output Voltage, Output Frequency, Load %, Battery Graph, Overheat, SPV Current, Operating Mode (HYB/PCU/SMT), Solar energy (KWH).
Parameters (Solar)
- Switching Element : Mosfet
- Type of Charger : MPPT
- SPV Charging Voltage (TUB) : Boost: 14-15.5V
- SPV Charging Voltage (TUB) : Float: 13.1-14.5V
- SPV Charging Voltage (LITHIUM) : Boost / Float: 13.6-14.4V
- SPV Charging Current (Battery) : 11-40A
- Battery Charging Method 3 Stages : Bulk/Absorption/Float
- Efficiency : >94 %
Parameters (Environment)
- Operating Temperature : 0-45 °C
- Cooling : Fan
- Max. Relative Humidity @ 25°C (non Condensing) : 95%
- Noise @ 1 meter : 50 dB
- Standard Compliance : IP21
- Dimension (LXWXH) : (350x305.5x360) mm
Description
The Gamma Plus 3400 is a 3kVA, 24V MPPT solar inverter blends smart energy management, rugged reliability, and industry-leading r-MPPT technology. Designed for both residential and commercial setups, it ensures maximum solar energy conversion and seamless power supply, even under dynamic sunlight conditions. Gamma 3400 is compatible with both tubular and lithium ion batteries and due to its rMPPT technology, it offers the backup of 2 batteries in a single battery. If you are looking for an affordable solar inverter for home, you can go for the latest Gamma Plus 3400
Features
:1. Pure Sine Wave Output : The 24 Volt solar inverter features a pure sine wave output and delivers grid-quality power that ensures smooth performance and safety for all appliances, including sensitive electronics like computers, TVs, and medical equipment.
2. r-MPPT Charge Controller : The patented r-MPPT technology by UTL adapts to changing sunlight, capturing up to 30% more solar power than conventional inverters—even in cloudy conditions.
3. Multi-Color LCD Display : The inverter has a screen that shows you everything that’s happening. You can see:
- How much solar power you’re getting
- How much battery is left
- How much power your home is using
- Which mode the inverter is working in
It uses different colors to make reading easier.
4. Multi-Stage Charging : The inverter uses four charging stages to charge your battery in the best way:
- Bulk: Charges quickly at the start
- Absorption: Slows down to protect the battery
- Float: Keeps battery full without overcharging
- Equalization: Fixes battery balance for longer life
These steps help your battery last longer and work better.
5. Three Priority Modes : You can choose how you want the inverter to use power based on your needs:
- PCU Mode (Solar → Battery → Grid) : First it uses solar power, then battery, and lastly grid power.
- Smart Mode (Solar → Grid → Battery) : First solar, then grid electricity, and finally battery if needed.
- Hybrid Mode (Grid → Solar → Battery) : Starts with grid, then uses solar, and battery comes last.
