Brand: V-Guard

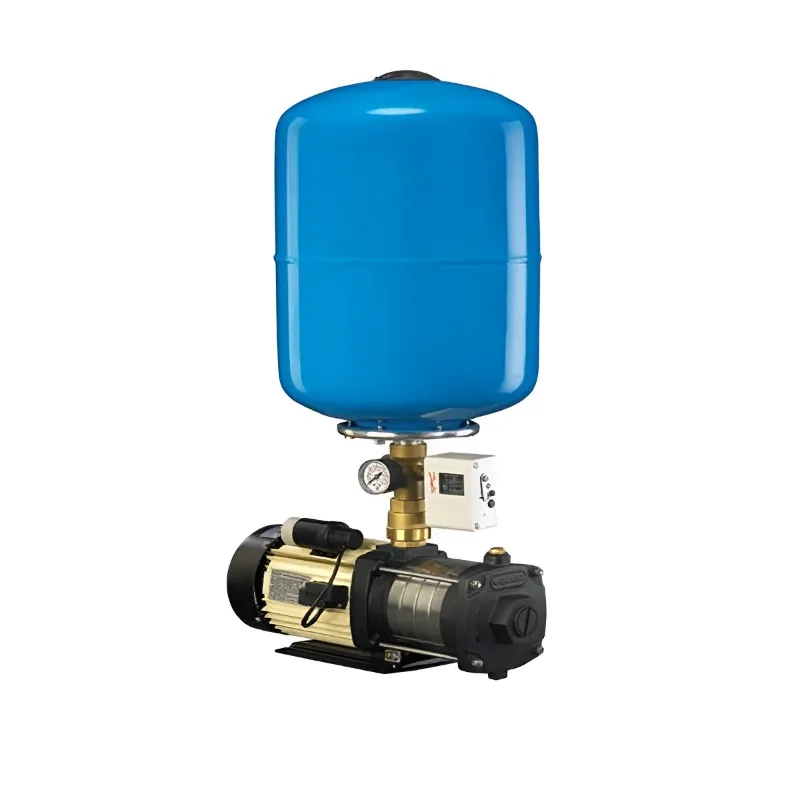

V-Guard(VB24-TF3A) 0.75 HP VB Series Centrifugal Booster Pump, with 24 Liters Tank(1 year warranty)
SKU: AB-VG-20221683
505 people have viewed this recently
Delivery By: Dec 24 - Dec 26
MRP : ₹26500 ₹25750
3% OFF!
505 people have viewed this recently Delivery By: Dec 24 - Dec 26 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹25750 (Including GST)
MRP : ₹26500
3% OFF!
Get Extra ₹386 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
V-Guard VB Series Centrifugal Booster Pump
36 meters (118 feet) head and 100 LPM flow rate
24 Liters Pressure Tank
1 year warranty
Country of origin: India
Specifications
- Brand: V-Guard
- Power : 0.75 hp
- Weight (Approx.) : 12 kg
- Flow Rate : 100 lpm
- Head : 36 meter
- Model No. : VB24-TF3A
- Product Type : Centrifugal Booster Pump
- Brand : V-Guard
- Motor Power : 0.75 HP (0.55 kW)
- Power : 180 to 240 V AC Supply
- Electricity Connection : Single Phase
- Max. Liquid Temperature : 40°C
- Ambient Temperature : 35°C
- No Load Speed : 2800 RPM
- Motor Winding : Copper
- Max. Suction Head : 7.5 meters (25 feet)
- Pipe Size (Suction x Delivery) : 25 x 25 mm
- Max. Head Range : Up to 36 meters (118 feet)
- Max. Flow Rate : Up to 100 LPM
- Pressure Tank Capacity : 24 Liters
Materials of Construction :
- Bearing : Double Sealed Ball Bearing
- Shaft : High quality alloy steel
- Motor Body : Aluminium
- Impeller & Diffuser Material : Stainless Steel (SS-304)
Warranty :
- One Year Warranty on Manufacturing Defects Only.
Description
A centrifugal booster pump uses an impeller to increase water velocity and pressure, discharging it at a higher rate and force. These pumps are commonly employed to enhance water pressure in pipelines, boosting flow for various domestic, commercial, and industrial applications where increased water pressure is required.
Features
:- The pumps are coupled to high efficient V-Guard induction motors
- The motors are Totally Enclosed Fan Cooled (TEFC), Capacitor Start & Run Type
- Also equipped with Thermal Overload Protector (TOP) to avoid coil burn out
- Using 99.99% pure super enameled copper wire for motor winding
