Brand: V-Guard

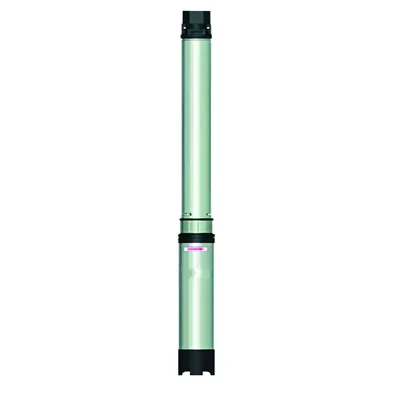

V-Guard (VBS3-F170/13) 1 HP Single Phase V3 Water Filled Borewell Submersible Pump With 1 Year Warranty
SKU: AB-VG-20221685
Delivery By: Dec 20 - Dec 22
MRP : ₹14190
Delivery By: Dec 20 - Dec 22 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹14190 (Including GST)
Get Extra ₹213 OFF on Prepaid Orders
Short Description
V- Guard 3 inch (80 mm) Borewell Submersible Pump
1 HP (0.75 kW) Single Phase And Water Filled
33 to 59 meters (108 to 194 feet) Head And 60 to 10 LPM Flow Rate
Country of origin: India
Specifications
- Brand: V-Guard
- Power : 1 hp
- Weight (Approx.) : 13 kg
- Flow Rate : 60 lpm
- Head : 59 meter
Description
V-Guard (VBS3-F170/13) 1 HP Single Phase V3 Water Filled Borewell Submersible Pump With 1 Year Warranty
Description :
- The V3 water-filled borewell submersible pump is a specific type of submersible pump that is designed for use in small to medium-sized borewells. The "V3" designation refers to the diameter of the pump, which is typically around 3 inches.
- These pumps are made of high-quality stainless steel, which makes them highly resistant to corrosion and wear. They are designed to be highly efficient, with a high discharge rate and low power consumption. They are also relatively quiet during operation.
Features :
- Least leakage loss poly wrapped winding wire.
- Hylum pad prevents initial stuck possibilities.
- Non return valve to avoid return flow and sand accumulation in pump.
- Rubber diaphragm balances the pressure fluctuations.
- Energy Efficient Motor
Specifications :
- Model No. : VBS3-F170/13
- Product Type : Borewell Submersible Pump
- Brand : V-Guard
- Motor Power : 1 HP (0.75 kW)
- Power : 180 to 240 V AC Supply
- Electricity Connection : Single Phase
- Borewell Size : 3 inch (80 mm)
- Motor Cooling Type : Water Filled
- Pipe Size (Suction x Delivery) : 25 x 25 mm
- Max. Head Range : 33 to 59 meters (108 to 194 feet)
- Max. Flow Rate : 60 to 10 LPM
- Weight : 1.18 kg (Approx.)
Materials of Construction :
- Body Material : Stainless Steel
- Motor Housing : Cast Iron
- Rotor Type : Balanced Copper Rotor
Warranty :
- One Year Warranty On Manufacturing Defects only.
