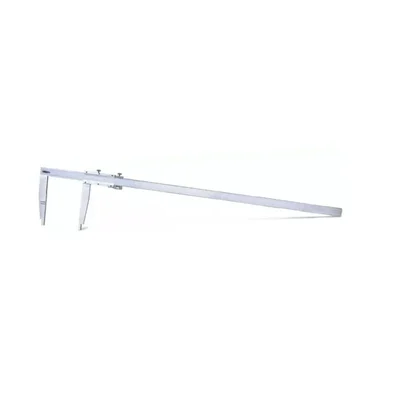

Insize 2000 mm Vernier Caliper with 200mm Lower Jaw Length, 1214-2000 Model

• Model No : 1214-2000
• Measurement Range : 0-2000 mm
• Resolution : 0.02 mm
• Lower Jaw Length : 200 mm
• Material : Stainless Steel
• Overall Length : 2320 mm
• Accuracy : ± 0.14 mm

Features

• Extended Jaw Reach: The 200 mm lower jaw length provides the "deep throat" access needed for measuring bulky parts and centered features.
• Fine Adjustment Carriage: Crucial for large-scale tools, this caliper includes a thumbwheel carriage for micro-positioning the jaws to achieve exact readings.
• Material: Constructed from Hardened Stainless Steel, ensuring the 2320 mm beam remains rigid and resistant to thermal expansion or corrosion.

Applications

• Heavy Engineering: Ideal for measuring the outside diameter (OD) of oversized industrial pipes, valves, and structural flanges.
• Foundry & Machining: Measuring across irregular raw castings where standard length jaws would be blocked by external ribs or fins.
• Marine & Aerospace: Used for dimensional verification of large ship engine components and airframe structural ribs.
• Workshop Reliability: A battery-free, purely mechanical solution that is always ready for use in harsh environments where electronics might fail.
