Brand : Wadfow

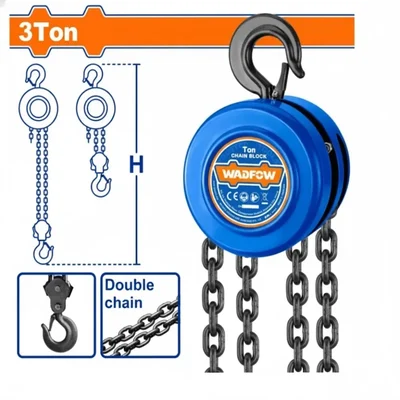

Wadfow 3 Ton Chain Pulley Block With 3 meter Chain - 3 meters Standard Lift (WCK2583)
SKU : TI-W3-49279
MRP : ₹11000
₹7950
28% OFF!
-
1
+
Get Extra ₹119 OFF on Prepaid Orders
Delivery By: Nov 26 - Nov 28
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Wadfow 3 Ton Chain Pulley Block
With 3 meter Chain - 3 meters Standard Lift
Country of origin: China
Specification
  • Brand: Wadfow
  • Weight (Approx.) : 20 kg
  • Load Capacity : 3 ton
  • Model No : WCK2583
  • Material : Mild Steel
  • Lifting Height : 3 meters
  • No of Load Chain : 2
  • Hook to Hook Distance : 470 mm
  • Chainpull to Lift Full Load : 404 N
Description
The Wadfow 3 Ton Chain Pulley Block with a 3-meter chain (model WCK2583) is a heavy-duty manual lifting device designed for lifting loads up to 3 tons with a standard lift height of 3 meters. It features a strong construction with hardened steel gears and grade 80 alloy steel load chain for durability and wear resistance. The pulley block operates smoothly with ball bearing mechanisms and a double pawl ratchet system to prevent accidental slippages, ensuring safety during use. The hand chain is galvanized for corrosion resistance, and the device is compact and lightweight for ease of handling. It typically comes packed in a wooden box for better transportation and protection. The effort required to lift the maximum load is approximately 404 Newtons, and the net weight is about 19.5 kg. This chain pulley block is ideal for use in warehouses, factories, and construction sites for manual heavy-duty lifting tasks.

Features

 :
  • Heavy-duty manual chain hoist designed for 3-ton lifting capacity with a standard 3-meter lift height.
  • Constructed with a robust steel frame built from steel plates using bolted or welded construction for strength.
  • Equipped with helical or worm gears, precision machine-cut from alloy steel and case hardened for surface durability.
  • Automatic mechanical ratchet and pawl type load brake to prevent self-lowering of the load; load brake allows smooth load lowering without overheating.
  • Pawl and ratchet made of hardened and tempered steel with hardness of at least 40 and 30 HRC respectively for wear resistance.
  • Contains idler wheels shaped to avoid twisting of the chain with a large pitch diameter relative to chain size.
  • Forged steel hooks with safety latches following industry safety standards.
  • Load and hand chains made of grade 80 alloy steel ensuring high tensile strength and durability.
  • Corrosion-resistant finish ensuring protection against rust and environmental damage.
  • Compact and portable design for ease of manual operation in industrial, construction, or warehouse settings.
  • Ratified to meet applicable industrial standards for safety and reliability.
  • Typically packaged securely for transportation, often in a wooden box.

Applications

 :
  • Construction sites for lifting and placing heavy materials.
  • Manufacturing plants for assembly, production, and material handling tasks.
  • Warehouses and logistics centers for loading, unloading, and moving heavy cargo.
  • Auto garages and workshops for lifting engines, parts, and equipment.
  • Bridge cranes, gantry cranes, double beam cranes, and single grinder cranes for precise heavy load handling.
  • Ports, shipyards, steel and cement industries, and power plants requiring robust lifting solutions.
  • Agriculture, mines, and docks for lifting equipment and goods where power supply may be unavailable.
