Brand: Wadfow

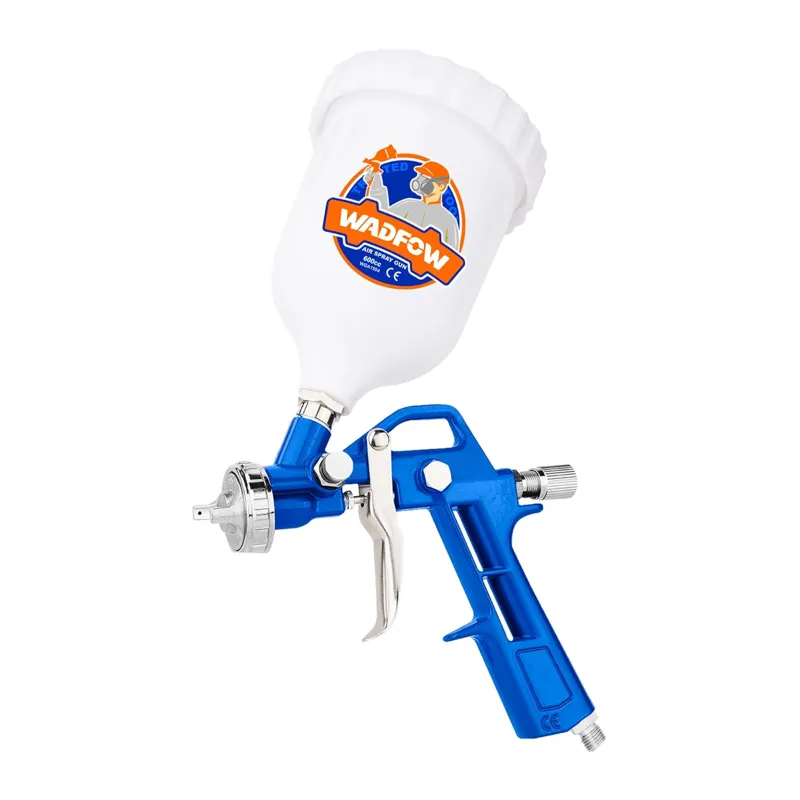

Wadfow 1.5 mm HVLP Air Spray Gun With 600ml Cup Capacity, Suitable for Base Coat (WGA1504)
SKU: TI-W1-21077
1371 people have viewed this recently
Delivery By: Dec 21 - Dec 23
MRP : ₹1850 ₹1090
41% OFF!
1371 people have viewed this recently Delivery By: Dec 21 - Dec 23 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹1090 (Including GST)
MRP : ₹1850
41% OFF!
Get Extra ₹16 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Wadfow HVLP Air Paint Spray Gun
600ml Paint Cup Capacity
4 Bar Max Pressure
Country of origin: China
Specifications
- Brand: Wadfow
- Weight (Approx.) : 900 gm
- Model No. : WGA1504
- Cup Capacity : 600ml
- Feed Type : Gravity
- Nozzle Size : 1.5 mm
- Pattern width : 180-250 mm
- Air Inlet : 1.4 Inch (0.63 cm)
- Air Consumption : 8-9 CFM
- Max. Pressure : 4 Bar
Description
The Wadfow 1.5 mm HVLP Air Spray Gun with 600 ml cup capacity (WGA1504) is a gravity‑feed spray gun designed for high‑quality base coat application on automotive panels, furniture, machinery, and other smooth surfaces. Its 1.5 mm nozzle, 600 ml cup, and HVLP performance give good atomization, control, and coverage while reducing overspray and paint wastage.
Features
:- Standard 1.5 mm nozzle optimized for base coats, primers, and medium‑viscosity paints.
- 600 ml gravity cup capacity balances spray time with manageable gun weight.
- HVLP / air‑assisted design with operating pressure 3–4 bar for efficient atomization and reduced overspray.
- Pattern width 180–250 mm for fast coverage of panels and large surfaces.
- Air consumption roughly 4.2–7.1+ CFM, suitable for common workshop compressors in the 2–3 HP class.
- Gravity feed design improves material use and makes cleaning easier.
- Fluid control, pattern control, and air adjustment give fine tuning for different materials and jobs.
- Optional nozzle range (approx. 1.2/1.3–1.8 or up to 2.5 mm depending on region) for more versatility.
Applications
:- Automotive refinishing : Base coats, primers, and clear/colour coats on car, bike, and small vehicle panels.
- Woodworking and furniture : Spraying base coats, sealers, and lacquers on doors, cabinets, tables, and decor pieces.
- Metal fabrication : Coating machinery, frames, and fabricated parts with primers and topcoats.
- Household and appliances : Painting doors, grills, railings, appliances, and hardware for a smooth finish.
- General industry and construction : Coating metal structures, equipment, and construction components with protective layers.
Usage
:- Connect the spray gun to a clean, dry compressed air supply (regulator set to around 3–4 bar at the gun inlet).
- Thin paint to the proper viscosity recommended for HVLP and strain it, then fill the 600 ml gravity cup.
- Adjust fluid needle, fan pattern, and air flow using the control knobs to match your material and job size.
- Hold the gun about 15–20 cm from the surface and move in smooth, overlapping passes (about 50% overlap) to achieve an even base coat.
- Between coats, keep the nozzle clean; after finishing, empty the cup and flush the gun with appropriate thinner until all passages are clean, then store dry.
