Brand: Generic ( Made in India )

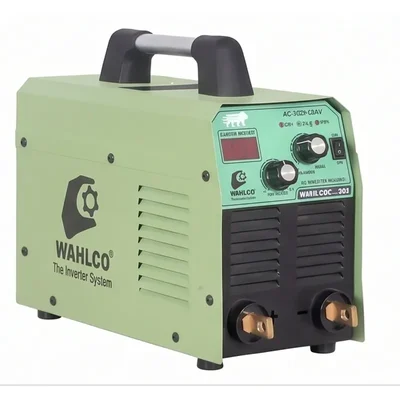

Wahlco ARC200 200A Single Phase IGBT Inverter Welding Machine for 1-8mm Metal Fabrication - ARC200
SKU: SI-A2-72942
Estimated Delivery By: Jun 23 - Jun 25
MRP : ₹9575 ₹7979
17% OFF!
Estimated Delivery By: Jun 23 - Jun 25 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹7979 (Including GST)
MRP : ₹9575
17% OFF!
Get Extra ₹120 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
The Wahlco ARC200 is a powerful, single-phase 200 Amp inverter welding machine designed for efficient MMA welding across a 1mm to 8mm thickness range.
Features a highly portable 5-8 kg frame and advanced IGBT technology.
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Weight (Approx.) : 8 kg
- Output Current Range : 200 amp
- Technology : IGBT
- Machine Type: ARC / MMA (Inverter Welding Machine)
- Input Voltage: AC 220V ±15% (Single Phase System)
- Frequency: 50/60 Hz (Standard Input Frequency)
- Input Power Capacity: 5.8 – 9.4 KVA (Dependent on Load and Setting)
- No-Load Voltage: 54 – 70 V (Standard Safety Range)
- Rated Duty Cycle: 60% (At Maximum Rated Output)
- Efficiency Rating: 85% (Class B Energy Efficiency)
- Power Factor: 0.70 – 0.93 (Variable Based on Output Load)
- Electrode Size Compatibility: 1.6 – 4.0 mm (Recommended Core Diameter)
- Welding Thickness Capability: 1 – 8 mm (Dependent on Material and Technique)
- Cooling System: Forced Air Cooling (Internal Fan System)
- Insulation Class: Class F (Standard Thermal Insulation)
- Protection Class: IP21S (Enclosure Protection Rating)
Description
The Wahlco ARC200 Inverter Welding Machine is engineered to deliver reliable and stable arc performance for diverse metal fabrication tasks under optimal conditions. Utilizing advanced IGBT/MOSFET technology, it offers an adjustable 20 to 200 Amp output to accommodate various welding demands while optimizing power efficiency. This lightweight and compact unit is designed for portability and user convenience, making it a highly capable tool for both workshop and on-site applications. Equipped with built-in safety features, it supports stable operation when used within its specified standard parameters.
Features
:- Advanced Inverter Technology: Employs premium IGBT and MOSFET inverter components to help ensure a more stable welding arc and highly efficient energy consumption.
- Adjustable Output Current: Features a versatile range from 20A up to 200A, allowing users to fine-tune settings depending on material type and specific project needs.
- Optimized Duty Cycle: Offers a 60% rated duty cycle, enabling consistent, mid-to-heavy-duty operation under standard operating environments.
- Portable and Lightweight: Weighs approximately 5 to 8 kg, providing a highly portable solution that is easy to transport across different job sites.
- Forced Air Cooling: Integrated with an internal forced air cooling system to assist with thermal management and protect internal electronics during prolonged use.
- Insulated and Protected: Built to Insulation Class F and Protection Class IP21S standards to support safe operation against light moisture and common debris.
Applications
:- Light to medium industrial metal fabrication and assembly workshops.
- On-site construction, structural welding, and structural steel installation.
- Automotive repair, chassis maintenance, and agricultural machinery restoration.
- Home DIY, hobbyist metalwork, and general property maintenance.
Usage
:- Ensure the machine is connected to a stable, single-phase AC 220V (±15%) power supply with correct grounding before switching the unit on.
- Select the appropriate welding electrode size (1.6mm to 4.0mm) and adjust the current dial to suit the thickness of the target metal workpieces.
- Wear certified personal protective equipment, including an auto-darkening welding helmet, heat-resistant gloves, and protective clothing prior to initiating an arc.
- Avoid exceeding the specified 60% duty cycle limit during heavy operation to let the internal components cool down appropriately.
Maintenance
:- Keep the welding machine in a clean, dry storage environment when not in use to protect it against moisture ingress.
- Periodically blow out the internal dust and debris accumulation using low-pressure dry compressed air through the ventilation grilles.
- Regularly inspect all electrical cables, electrode holders, and earth clamps for standard wear and tear or loose connections
