Brand : GRITSON

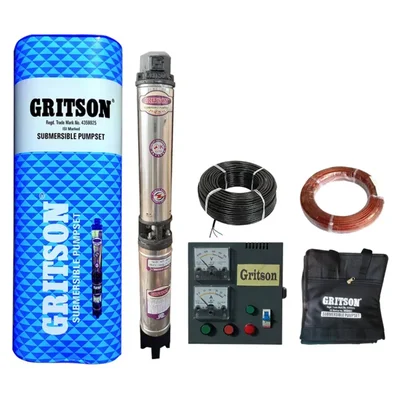

Gritson 0.75Hp 8 Stage(4 inch) V4 1Phase Water Cooled Submersible Pump With CP & Accessories, 32m Head - 1 Year Warranty
SKU : TI-G0-37403
MRP : ₹13000
₹9499
27% OFF!
-
1
+
Get Extra ₹142 OFF on Prepaid Orders
Delivery By: Jun 13 - Jun 15
Add to Cart
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
GRITSON 0.75 HP 8 Stage(4 inch) Submersible Pump With CP & Other Accessories
32 Meter Max. Head
5000 LPH Max. Discharge
1 Year Warranty

SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Specification
  • Brand: GRITSON
  • Power : 0.75 hp
  • Weight (Approx.) : 15 kg
  • Flow Rate : 83 lpm
  • Head : 32 meter
  • Product Name : Borewell Submersible Pump
  • Wattage : 0.55 kW
  • Electricity Connection : Single Phase
  • Rated Voltage Range : 160-220 Volt, 50 Hz, AC Power Supply
  • Current Rating : 7 Amp
  • No Of Stages : 8
  • Cora : 2
  • Type : V-4
  • Delivery : 1.25 Inch
  • Max. Head : 32 Meter (104 Feet)
  • Max. Discharge Rate : 5000 LPH (83 LPM)
  • Borewell Size : 100 mm (4 Inch)
  • Outlet Pipe Size : 1.25 Inch (31.75 mm)
  • Cooling Type : Water Filled

Material Of Construction :
  • Thrust Bearing : Carbon
  • Pump Housing : Stainless Steel
  • Pump Shaft : Stainless Steel
  • Motor Housing : Stainless Steel
  • Motor Shaft : Stainless Steel
  • Motor/Pump Bushes : Gun Metal
  • Impeller : Noryl
  • Diffuser : Noryl
  • Non Return Valve (NRV) : Cast Iron
Description
This Gritson 0.75HP V4 1-phase submersible pump is water-cooled and designed for efficient water extraction. It features an 8-stage (4-inch) impeller, capable of lifting water up to a 32-meter head. The package includes a control panel (CP) and essential accessories for installation. It comes with a 1-year warranty, ensuring reliability and peace of mind.

Features

 :
  • Compact designed, High Operating Efficiency.
  • The voltage range is 160 - 220 Volts protects the motor from burning due to lower/higher voltage
  • Higher output, lesser power consumption
  • ISI Certified.

Accessories

 :
  • Submersible Pump
  • Control Panel
  • 30 Meter Safety Wire
  • 30 Meter Submersible Cable
  • Bag

Applications

 :
  • Domestic and community water supply.
  • Rural water supply
  • Gardening and small farm irrigation.
  • Construction site.
  • Water supplies for high rise building.

Warranty :
  • 1 Year Warranty On Manufacturing Defects Only

Warranty Terms :
  • Dry Run Accidental Damages Are not covered in the warranty
  • For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
  • You have to send the product to the sellers warehouse.
  • Buyer has to bear the courier charges of both side for sending the product.
