Brand: Generic ( Made in India )

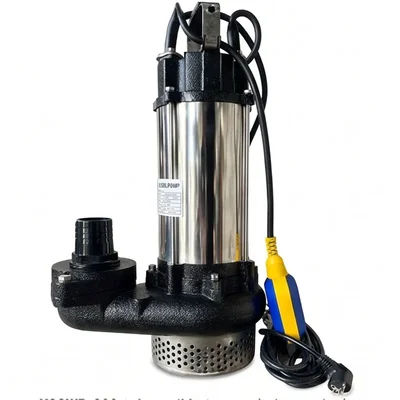

Kisan 2HP 50mm Submersible Sewage Pump with 20mm Solid Handling, Cast Iron Body, Heavy Duty Effluent Transfer, KSSWP-200
SKU: TI-PQ-42262
Estimated Delivery By: Jul 11 - Jul 13
MRP : ₹24300 ₹18000
26% OFF!
Estimated Delivery By: Jul 11 - Jul 13 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹18000 (Including GST)
MRP : ₹24300
26% OFF!
Get Extra ₹270 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Kisan KSSWP-200 is a heavy-duty 2 HP (1.5 kW) submersible sewage pump.
50 mm (2-inch) outlet
50 mm (2-inch) outlet
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Weight (Approx.) : 25 kg
- Power : 2 hp
- Flow Rate : 530 lpm
- Head : 16 meter
- Pump Type: Sewage Submersible Pump
- Motor Power: 2 HP (1.5 kW)
- Power Supply (Single Phase): 220 V, 50 Hz, 1Ø
- Power Supply (Three Pase): 380 V, 50 Hz, 3Ø
- Rated Speed: 2800 RPM
- Outlet Size: 50 mm (2 Inch
- Maximum Flow Rate: Up to 530 LPM
- Maximum Head: Up to 16 m
- Solid Handling Capacity: 20 mm
- Motor Type: Oil-Filled Induction Motor
- Insulation Class: Class F
- Protection Class: IP68
- Shaft Material: Stainless Steel
- Impeller Material: Cast Iron (FG 200)
- Pump Body Material: Cast Iron
- Mechanical Seal: Silicon Carbide (SiC) / Carbon Ceramic
- Rated Frequency: 50 Hz
- Voltage Range (1 Phase): 160 – 250 V
- Maximum Liquid Temperature: 30°C
- Duty Type: Continuous Duty
- Cable Length: 8 m (Approx.)
Description
The Kisan KSSWP-200 Submersible Sewage Pump represents a rugged engineering solution built to tackle the demanding environments of wastewater management. Combining a powerful 2 HP oil-filled induction motor with structural elements like a premium cast iron pump body and a stainless steel shaft, this pump delivers consistent performance under continuous duty conditions. Its robust non-clogging cast iron impeller is specifically configured to manage suspended solids up to 20 mm in size without drops in operational efficiency.
Engineered with dual compatibility options for both single-phase and three-phase electricity grids, it adapts flawlessly to residential setups or heavy industrial facilities.
Features
:- High-Torque 2 HP Motor: Equipped with an energy-efficient 2 HP (1.5 kW) oil-filled induction motor operating at 2800 RPM for rapid fluid displacement.
- Solid Handling Capabilities: Purpose-built to process raw sewage containing solid debris up to 20 mm in diameter smoothly without clogging.
- Heavy-Duty Construction: Built with a high-grade Cast Iron (FG 200) impeller and standard cast iron pump casing for extreme resistance against abrasion and wear.
- Advanced Seal Protection: Employs a premium Silicon Carbide (SiC) / Carbon Ceramic mechanical seal assembly coupled with an IP68 ingress enclosure rating.
- Dual Power Compatibility: Versatile configuration options to function on Single Phase (220V) or Three Phase (380V) at a standard 50 Hz frequency.
- Continuous Duty Cycle: Designed with Class F insulation ratings allowing the pump to work continuously and efficiently without overheating.
Applications
:- Disposing of raw municipal or residential sewage from centralized networks.
- Emptying and clearing sediment deposits from residential septic tanks.
- Transporting unscreened wastewater and graywater across localized treatment facilities.
- Clearing unexpected rainwater collections or flooding events from commercial basements.
- Transferring industrial effluents, processing residues, and chemical wash waters.
- Dewatering open trenches, construction pits, and underground utilities.
Usage
:Fully submerge the pump body completely under the surface fluid before turning on power to ensure necessary thermal cooling.
Verify your local power line parameters match the chosen configuration, noting the single-phase safe operational range of 160–250V.
Ensure that the liquid being processed does not exceed the safe operational temperature limit of 30°C.
Avoid moving, hoisting, or modifying the vertical alignment of the pump unit by pulling its attached 8-meter poweR cord.
Ensure the discharge lines connected to the 50 mm (2-inch) outlet are clear from sharp kinks or structural collapses.
Maintenance
:- Regular Casing Inspection: Routinely check the suction strainer base to manually clear away any compact strings or fibrous build-ups that exceed the 20 mm size limitation.
- Insulation Testing: Check insulation resistances periodically using a standard Megger to confirm that the Class F protective wiring insulation remains intact.
- Cable Assessment: Inspect the approximate 8-meter heavy-sheathed power cable for signs of abrasion, cuts, or weathering that could impact its IP68 seal.
- Oil Chamber Checks: Periodically check and top up the non-toxic dielectric cooling oil inside the induction motor chamber to prevent frictional damage to the mechanical seals.
