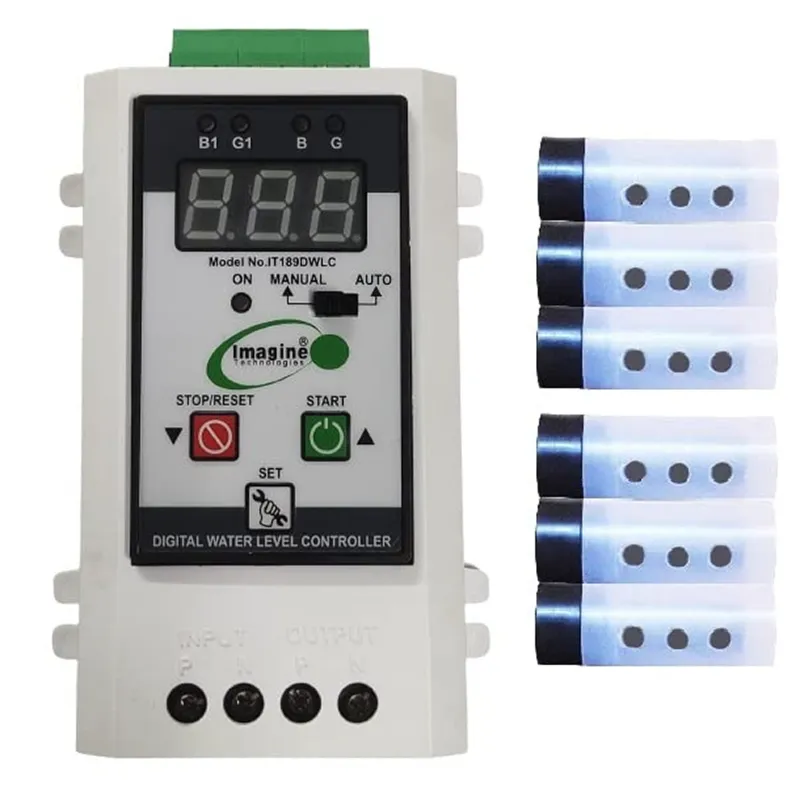

Imagine Technologies Fully Automatic Water Level Controller (IT189DWLC)

With 6 Sensors

1 Year Warranty

Country of origin: India

Brand: Imagine Technologies
Weight (Approx.) : 0.80 kg

Model No. : IT189DWLC
Product Name : Fully Automatic Water Level Controller
Rated Voltage : 220-250 volts AC Power Supply
Electricity Connection : Single Phase

Connection :

This Device You Will Get 6 Sensor; 3 For Upper Tank & 3 for Ground Tank .
Connect All Sensor As Per Given Diagram (G,B, R/R1, G1,B1) The Center Sensor (R) And (R1) Are Common For Both Tanks .
Now Do Wiring For Underground Tank.
In Underground Tank Install (R) Sensor In Bottom. Then( G )Sensor As Your Sump Level Sensor. They Protect Motor From Dry Run And Another (B) Sensor Are For High Level Sensor. (Note=Distance Between (G )And( B) Is Not More Than 1 Feet, So Put (G )Sensor And Above In 1 Feet Distance Place (B) Sensor, Do Not Add More Height)
Now Underground Tank Wiring Is Finish And Connect Sensor For Overhead Tank.
In Overhead Tank Install (R1) In Bottom Same As Above . Then( G1) Sensor As Your Low Level Sensor (That Means Motor Start Sensor) And Install (B1)Sensor As High Level Sensor For Overhead Tank (It Is Motor Cut Off Sensor When Tank Is Full, Motor Is Off). You Can Connect This All Sensor Through 1 mm 3 Core Wire. Sensor Should Not Float In Water.
Make It Steady At One Place That You Desired It. And Another Side Two Input Terminal And Two Output Terminal .
Connect Phase And Neutral To Input Terminal (230v Ac Power )And Connect Motor Phase And Neutral To Output Power

The Imagine Technologies Digital Fully Automatic Water Level Controller is a cutting-edge solution designed to efficiently manage water levels in tanks. Featuring six advanced carbon sensors, this controller provides precise monitoring and control, ensuring optimal water management for both residential and commercial applications.
