for Bottles upto 2ltr
Brand : Generic (Imported)

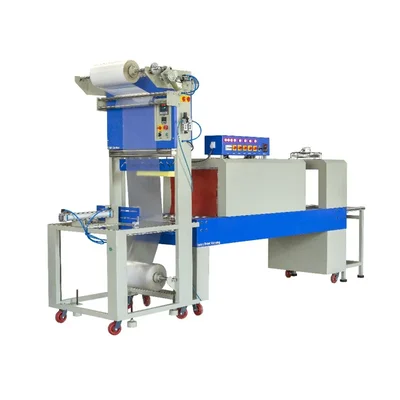

Automatic 1HP Web Sealer with Shrink Machine for 200ml to 2L Bottles and Group Packing of Glass, Syrup Bottles, Boxes
SKU : TI-SA-42322
MRP : ₹450000
₹319999
29% OFF!
-
1
+
Delivery By: Aug 18 - Aug 20
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Semi Automatic Web Sealer with Shrink Machine
Country of origin: China
Specification
- Brand: Generic (Imported)
- Weight (Approx.) : 500 kg
- Shrink Tunnel Size : 45x 22x16 inch (114.3 x 55.88 x 40.64 cm)
- Cooling Chamber Size : 16x22x16 inch (40.64 x 55.88 x 40.64 cm)
- Discharge Table Size : 24x18 inch (60.96 x 45.72cm)
- Blower Motor : 0.18 HP
- Phase : Three
- No. of Load Speed : 2800 rpm
- Body Material : Mild Steel (powder coated)
- Insulation : Cerawool
- Speed : Variable AC Drive
- Heater Size : 30 inch
- Switch : Salzer – L & T
- Electric Requirement : 440 AC
- Maximum Film Width : 620 mm
- Max. Sealing Width : 620 mm
- Main Motor : 1 HP
- Phase : Three
- Conveyor Belt Material : Stainless Steel (mesh type : flat)
- Timer : Multispan MDT - 1044
- Cylinder : Janatics
- Frl : Janatics
- Compressor : 6 crm @ 6 bar
- Air Requirement : 6 kg
- Sealing Method : Hot Bar (teflon coated )
- Bled : Wps with Teflon Cotted
- Cooling Fan : 1 - phase
- Temp. Controller : Selec tc-513 & tc-203
- Solenoid Valve : Janatics 220 V (AC)
- All Pneumatics Make : Janatics
- Smps : 24V DC
- Mcb : Schneider
- Roll Winding Motor : 12V DC
- Wire : Fiber Glass + Teflon coated
- Power Load : 10 kv Average
- Machine Operating Mode : Auto Mode as well as Manual Mode
- Bunch of 200 ml : 48 nos bottle (8x6) /bunch, speed - 4 bunch/min
- Bunch of 500 ml : 30 nos bottle (6x5) /bunch, speed - 4 bunch/min
- Bunch of 1L : 12 nos bottle (4x3) /bunch, speed - 5 bunch/min
- Bunch of 2L : 09 nos bottle (3x3) /bunch, speed - 5 bunch/min
- Dimension web sealer : 36 x 33 x 80 inch (91.44 x 83.82 x 203.2cm)
- Dimension shrink m/c : 86 x 31 x 61 inch(218.44 x 78.74 x 154.94 cm)
Description
This machine uses shrink film to wrap multi-bottle packs and then shrinks them uniformly in a high-efficiency shrink tunnel, ensuring tight, tamper-evident packaging. Engineered for medium-scale operations, this unit combines ease of use with reliability, reducing manual labor while enhancing packaging quality and speed.
Features
:- Semi-Automatic Operation : Reduces manual packaging effort
- Supports Bottles up to 2L : Ideal for multi-bottle shrink bundling
- High-Efficiency Shrink Tunnel : Ensures tight, clean, uniform shrinking
- Robust Build : Durable frame with heat-resistant insulation
Applications
:- Packaged Drinking Water
- Juices and Beverages
- Edible Oils & Cooking Products
- Agrochemicals & Pesticide Packaging
- Pharmaceutical Bottles
- FMCG Multipacks
