Brand : HPM
HPM 225 Amps Recoil and Self Start Diesel Run DC Welder Generator Machine with Battery
SKU : SG-DC-2032
MRP : ₹170000
₹147900
13% OFF!
-
1
+
Get Extra ₹2,219 OFF on Prepaid Orders
Delivery By: Jun 21 - Jun 23
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
HPM 225 Amps DC Welder Cum Generator Machine With Battery
Recoil and Self Start
Diesel Run
20V To 30V Working Voltage
12 Volt 35 Ah  Battery
Country of origin: India
Specification
Description

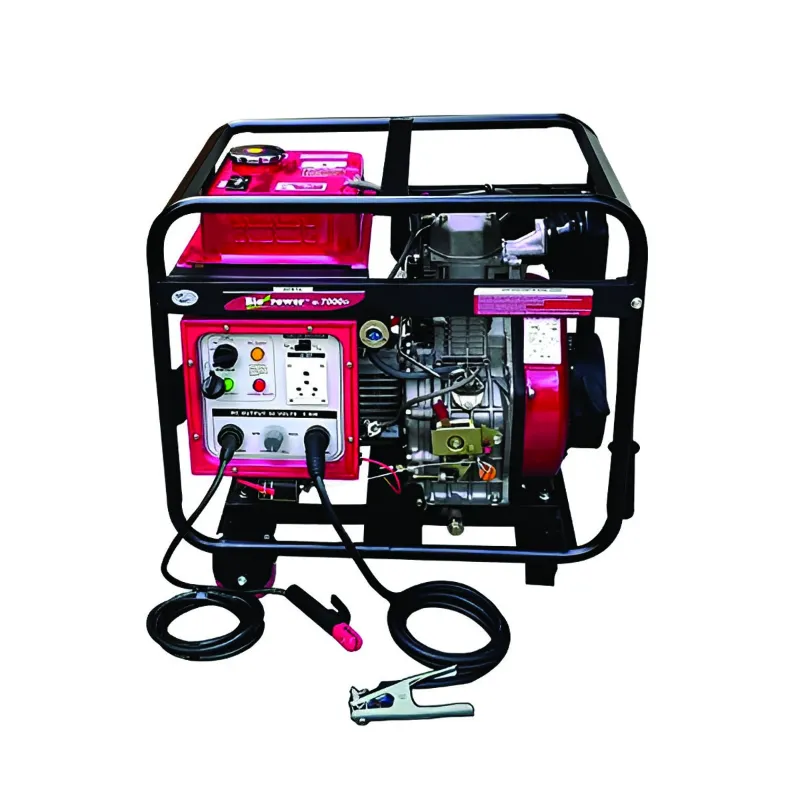

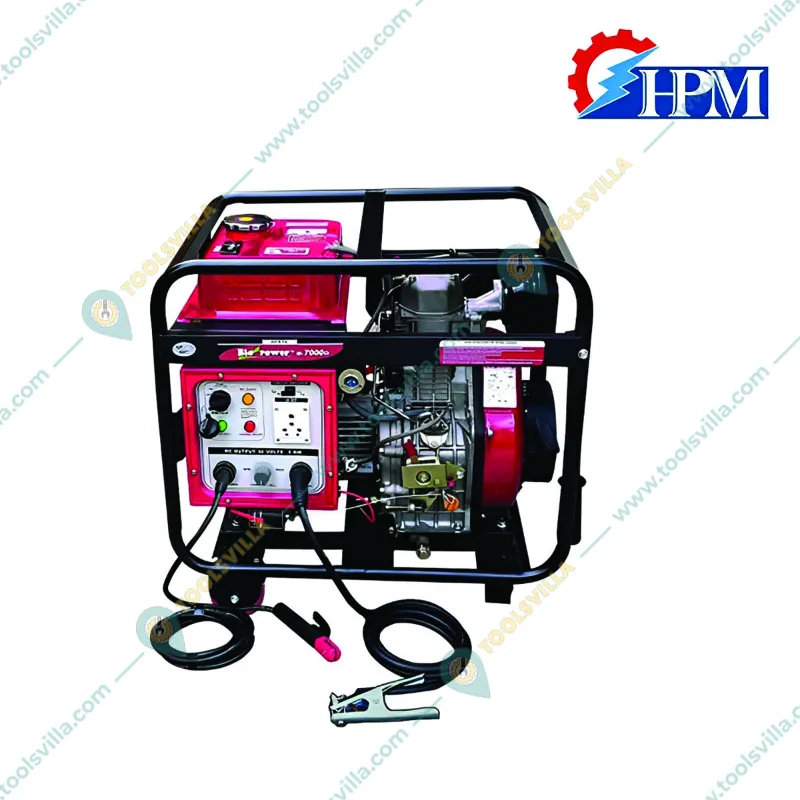

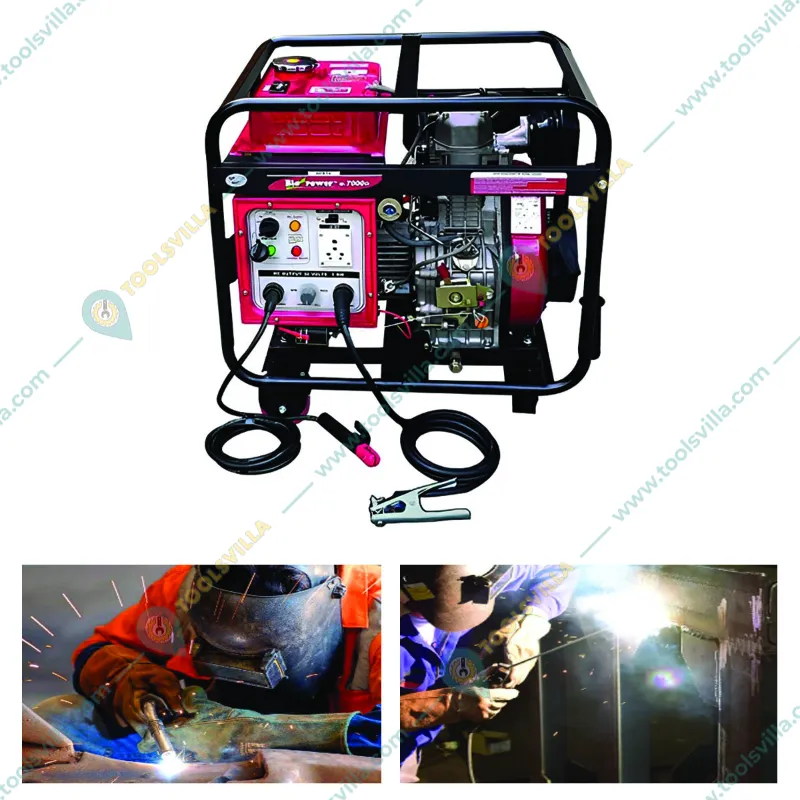

HPM 225 Amps Recoil and Self Start Diesel Run DC Welder Generator Machine with Battery

Description :
  • HPM-powered Diesel Portable & High Power Arc Welding Generator. This welding generator is appropriate for structural welding rods in the size of 4 mm (7018) and other hard-facing electrodes. Very effective for welding big diameter pipe lines.

Specifications :
  • Model No : HPW-7000D
  • Product Type : Welder Cum Generator
  • Brand : HPM
  • Dimension (LxWxH) : 710 x 510 x 715 mm
  • Weight : 120 Kg (Approx.)

DC Welding :
  • Maximum Output (Duty Cycle 60%) : 225 Amps.
  • Maximum Output (Duty Cycle 100%) : 200Amps.
  • Working Voltage : 20v to 30 v
  • Open Circuit Voltage : 65 Volt (Maximum)
  • Current Regulation Amps : 60-225 Amps
  • Rectifying Mode : SCR, Phase Controlled 3phase, Rectifying Bridge Twin SCR Block
  • Maximum Electrode Diameter : 2.6 mm to 4.0 mm
  • Alternator Type : Multiphase, Brush less with Rear Earth Magnet Rotor

Engine :
  • Engine Model : TP186F
  • Engine Type : 4 Stroke, OHV, Vertical, Single cylinder, direct injection.
  • Maximum Power : 10 HP
  • Bore x Stroke : 86×72 mm
  • Displacement : 416 cc
  • Starting System : Recoil  / Self Start
  • Fuel : Diesel
  • Fuel Tank Capacity : 13.5 Liters
  • Fuel Consumption : 1.1 Ltr/hr
  • Continuous Operating Hour : 13 hr.
  • Lube. Oil Capacity : 1650 ml.
  • Lubricating Oil Consumption : 4.3 gm/Hr

Standard Accessories :
  • Tool Kit : 1 Set
  • Welder Holder : 1 Set
  • Earthing Clamp with 3Mtr. Cable : 1 Set
  • Oil Funnel : 1 No.
  • Owner’s Manual : 1 No.
  • Battery Terminal : 1 Set
  • Battery Tray & Holding Set : 1 Set

Panel & Other Standard Features :
  • Aux. AC Output 230 Volt - 50 Hz : Inverter 2.0 KVA – 230 Volt AC, 50 Hz (Optional)
  • Overload Protection (NFB) : Yes (Inverter)
  • Power Indicator : No
  • Ampere Meter : Yes
  • Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
  • Fuel Level Gauge : Yes
  • Costar Wheels and handles : Yes (1 Set)

Battery Specification :
  • 12 Volt 35 Ah
  • Size =190×120×225 (L×W×H)
