Brand: HPM

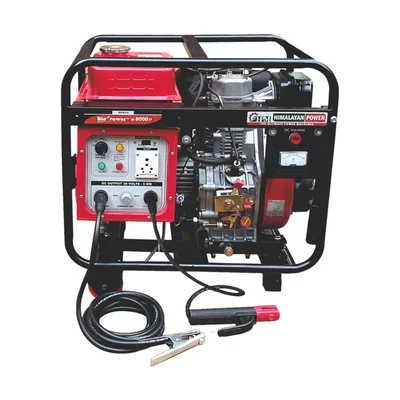

HPM 200 Amps Recoil & Self Start Diesel Run Generator Cum Welder Machine With Battery (GE-3P-W8000D)
SKU: SG-DC-2034
Delivery By: Dec 11 - Dec 13
MRP : ₹375040 ₹267890
29% OFF!
Delivery By: Dec 11 - Dec 13 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹267890 (Including GST)
MRP : ₹375040
29% OFF!
Get Extra ₹4,018 OFF on Prepaid Orders
Short Description
HPM 200 Amp Diesel Run Generator Cum Welder Machine
Recoil & Self Start
2.6 To 4.0 mm Electrode Diameter
14 HP Engine & 13 Liters Fuel tank Capacity
Country of origin: India
Specifications
- Brand: HPM
- Weight (Approx.) : 127.5 kg
- Fuel Used : Diesel
- Fuel Consumption : 1.3 l/hr
- Model No : GE-3P-W8000D
- Dimensions (L x W x H ) : 670 X 510 X 670 mm
DC Welding :
- Maximum Output (Duty Cycle 60%) : 200 Amps, 6 kW
- Working Voltage : 20V to 35V
- Open Circuit Voltage (OCV) : 65 Volt (Minimum)
- Current Regulation : 75-200 Amps.
- Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge
- Maximum Electrode Diameter : 2.6 mm to 4.0 mm
AC Generator :
- Alternator Type : Brushless with Rear Earth Magnet Rotor.
- AC Output (3-Phase) : 7000 VA (7 KVA)
- AC. Voltage (3-Phase) : 415 Volts ± 10 Volts, Three Phase
- Rated AC Current Per Phase : 11 Amps. Each Phase
- Circuit Breaker (3-Phase) : 12 Amps. Each Phase
- AC Output (Single Phase) : 4500 VA (4.5 KVA)
- Single Phase AC Voltage (No Load) : 240 Volts ± 10 V, Single Phase
- Single Phase AC Voltage (At Load) : 220 Volts ± 10 V, Single Phase
- Rated Current (Single Phase) : 17.5 Amps.
- Circuit Breaker (Single Phase) : 18 Amps.
- Frequency : 50 - 60 Hz.
- Class of Insulation : F
Engine :
- Engine Model : HM192F
- Engine Type : 4-Stroke, OHV, Vertical, Single Cylinder, Direct Injection
- Maximum Power : 14 HP
- Bore x Stroke : 92 × 72
- Displacement : 499 cc
- Starting System : Recoil Start & Self Start
- Fuel : Diesel
- Fuel Tank Capacity : 13 Liters
- Fuel Consumption Ltr./Hr. : 1.3 Ltr./hr.
- Continues Operating Hour : 10. hr.
- Lube. Oil Capacity : 1650 ml. (1.650 L)
- Lubricating Oil Consumption : 4.3 gm./Hr.
Accessories :
- AC Plug (3 Phase) : 1 Pc.
- AC Plug (Single Phase) : 1 Pc.
- Tool Kit : 1 Set
- Welder Holder With Cable : 1 Set
- Earthling Clamp With 3 Meter Cable : 1 Set
- Oil Funnel : 1 No.
- Owner’s Manual : 1 No.
- Battery Terminal : 1 Set
- Battery Tray & Holding Set : 1 Set
Panel And Other Standard Features :
- A.C. Circuit Protector (Single Phase) : Yes
- A.C. Circuit Breaker Protector (3 Phase) : Yes
- Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
- Low Fuel Protection : Yes
- A.C. Pilot Lamp : Yes
- Fuel Level Gauge : Yes
- A.C. Output Sockets (Single Phase) : Yes (1 No.)
- A.C. Output Sockets (3 Phase) : Yes (1 No.)
- Digital Hour Meter & Frequency (Hz.) Meter : Yes
- Costar Wheels and handles : Yes (1 Set)
Battery Capacity :
- 12 Volt 35 Ah
Note :
- Do not use the welder for work other than welding.
- Do not touch the live part.
- Do not solder in places where skimming, cleaning and spraying are required.
- When using, please wear a protective cover or protective clothing.
Description
Diesel Portable Arc Welder Cum Generator Machine Suitable for All types of General Purpose Structural Welding, Light, & Medium Welding Jobs, up to 4 mm Electrode.
Specifications :
- Model No : GE-3P-W8000D
- Product Type : Welder Cum Generator
- Brand : HPM
- Dimensions (L x W x H ) : 670 X 510 X 670 mm
- Weight : 127.5 kg (Approx.)
DC Welding :
- Maximum Output (Duty Cycle 60%) : 200 Amps, 6 kW
- Working Voltage : 20V to 35V
- Open Circuit Voltage (OCV) : 65 Volt (Minimum)
- Current Regulation : 75-200 Amps.
- Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge
- Maximum Electrode Diameter : 2.6 mm to 4.0 mm
AC Generator :
- Alternator Type : Brushless with Rear Earth Magnet Rotor.
- AC Output (3-Phase) : 7000 VA (7 KVA)
- AC. Voltage (3-Phase) : 415 Volts ± 10 Volts, Three Phase
- Rated AC Current Per Phase : 11 Amps. Each Phase
- Circuit Breaker (3-Phase) : 12 Amps. Each Phase
- AC Output (Single Phase) : 4500 VA (4.5 KVA)
- Single Phase AC Voltage (No Load) : 240 Volts ± 10 V, Single Phase
- Single Phase AC Voltage (At Load) : 220 Volts ± 10 V, Single Phase
- Rated Current (Single Phase) : 17.5 Amps.
- Circuit Breaker (Single Phase) : 18 Amps.
- Frequency : 50 - 60 Hz.
- Class of Insulation : F
Engine :
- Engine Model : HM192F
- Engine Type : 4-Stroke, OHV, Vertical, Single Cylinder, Direct Injection
- Maximum Power : 14 HP
- Bore x Stroke : 92 × 72
- Displacement : 499 cc
- Starting System : Recoil Start & Self Start
- Fuel : Diesel
- Fuel Tank Capacity : 13 Liters
- Fuel Consumption Ltr./Hr. : 1.3 Ltr./hr.
- Continues Operating Hour : 10. hr.
- Lube. Oil Capacity : 1650 ml. (1.650 L)
- Lubricating Oil Consumption : 4.3 gm./Hr.
Accessories :
- AC Plug (3 Phase) : 1 Pc.
- AC Plug (Single Phase) : 1 Pc.
- Tool Kit : 1 Set
- Welder Holder With Cable : 1 Set
- Earthling Clamp With 3 Meter Cable : 1 Set
- Oil Funnel : 1 No.
- Owner’s Manual : 1 No.
- Battery Terminal : 1 Set
- Battery Tray & Holding Set : 1 Set
Panel And Other Standard Features :
- A.C. Circuit Protector (Single Phase) : Yes
- A.C. Circuit Breaker Protector (3 Phase) : Yes
- Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
- Low Fuel Protection : Yes
- A.C. Pilot Lamp : Yes
- Fuel Level Gauge : Yes
- A.C. Output Sockets (Single Phase) : Yes (1 No.)
- A.C. Output Sockets (3 Phase) : Yes (1 No.)
- Digital Hour Meter & Frequency (Hz.) Meter : Yes
- Costar Wheels and handles : Yes (1 Set)
Battery Capacity :
- 12 Volt 35 Ah
Note :
- Do not use the welder for work other than welding.
- Do not touch the live part.
- Do not solder in places where skimming, cleaning and spraying are required.
- When using, please wear a protective cover or protective clothing.
