Brand : HPM

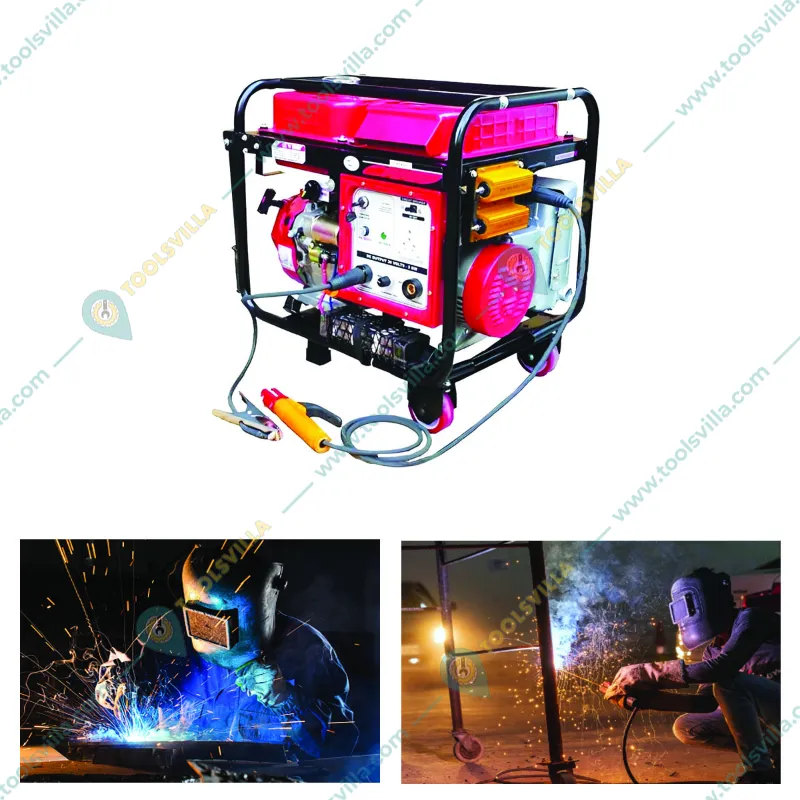

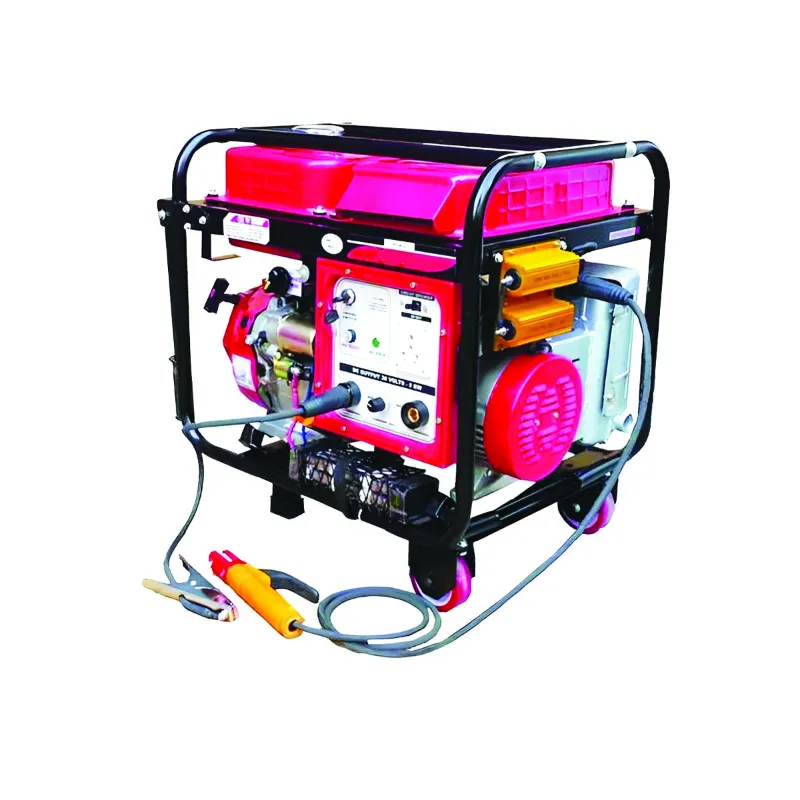

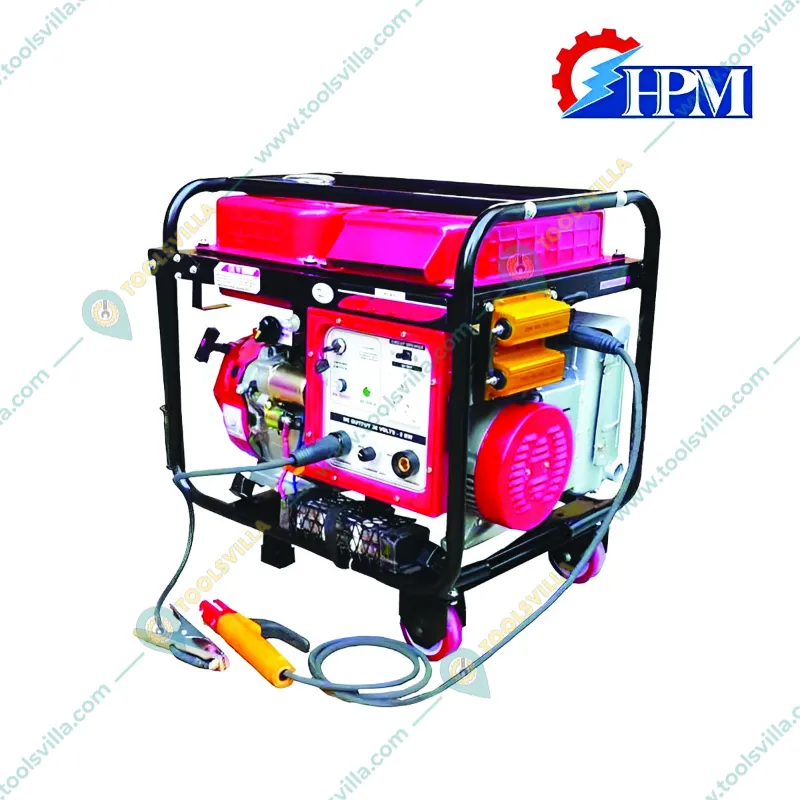

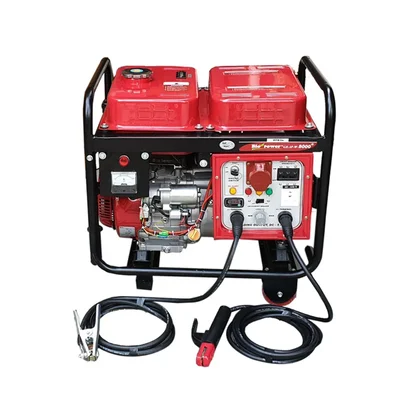

HPM 200 Amp Recoil and Self Start, 3 Phase Petrol Run DC Welder Generator (GE-3P-W8000RS)
SKU : SG-DC-2030
MRP : ₹389850
₹208400
47% OFF!
-
1
+
1553 people have viewed this recently
Get Extra ₹3,126 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
HPM 200 Amp DC Welder Cum Generator Machine
Recoil & Self Start
2.6 mm to 5.0 mm Electrode Diameter
20 V To 35 V Working Voltage
Air-cooled, 4-stroke & 16 HP Engine



Country of origin: India
Specification
  • Brand: HPM
  • Weight (Approx.) : 88 kg
  • Fuel Used : Petrol
  • Fuel Consumption : 0 l/hr
  • Model No. : GE-3P-W8000RS

DC Welding :
  • Maximum Output (Duty Cycle 60%) : 200 Amps.
  • Working Voltage : 20 v to 35 v
  • Open Circuit Voltage : 70 Volt (Maximum)
  • Current Regulation Amps : 40-275
  • Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge
  • Maximum Electrode diameter : 2.6 mm to 5.0 mm

AC Generator :
  • Type : Brush less with Rear Earth Magnet Rotor.
  • AC. Voltage On Eco Mode : 220 Volts ± 10 Volts, Single Phase
  • AC. Voltage On Power Mode (No Load) : 250 Volts ± 5 Volts, Single Phase
  • Rated Current : 20.5 Amps.
  • NFB Amps : 21 Amps.
  • Rated Power : 4500 VA
  • Peak Power (for 1 Minute) : 5000 VA
  • Frequency : 50 to 60 Hz.
  • Class of Insulation : F

Engine :
  • Model : HM192P
  • Type : Single Cylinder Air-cooled; 4-stroke, OHV 25˚ Inclined
  • Maximum Power : 16 HP
  • Bore x Stroke : 92 x 67
  • Displacement : 460 cc
  • Starting System : Recoil Start and Self Start
  • Ignition System : TCI (Transistor Control Ignition)
  • Fuel : Petrol
  • Fuel Tank Capacity : 15.5 Liters
  • Fuel Consumption : 2 Ltr./hr.
  • Continuous Operating Hour : Approx. 8 hr.
  • Lube. Oil Capacity : 1200 ml.
  • Lubricating Oil Consumption : 4.3 gm./Hr.

Panel And Other Standard Features :
  • A.C. Circuit Protector : Yes
  • A C. Pilot Lamp : Yes
  • Engine Oil Protection : Electronic Oil Alert & Indicator
  • Fuel Level Gauge : Yes
  • A.C. Output Sockets : 1 Nos.

Battery Specification :
  • 12 Volt 25 Ah
Description
  • High Power Diesel Portable Arc Welder and Generator Machine Suitable for All types of General Purpose Structural Welding, Light, & Heavy Welding Jobs, up to 5 mm Electrode.
  • This light weight & powerful portable petrol generator Genset With Simple Design & Having Low Maintenance & Long Life, running by Petrol.

Features

 :
  • Working Voltage 20v to 35 v
  • Open Circuit Voltage 75 Volt (Maximum)

Accessories

 :
  • AC Plug : 1Pec.
  • Tool Kit : 1 Set
  • Welder Holder : 1 Set
  • Earthing Clamp with Cable : 1 Set
  • Oil Funnel : 1 No.
  • Owner’s Manual : 1 No.
  • Battery Terminal : 1 Set
  • Battery Tray & Holding Set : 1 Set
