Brand: Toshweld

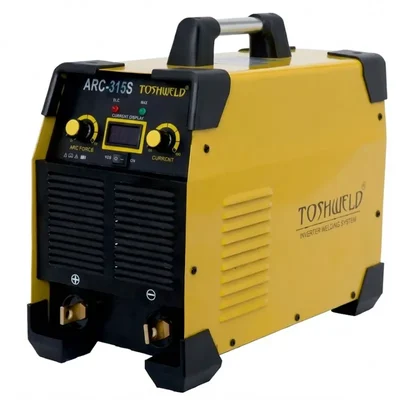

Toshweld 315 Amp Single Phase IGBT Welding Machine With 1 Year Warranty (ARC 315 S)
SKU: TI-T3-51425
Delivery By: Dec 9 - Dec 11
MRP : ₹20603 ₹15849
23% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹15849 (Including GST)
MRP : ₹20603
23% OFF!
Get Extra ₹238 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Input Voltage AC 230V ± 15% (Single Phase)
Output Current Range 30 - 315 Amps
Output Current Range 30 - 315 Amps
Technology IGBT Inverter
1 Year Warranty
Country of origin: China
Specifications
- Brand: Toshweld
- Weight (Approx.) : 9 kg
- Output Current Range : 315 amp
- Technology : IGBT
- Model : ARC 315 S
- Technology : IGBT Inverter
- Input Voltage : AC 230V ± 15% (Single Phase)
- Plate Thickness Capacity : 2.0 mm - 12.0 mm
- Compatible Electrode Size : 2.0 mm - 4.0 mm
- No-Load Voltage : 66 V
- Input Power Capacity : 10.5 KVA
- Rated Input Current : 76.5 A
- Power Factor : 0.73
- Dimensions : 16.5" x 8" x 15.5"
- Warranty : 1 Year
Description
Unlock industrial power with the Toshweld ARC 315 S. This high-performance single-phase inverter delivers a massive 315 Amps using standard 230V power, eliminating the need for industrial 3-phase connections. Capable of welding 12mm thick plates, it is lightweight, portable, and built for heavy-duty fabrication. Includes a 1-year warranty for reliable operation.
Features
:- High Power Single Phase Delivers a massive 315 Amp output using a standard 230V connection allowing heavy welding in locations without 3-phase power
- Advanced IGBT Technology Ensures stable arc performance and high efficiency while minimizing power loss compared to older transformers
- Heavy Duty Capacity Capable of welding thick metal plates up to 12mm and running 4.0mm electrodes continuously
- Compact and Portable Weighing just 9kg this machine is easy to carry to any job site or workshop floor
- Robust Build Quality Designed to withstand harsh environments and long working hours with a high duty cycle
Accessories
:- 1.5 Meter Welding Cable With Holder.
- 1.5 Meter Welding Cable With Earthing Clamp.
Applications
:- Heavy Duty Home Workshops
- Fabrication Shops with Single Phase Power
- Gate and Grill Manufacturing
- Agricultural Machinery Repair
- Construction and Structural Steel Work
Note : 1 Year Warranty From Toshweld Brand.
Usage
:Usage Guidance (How to use) :
- Heavy Wiring Connection Due to high input current ensure the machine is connected to a heavy duty MCB or switchboard capable of handling the load
- Rod Selection Select the correct welding rod size between 2.0mm and 4.0mm based on the thickness of your metal
- Amperage Control Use the control knob to set the precise current needed for your specific welding rod and joint type
- Safety Precautions Always wear a welding helmet and protective clothing to shield against intense UV light and sparks
Maintenance Guidance :
- Dust Removal Clean the internal components monthly using dry compressed air to prevent dust accumulation and overheating
- Connection Inspection Regularly check the input power cable and electrode holder for any signs of wear or loose connections
- Moisture Protection Store the welding machine in a dry and cool location to protect the internal electronic circuits from moisture damage
