Brand:
Imported

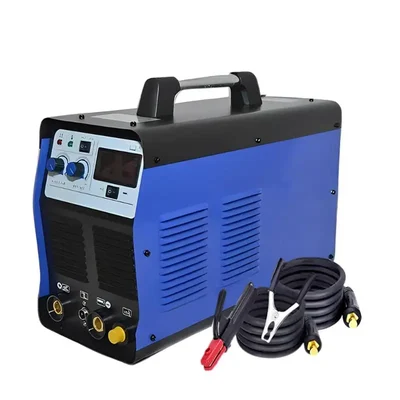

Portable Type TIG/MMA 200 Single Phase Welding Machine With IGBT Technology
SKU:
IT-BB-0207-ss
Regular Price :
₹17000
Offer Price :
₹13990
(Including GST)
Qty:
remove
1
add
article
GET BULK QUOTE
flash_on
BUY NOW
Delivery By: Mar 26 - Mar 30
chat
Chat with us
shopping_cart
ADD TO CART
shopping_cart
ADD TO CART
flash_on
BUY NOW
Easy Returns
Quality Assurance
Trusted Delivery
After Sales Assistance
Short Description
TIG 200 A IGBT Welding Machine
1.6-2.4 mm Tungsten Rod
Single Phase Welding Machine
5 kVA
Input Power Capacity
10-200A
Current Adjust Range
Description
Portable Type TIG/MMA 200 Single Phase Welding Machine With IGBT Technology
Features :
DC TIG and ARC (MMA) dual purpose welding mechanism
Advance Inverter Technology
Auto protection of over-voltage and over-current
Outstanding welding Features in TIG & MMA with any type of electrodes, cellulosic included
Capable to work continuously
Minimal Spatter reduces cleaning time of parts and fixturing and improve arc feature and functioning
Supreme ignition feature, even with long TIG torches
High efficiency, high frequency, low electricity consumption
Light and handy for easy portability
Cut down overall heat input for superior weld feature, without burn-through or warping
Fixed programmed post-flow timer save tungsten tip, workpiece and torch
International Standard IEC 60974-1 & ISO 9001:2015 Certified
Specifications :
Model No. : TIG/MMA 200
Product Type : Welding Machine
Brand : Imported
Base Material : All Types of Carbon Steel, Stainless Steel, Low- alloy Steel
Power Voltage : 1 Ph AC230V+15%
Frequency : 50/60 Hz
Input Current : 12 A
Rated Input Power Capacity : 5 kVA
NO-LOAD VOLTAGE : 65±5 V
Current Adjust Range : 10-200 A
Duty Cycle 60 %
No-Load Power : 40 W
Efficiency : 85 %
Power Factor : 0.93
Insulation Class : H
Shell Protection Class : IP23
Tupgsten Rod Diameter (mm) : 1.6-2.4
Switching Device : IGBT
Overall Dimension : (400 x 1550 x 300) mm
Machine Cooling Mode : Air Cooled
Weight : 8 kg
Recommended areas of use:
General fabrication
Structural fabrication
Field and repair jobs
Gates and grills work
Building & construction
0ffice & school supplies
Electrical & mechanical repair
Light engineering works
Automotive and aircraft industry
Shipbuilding Industry
Note :
Do not use the welder for work other than welding.
Do not touch the live part.
Do not solder in places where skimming, cleaning and spraying are required.
When using, please wear a protective cover or protective clothing.
Accessories :
Welding Cable
Earthing Clamp
Operator's Manual
