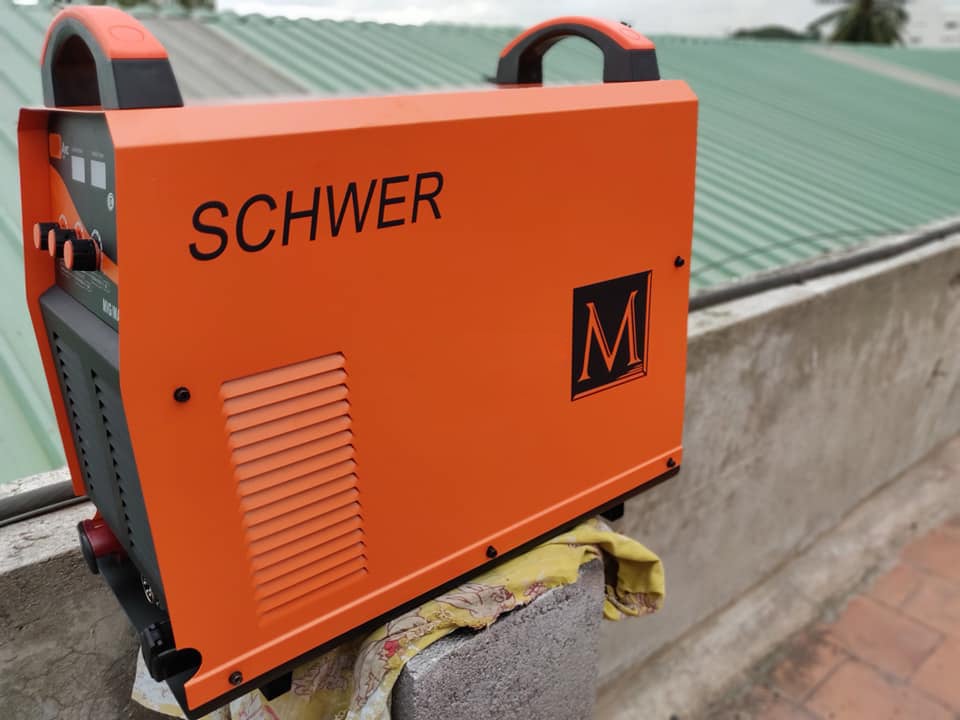

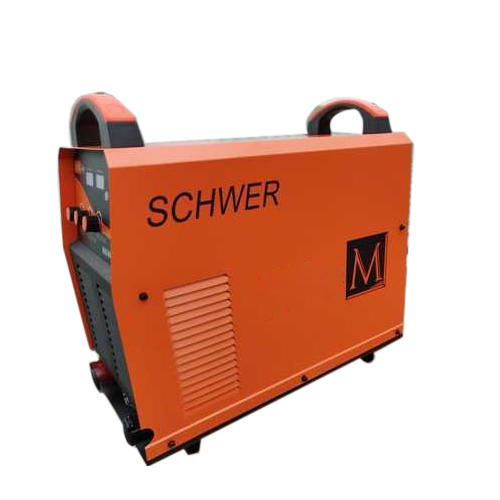

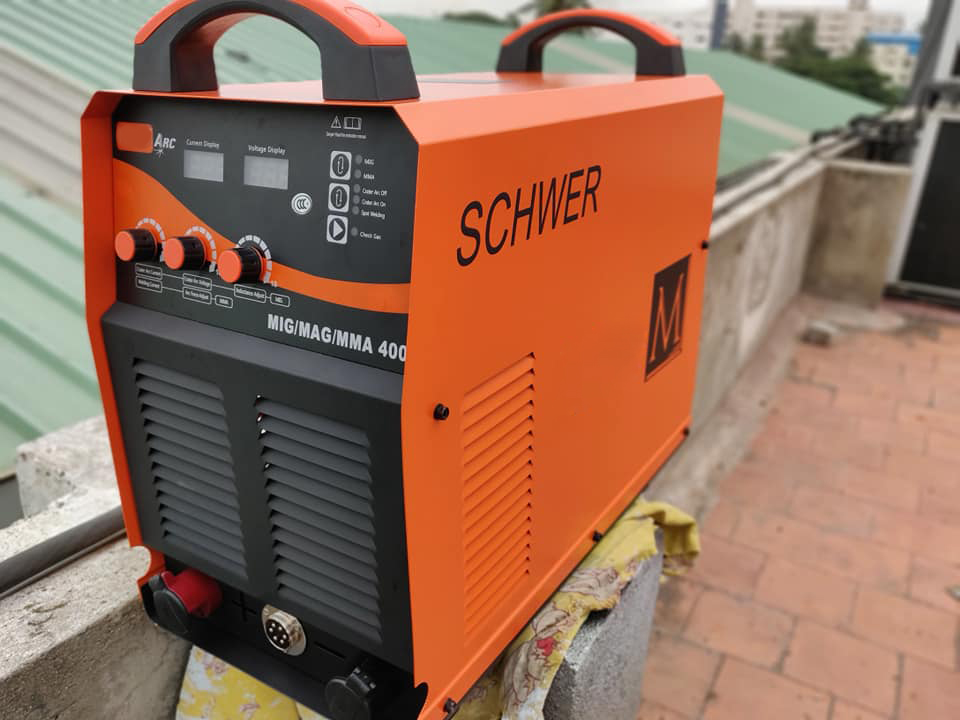

Schwer ARC M Three Phase 400 Amp Welding Machine With 6 Months Warranty

Easy Returns

Quality Assurance

Trusted Delivery

After Sales Assistance

Short Description

Schwer ARC M 400 Amp Welding Machine

6 Months Warranty On PCB Only

With IGBT Technology

Description

Schwer ARC M Three Phase 400 Amp Welding Machine With 6 Months Warranty

Features :

• Multi functional MIG/MAG, ARC
• Soft-arc and strong-arc, adjustable.
• Arc-stability with low spatter.
• Pre-set digital display
• Advanced IGBT module technology

Applications :

• For welding upto 4mm MS rods for Grill Gate Welding.
• Suitable Welding Rod: 1-1.2 mm (MIG), 2.5-4 mm (ARC) continuous

Specification :

• Model No. : Schwer ARC M
• Product Type : Welding machine
• Brand : Schwer
• Electrode Diameter(mm) : 1-4
• Phase : Three Phase
• Rated Input Voltage(V) : AC 415V±15%
• Rated Input Power(KVA) : 14
• Rated Input Current(A) : 22
• Rated Output Voltage(V) : 32
• Wire Feeding Mechanism : External
• Wire Feeding Speed : 3-15 m per mins
• Wire Diameter : 0.8-1.2 mm
• Efficiency : 85%
• Duty Cycle : 60%
• Power Factor : 0.93
• Protection Class : IP21
• Insulation Class : F
• Weight : 33 Kg (Approx)

Accessories:

• 1 x Welding Machine
• 1 x Operator's Manual
• 1 x Working Clamp
• 1 x Earthing Clamp

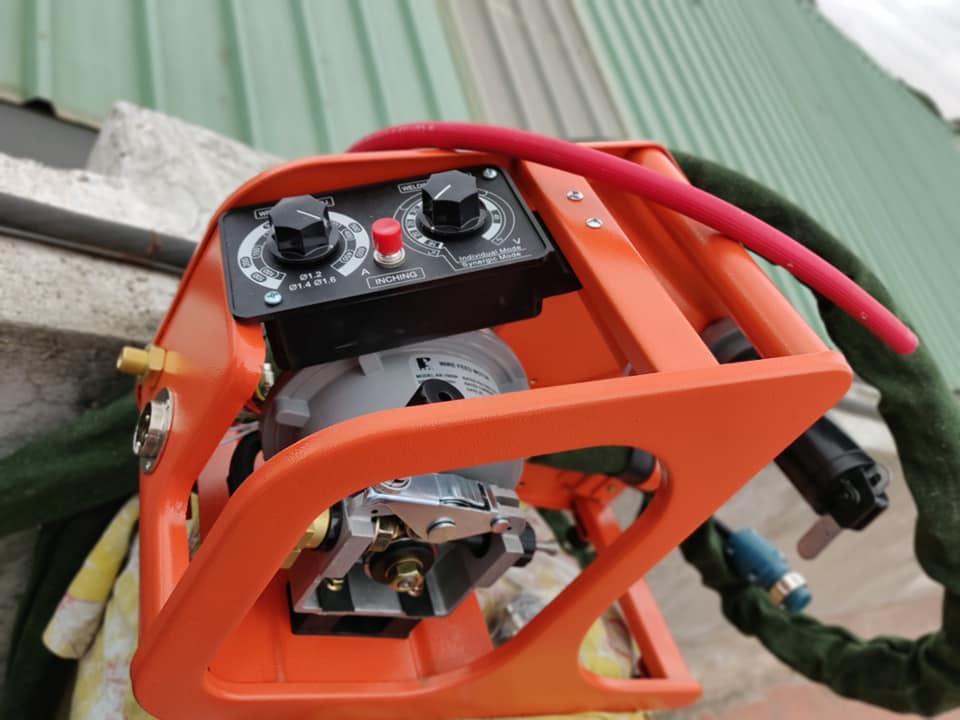

• 1 x Wire Feeder

Note :

• Do not use the welder for work other than welding.
• Do not touch the live part.
• Do not solder in places where skimming, cleaning and spraying are required.
• When using, please wear a protective cover or protective clothing.
