Brand: AWO

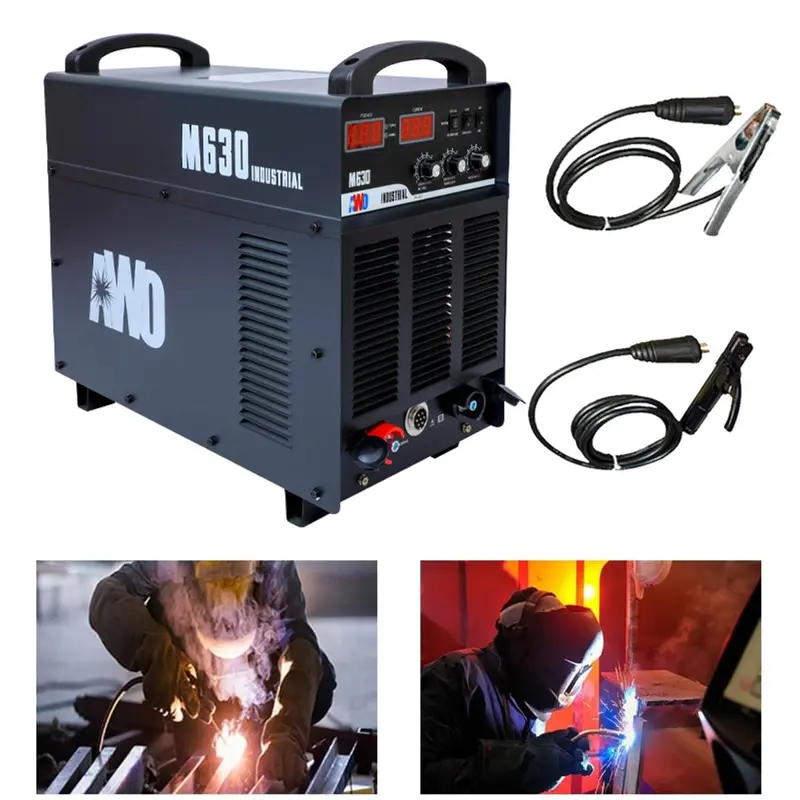

AWO M630 Industrial - Three Phase Mig Welding Machine With 6 Months Warranty
SKU: NI-KO-2013
Delivery By: Dec 11 - Dec 13
MRP : ₹129560 ₹96380
26% OFF!
Delivery By: Dec 11 - Dec 13 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹96380 (Including GST)
MRP : ₹129560
26% OFF!
Get Extra ₹1,446 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
M630 Industrial - Three Phase Mig Welding Machine for 1-1.6 mm Rod
6 Months warranty On PCB Only
IGBT Technology
IP21S Protection Degree
Country of origin: China
Specifications
- Brand: AWO
- Weight (Approx.) : 38 kg
- Output Current Range : 630 amp
- Technology : IGBT
- Model No. : M630 Industrial
- Product Type : Welding machine
- Brand : AWO
- Voltage : 3-415±10%
- Frequency : 50-60Hz
- Rated Input Capacitor (KVA) : 37
- Rated Input Current (A) : 52
- Rated Duty Cycle (%) : 60
- Rated Output Current (A) : 630
- Rated Output Voltage (V) : 44
- Rated No-load Voltage (V) : 83
- Efficiency (%) : 89
- Power Factor (COS) : 0.9
- Output Current Range (A) : 70-630
- Output Voltage Range (V) : 15-49
- Adjustment of Wire Fedding Speed : 1-24
- Arc-ending Current (A) : 70-600
- Arc-ending Voltage (V) : 16-39
- Wire Diameter (mm) : Ø1.0,Ø1.2,Ø1.6
- Cooling Way : Air Cooling
- Insulation Class : F
- Protection Degree : IP21S
- Welding Mode : C02/MAG
- Dimension (LxWxH) : 626x320x560 mm
- Gross Weight : 38 Kg (Approx)
Note :
- Do not use the welder for work other than welding.
- Do not touch the live part.
- Do not solder in places where skimming, cleaning and spraying are required.
- When using, please wear a protective cover or protective clothing.
Description
The AWO M630 Industrial Three Phase MIG Welding Machine delivers a robust output for heavy-duty applications, operating on 3-415V with a rated input of 37 KVA. Featuring advanced IGBT inverter technology, it offers a high duty cycle, adjustable welding parameters, and supports wire diameters from 0.8 to 1.6 mm. Ideal for continuous industrial welding with reliable performance and efficiency
