Brand: Toshweld

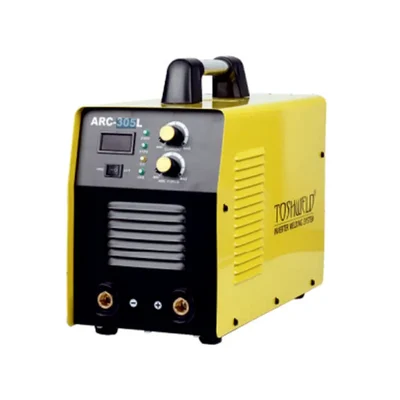

Toshweld 270 Amp Single & Double Phase IGBT Portable Arc Welding Machine, 1 Year Warranty (ARC 305 L)
SKU: TI-T2-51367
Delivery By: Dec 9 - Dec 11
MRP : ₹16768 ₹12899
23% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹12899 (Including GST)
MRP : ₹16768
23% OFF!
Get Extra ₹193 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Input Voltage AC 230V / 415V ± 15% (1/2 Phase)
Output Current Range 10 - 270 AMP
Technology IGBT Inverter
1 Year Warranty
Country of origin: China
Specifications
- Brand: Toshweld
- Weight (Approx.) : 7.5 kg
- Output Current Range : 270 amp
- Technology : IGBT
- Model : ARC 305 L
- Technology : IGBT Inverter
- Input Voltage (V) : AC 230V / 415V ± 15% (1/2 Phase)
- Input Power Capacity (KVA) : 8.5
- No-Load Voltage (V) : 60
- Output Current Range (A) : 10 - 270
- Rated Input Current (A) : 55.8 (230V) / 14.6 (415V)
- Power Factor : 0.73 (230V) / 0.93 (415V)
- Dimension (Inch) : 16 x 7.5 x 13
- Plate Thickness (mm) : 2.0 - 10.0
- Electrode Size (mm) : 2.0 - 4.0
Description
Maximize portability with the Toshweld ARC 305 L. This ultra-light 7.5kg IGBT welder adapts seamlessly to both Single (230V) and Double Phase (415V) power sources. Delivering a robust 270 Amp output, it flawlessly welds steel plates up to 10mm thick. Ideal for on-site repairs and workshops needing flexibility. Backed by a reliable 1-year warranty.
Features
:- Dual Phase Flexibility Operates seamlessly on both single phase (230V) and two phase (415V) power supplies giving you maximum versatility on different job sites.
- High Output Power A powerful current range of 10-270 Amps allows for deep penetration and the ability to weld heavy plates up to 10mm thick.
- Advanced IGBT Technology Ensures a stable arc, reduced spatter, and superior energy efficiency compared to traditional transformer welders.
- Exceptional Portability Despite its heavy-duty performance, it weighs just 7.5 KG making it incredibly easy to transport for field work.
- High Power Efficiency With a power factor of up to 0.93 on 415V, this machine draws less current for the same output saving on electricity costs.
Accessories
:- 1.5 Meter Welding Cable With Holder
- 1.5 Meter Welding Cable With Earthing Clamp
Applications
:- Heavy Industrial Fabrication Ideal for structural steel construction, shipyard welding, and heavy machinery manufacturing.
- Site Construction Perfect for building sites where power supply voltage might vary between single and dual phase.
- Pipeline Maintenance Reliable for welding pipes and pressure vessels requiring deep penetration and strong joints.
- Automotive Repair Suitable for heavy vehicle chassis repair, truck body fabrication, and modification work.
- Farm and Workshop Essential for repairing agricultural equipment, gates, heavy fences, and general metal repairs.
Note : 1 Year Warranty From Toshweld Brand.
Usage
:Usage Guidance :
- Safety First Always wear a certified welding helmet, leather gloves, and protective clothing to shield against UV rays and hot sparks.
- Power Connection Ensure the machine is connected to the correct voltage source (230V or 415V) and the input switch is set accordingly if manual selection is required.
- Electrode Setup Insert the electrode into the holder and connect the earth clamp securely to the workpiece to ensure a good electrical circuit.
- Amperage Adjustment Set the current based on your material thickness, generally using higher amps (100A+) for plates thicker than 3mm.
Maintenance Guidance :
- Air Vent Cleaning Regularly use dry compressed air to blow dust out of the machine's vents to prevent the dual-phase circuitry from overheating.
- Cable Inspection Check the power cord and welding cables frequently for cuts or exposed wires, especially when switching between different voltage sites.
- Dry Storage Keep the machine in a dry, cool place to protect the internal electronic components from moisture and corrosion.
