Brand: Toshweld

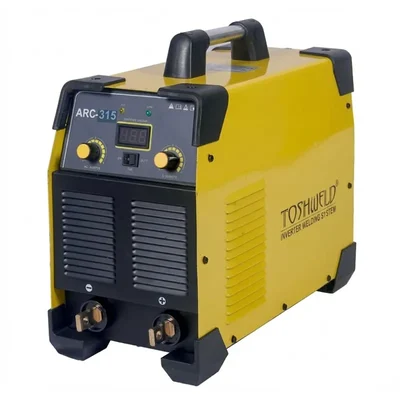

Toshweld 315 AMP 3 Phase IGBT Welding Machine With 1 Year Warranty (ARC 315)
SKU: TI-T3-51403
Delivery By: Dec 9 - Dec 11
MRP : ₹20668 ₹15899
23% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹15899 (Including GST)
MRP : ₹20668
23% OFF!
Get Extra ₹238 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Output Current Range 30 - 315 Amps
Input Voltage AC 415V ± 15% (3 Phase)
Technology IGBT Inverter
Country of origin: China
Specifications
- Brand: Toshweld
- Weight (Approx.) : 9 kg
- Output Current Range : 315 amp
- Technology : IGBT
- Model : ARC 315
- Technology : IGBT Inverter
- Input Voltage : AC 415V ± 15% (3 Phase)
- Plate Thickness Capacity : 2.0 mm - 12.0 mm
- Compatible Electrode Size : 2.0 mm - 4.0 mm
- No-Load Voltage : 66 V
- Input Power Capacity : 10.5 KVA
- Power Factor : 0.93
- Dimensions : 16.5" x 8" x 15.5"
Description
Experience industrial-grade performance with the Toshweld ARC 315. This heavy-duty 3-Phase IGBT inverter welder delivers a powerful 315 Amp output, ensuring deep penetration on thick plates up to 12mm. Weighing only 9kg, it combines portability with efficiency. Ideal for heavy structural fabrication and construction sites, this machine includes a 1-year warranty for reliable, long-term operation.
Features
:- Advanced IGBT Technology Ensures high efficiency, stable arc performance, and reduced energy consumption compared to traditional transformers
- Industrial Power Capable of welding heavy plates up to 12mm thick with ease using 3-phase power
- Portable Design Compact body and lightweight build (9kg) make it easy to transport across large job sites
- Wide Compatibility Works seamlessly with electrode rods ranging from 2.0mm to 4.0mm
- High Duty Cycle Built to withstand long hours of continuous welding in harsh environments
Accessories
:- 1.5 Meter Welding Cable With Holder
- 1.5 Meter Welding Cable With Earthing Clamp
Applications
:- Heavy Steel Structure Fabrication
- Construction Sites and Infrastructure Projects
- Shipyards and Pipeline Welding
- Industrial Machinery Maintenance
- Gate, Grill, and heavy Iron Works
Note : 1 Year Warranty From Toshweld Brand.
Usage
:Usage Guidance ( How to use ) :
- Power Connection Ensure the machine is connected to a 415V 3-Phase industrial power supply with proper earthing
- Rod Selection Select the welding rod size (2.0mm to 4.0mm) based on the thickness of the metal plate
- Current Adjustment Rotate the amperage knob to match the rod size, using higher amps for thicker rods and plates
- Safety Always wear a welding helmet, protective gloves, and safety boots before striking an arc
Maintenance Guidance :
- Dust Removal Use dry compressed air to clean dust from the internal vents monthly to prevent overheating
- Connection Check Regularly inspect the input power cable and electrode holder connections for any looseness or damage
- Moisture Protection Store the machine in a dry, cool place away from water or rain to protect the electronic circuits
