Brand : Generic ( Made in India )

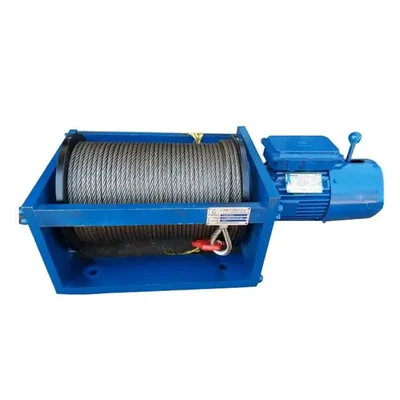

GKS 1 Ton Electric Winch Machine Without Wire Rope, Drum Capacity 100 Meter
SKU : TI-G1-44193
MRP : ₹200000
₹141000
30% OFF!
-
1
+
Get Extra ₹2,115 OFF on Prepaid Orders
Delivery By: Nov 16 - Nov 18
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
GKS 1 Ton Electric Winch Machine Without Wire Rope
Motor High Torque Class F Insulation, 440 Volt, 1440 RPM, 2 HP, 50 HZ, 3 Phase AC, Insulation Squirrel Gauge Motor
Drum Capacity 100 Meters
Speed Of Rope 8 Meters/ Minute
The Winch Is Operated By Reverse Forward Switch And VFD Controller Panel Board






Country of origin: India
Specification
  • Brand: Generic ( Made in India )
  • Power : 3 hp
  • Weight (Approx.) : 140 kg
  • Load Capacity : 1 ton
  • Product Type : Electric Winch Machine
  • Brand : Generic Made In India
  • Base Frame : Fabricated With Rolled Steel Section/ Plates Properly Ribbed Floored With Plate For Working Area With Lifting Lugs Provided
  • Rope Drum : Drum Fabricated With Seamless Pipe Duly Machined With Flange At Both & With Roller Bearing On Both Flange
  • Drum Capacity : 100 Meters
  • Wire Rope : 8 mm
  • Reducer : 1st Stage Planetary Gear Box 3 HP
  • Motor : High Torque Class F Insulation, 440 Volt, 1440 RPM, 2 HP, 50 HZ, 3 Phase AC, Insulation Squirrel Gauge Motor
  • CDF : 40% (Break Motor)
  • Drum & Pinion Shaft : Make Of EN8 Forged Steel Materials
  • Speed Of Rope : 8 Meters/ Minute
  • Coupling : Motor Will Be Mounted And Input Shaft Gear Box
  • Control : The Winch Is Operated By Reverse Forward Switch And VFD Controller Panel Board
  • Painting : Two Coats Of Red Oxide & Enamel Paint
Description
1 Ton Electric Winch Machine is a powerful and reliable lifting and pulling device designed for industrial and construction applications. With a lifting capacity of 1 ton, this electric winch offers efficient and safe handling of heavy loads. It features a robust motor and durable construction to withstand demanding work environments.

Features

 :
  • High lifting capacity of 1 ton for heavy-duty applications
  • Powerful electric motor for efficient and consistent performance
  • Durable and robust construction designed for industrial use
  • Equipped with strong steel cable or wire rope for secure load handling
  • Smooth and controlled lifting and pulling operation

Applications

 :
  • Lifting and lowering heavy loads in construction sites
  • Pulling and positioning materials in manufacturing and assembly
  • Hoisting equipment and machinery in workshops and factories
  • Vehicle recovery and towing operations
  • Loading and unloading cargo in warehouses and shipping yards
