Brand: ALGO

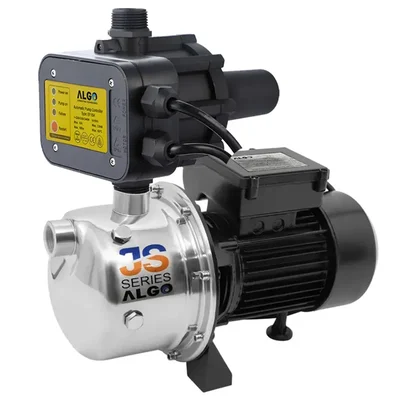

Algo 1.5Hp Single Phase SS Pressure Booster Pump With Automatic Pump Controller, 40m Head (JS Series) - 1 Year Warranty
SKU: TI-A1-32015
Estimated Delivery By: Oct 30 - Nov 1
MRP : ₹13799 ₹10051
27% OFF!
Estimated Delivery By: Oct 30 - Nov 1 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹10051 (Including GST)
MRP : ₹13799
27% OFF!
Get Extra ₹151 OFF on Prepaid Orders
QTY :
-
1
+
Short Description

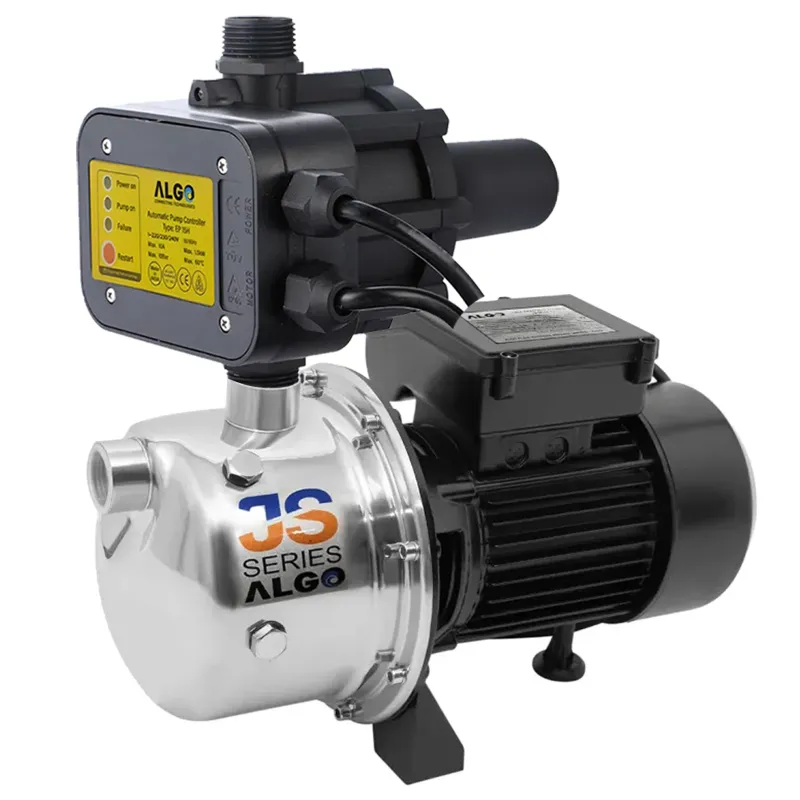

Algo 1.5Hp Water Pressure Booster Pump with Pump Controller
62 LPM Max. Flow, 40m Max. Head
10 Bar Max. Working Pressure
1 Year Warranty
Country of origin: India
Specifications
- Brand: ALGO

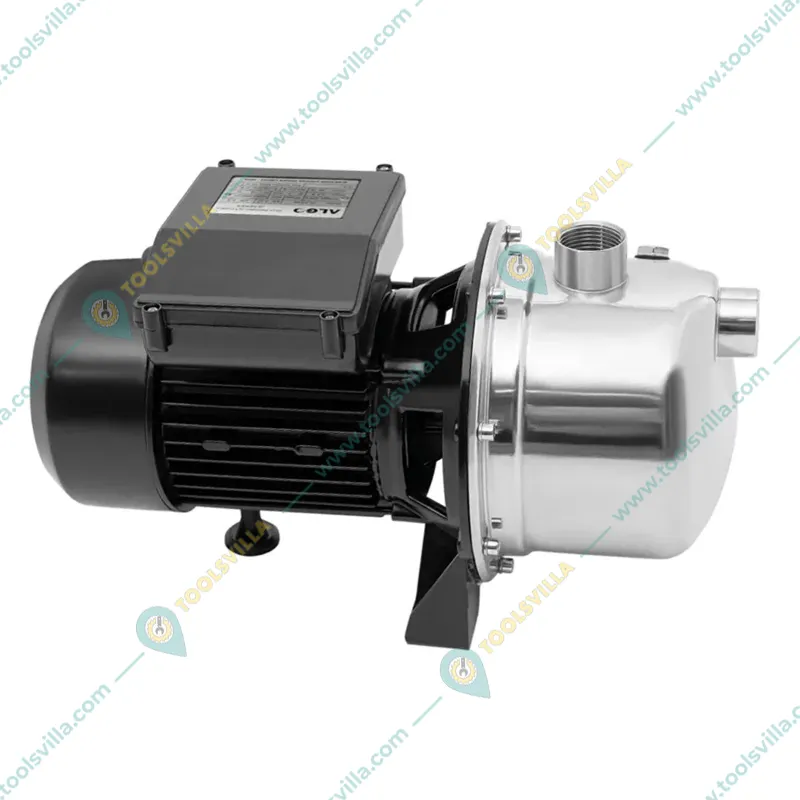

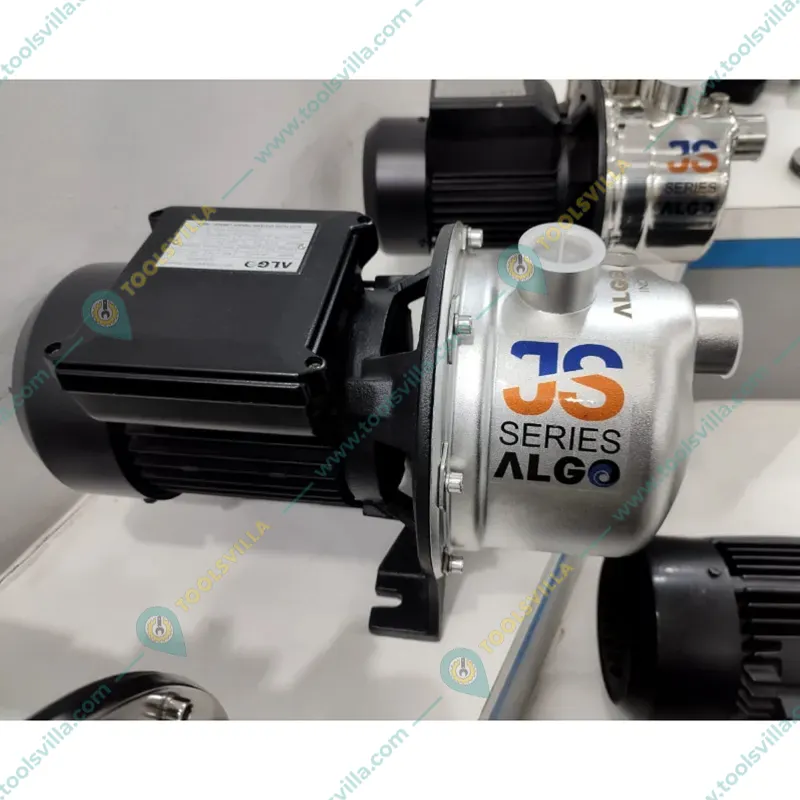

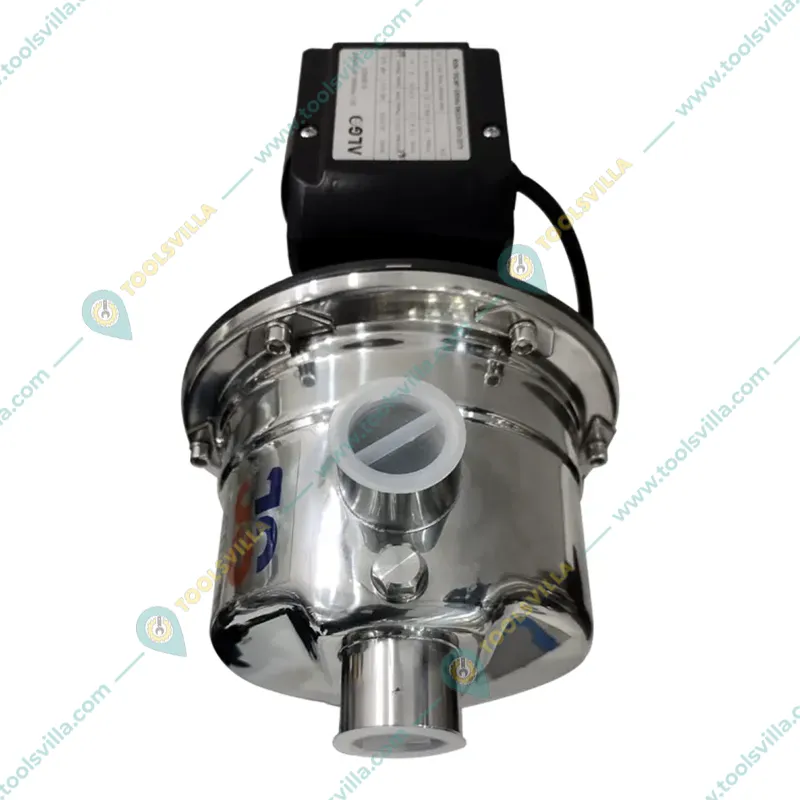

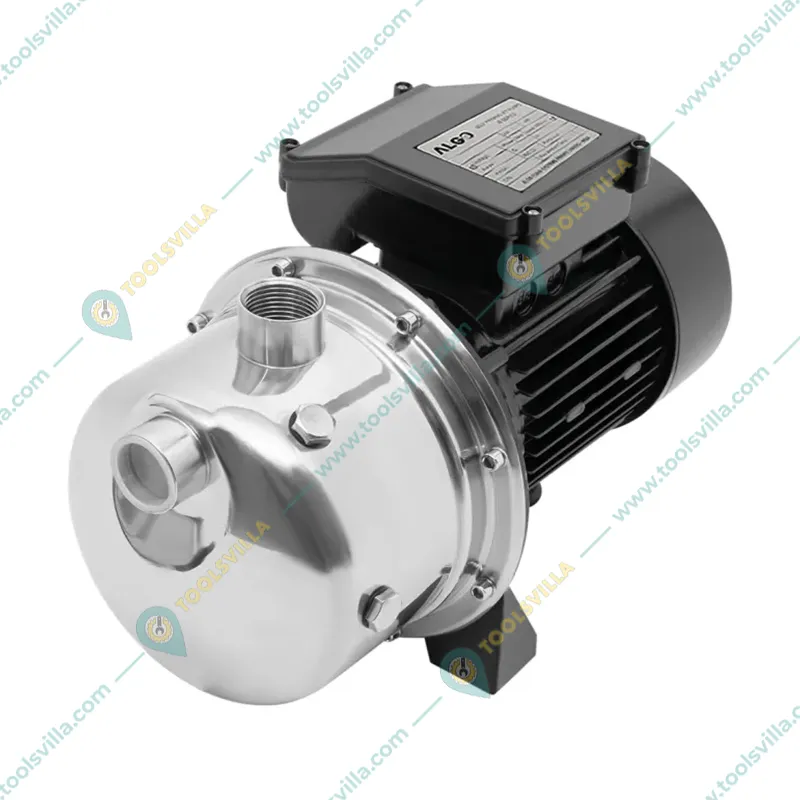

Pump Specification :
- Series : JS Series
- Product Type : Water Pressure Booster Pump
- Wattage : 1.1 kW
- Rated Voltage : 230 Volt, 50 Hz (PSC)
- Electricity Connection : Single Phase
- Head Range : 15 to 40 Meter (49 to 131 Feet)
- Discharge Range : 62 to 14 LPM (3720 to 840 LPH)
- Pump Size (Suction x Delivery) : 25 x 25 mm (1" x 1")
- Duty : S1 (Continuous)
- Protection : IP 54
- Insulation Class : B
- Speed : 2900 RPM
- Max. Liquid Temperature : 50°C
- Max. Ambient Temperature : 40°C
- Suction Lift : Upto 7m
- Mounting Type : Floor Standing

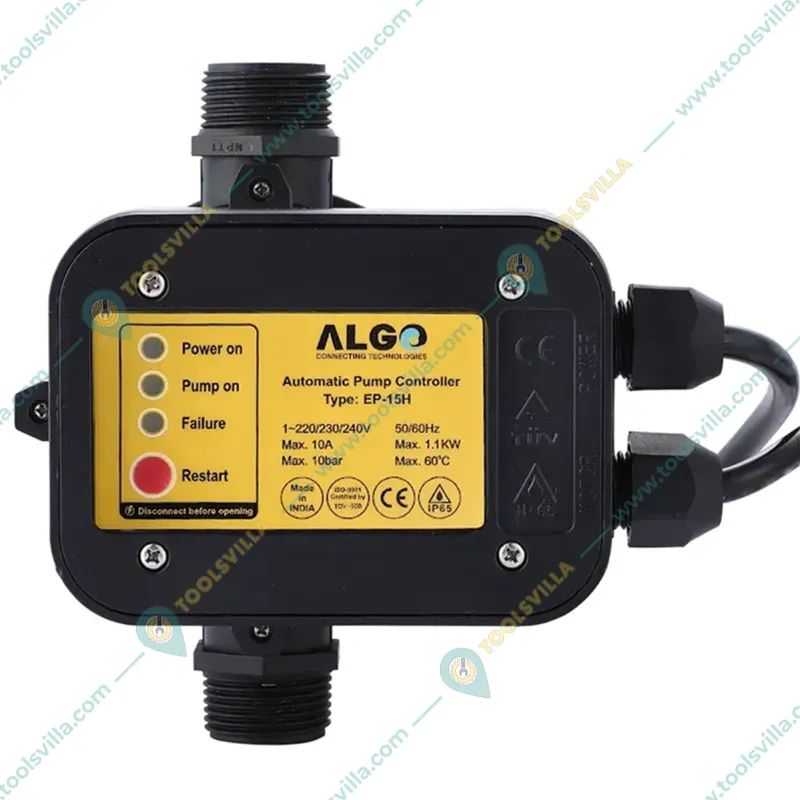

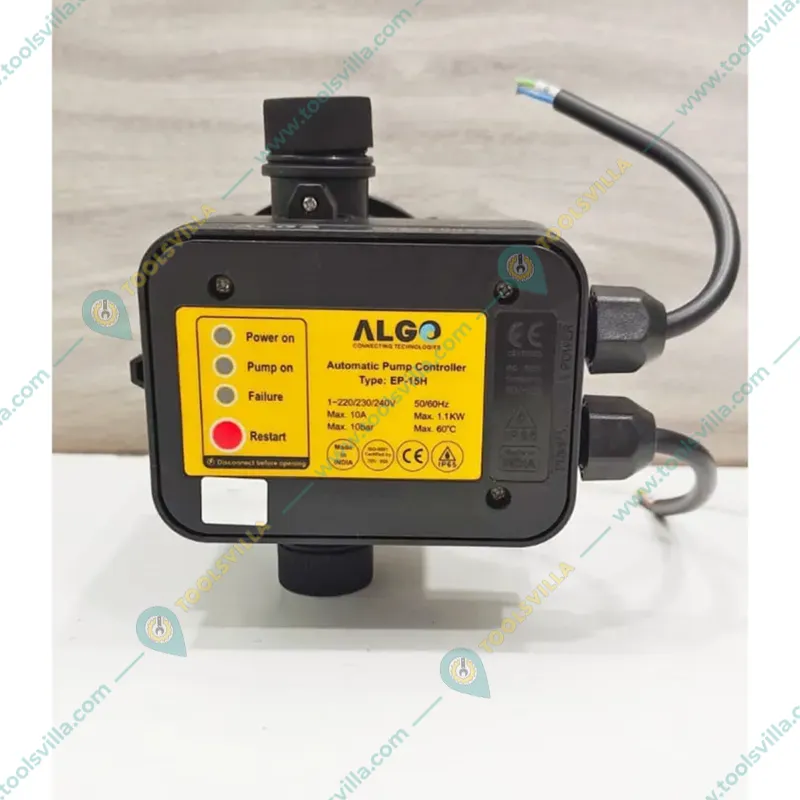

Pump Controller Specification :
- Model No. : EP 15H
- Product Name : Pump Controller
- Brand : Algo
- Power Source : Electric
- Rated Voltage : 1~220/230/240 Volt
- Electricity connection : Single phase
- Frequency : 50/60 Hz
- Max. Using Current : 10 Amp.
- Max. Power : 1.1 kW
- Max. Working Pressure : 10 Bar
- Connecting Thread : R1"
- Protecting Rating : IP65
- Max. Working Temperature : 60°C
Pump Material Of Construction :
- Pump Casing : SS 304
- Motor Body : Aluminium
- Impeller : SS 304
- Shaft : SS 304
- Mechanical Seal : Carbon Ceramic
- Bearing : Double Shielded Ball Bearing
Description
The Algo JS Series SS booster pumps are meticulously engineered to provide optimal hydraulic efficiency and excellent suction lift capabilities. These pumps are manufactured using advanced machinery and technology, along with high-quality raw materials, seals, and ball bearings to guarantee durability. The dynamically balanced rotor ensures smooth and quiet operation. Additionally, pumps come equipped with a thermal overload protector to prevent overheating. The high operational efficiency of these pumps leads to reduced power consumption.
Features
:- Energy Efficient Motor With Thermal Overload Protection
- High Strength 304 SS Head For Corrosion Resistance & Abrasion
- Easy Installation
- Lower Noise
Applications
:- Domestic Water Boosting
- Food Processing
- Industrial Water System
- Gardening
- Car Washing
WARRANTY :
- 1 Year Warranty on Pump Manufacturing Defects Only.
- No Warranty on Pump Controller
Shipping Weight & Dimensions
:
Verified Package Dimensions (L X W X H)
:
46 cm X 43.18 cm X 29.2 cm
Package Weight
:
15.10 Kg
