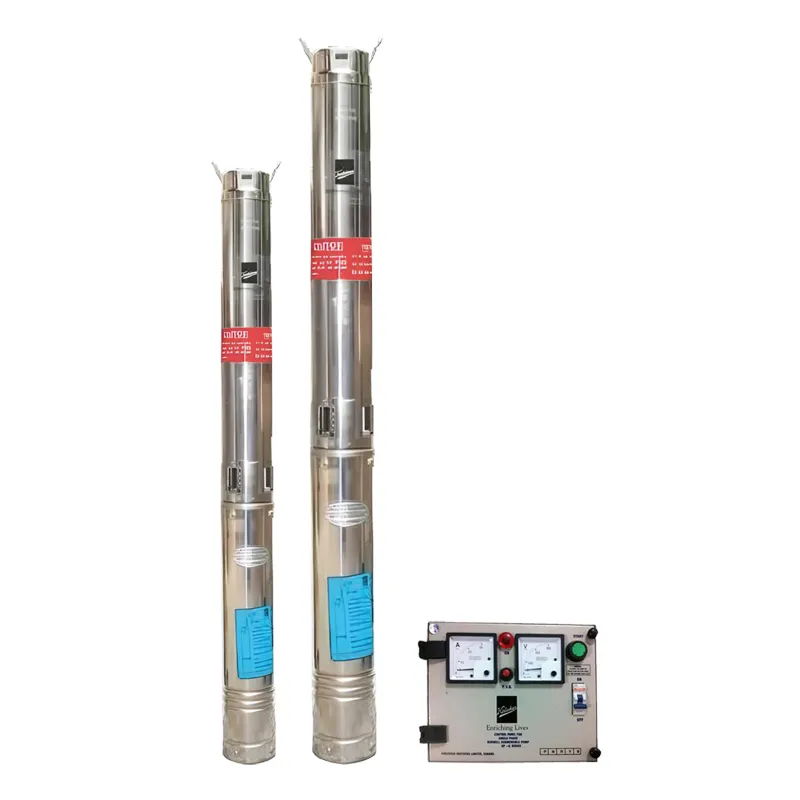

• Model No. : KU4-0814S
• Product Type : Borewell Submersible Pump
• Brand : Kirloskar
• Power Source : Corded Electric

• With Control Panel : Yes
• Wattage : 1.5 kW
• No. of Stages : 14
• Outlet Size : 32 mm
• Power Supply : 220V, 50 Hz, AC Supply
• Electricity Connection : Single Phase
• Cooling Type : Oil Filled
• Current Rating : 12.5 Amp
• Boring Size : 4 Inch (100 mm)
• Max. Head : 82 Meter (269 Feet)
• Max. Discharge Rate : 140 LPM (8400 LPH)
• Winding Material : Copper

Features

• High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost
• savings.
• Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations from 160 to 240 volts and reduces motor burning in low voltage.
• Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
• Design To Prevent Overloading : Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown.
• Lightweight And Compact Design : Constructed with special grade engineering materials, compact designs for ease of handling and installation.
• Flatter Efficiency Curve : Minimum variations in efficiency during entire operating range increases the utility of pump set for variable conditions.
• Suitable For Horizontal Applications : Motor with ball bearings are suitable for horizontal installation for water transfer at high heads in residential complex.

Accessories

• Control Panel

Applications

• Domestic and community water supply
• Rural water supply
• Gardening and small farm irrigation
• Construction site
• Water supplies for high rise building
• Ground water supply to water works.
