Brand: Generic ( Made in India )

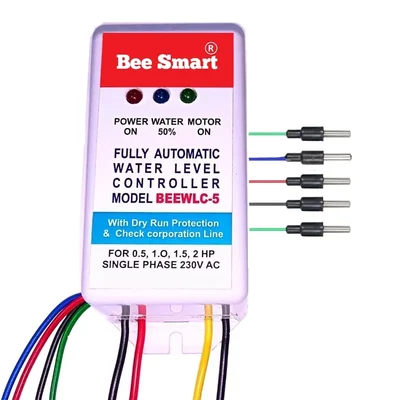

Bee Smart Fully Auto Water Level Controller with Dry Run Protection & Check Corporation Line (BEEWLC-5)- 1 Year Warranty
SKU: TI-BS-51062
Delivery By: Dec 9 - Dec 11
MRP : ₹1600 ₹679
58% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹679 (Including GST)
MRP : ₹1600
58% OFF!
Get Extra ₹10 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Bee Smart Fully Automatic Water Level Controller with sensors (BEEWLC-5)
If a water source is not available for any reason, the motor switches off within 60-80 seconds.
Suitable for upto 0.5 to 1.5Hp Single Phase Pumps
1 Year Warranty
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Weight (Approx.) : 350 gm
- Model No : BEEWLC-5
- Product Name : Water Level Controller
- Supply Voltage : 190-250 V AC
- Electricity Connection : Single Phase
- Suitable For : Up to 0.5 / 1.0/ 1.5 HP Monoblock Pumps, Submersible Pumps, MCB type Submersible Starters without starting capacitor, DOL Starter, Star Delta Starter for home , office, collage, restaurants etc .
- Dimensions (LxWxH) : 13 x 9 x 6 Cm
Installation :
- Connect the input and output as shown in the user manual. Among the three sensors, place the green sensor at the bottom level, the black sensor at the middle level, and the red sensor at the top level of the tank. Secure the 4mm screw before the motor with the blue and green wires in the section pipe. For an underground tank, hang the green and blue sensors inside the underground tank as per the diagram.
Note : Use only a non-conductive metal for the section pipe.
Working :
- When the water level in the tank drops below the middle sensor, the motor automatically switches on and the tank begins filling. Once the water reaches the middle level, the 50% water LED lights up. When the water reaches the top sensor, the motor automatically switches off. The LED indicators show power on, 50% water, and motor running status. If the water source is unavailable, the motor switches off within 60-80 seconds and restarts automatically when water becomes available or power is restored. This system prevents water wastage, requires no manual intervention, and saves water, energy, and protects the motor with dry run protection.
Description
Bee Smart Fully Automatic Water Level Controller BEEWLC-5, 0-1.5 HP motor compatible, 30A relay, mono block and sump pumps, 190-250V AC supply, single-phase connection, durable SS316 sensors, easy installation, automatic motor ON/OFF based on water level, dry run protection, LED indicators for power, water level, and motor status, suitable for home, office, college, and restaurants, energy and water-saving, maintenance-free, compact size.
Accessories
:- Full Automatic Water level controller
- SS sensors
WARRANTY :
- 1 Year Replacement Warranty
Warranty Terms :
- Accidental Damages Are not covered in the warranty
- For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
- You have to send the product to the seller's warehouse.
- Buyer has to bear the courier charges of both sides for sending the product.
